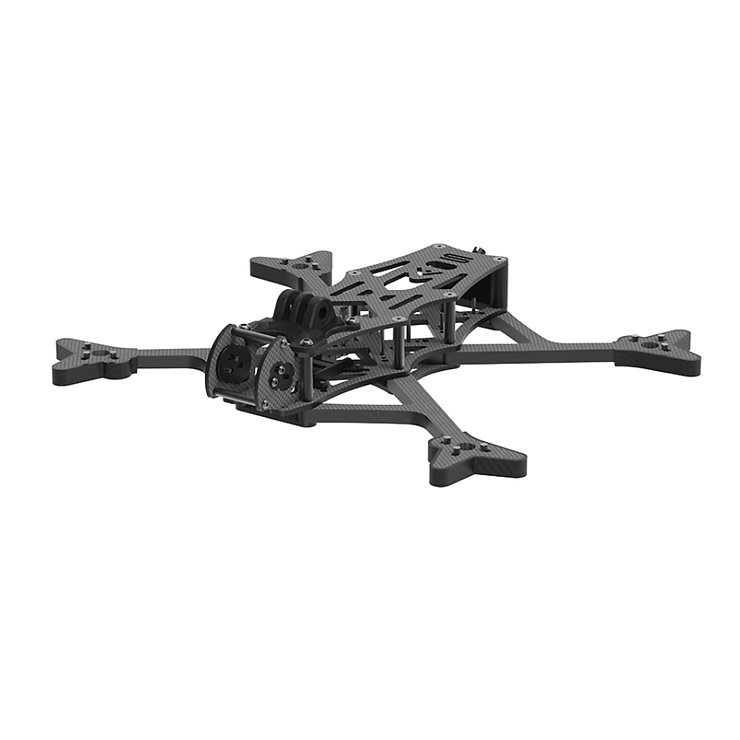

Name: iFlight AOS 5.5 EVO V1.2 Frame 5.5 inch Kit
Brand: iFlight
SKU: IFL-FF14408
Price: 104.90 EUR
Availability: InStock

iFlight AOS 5.5 EVO V1.2 Frame 5.5 inch Kit

Product description

When using heavier action cameras like the GoPro Hero 9/10/11, the added thrust and efficiency of a 5.5" prop makes a huge difference. The AOS 5.5 Evo has been updated to be compatible with the new DJI O3 Air Unit as well as existing electronics stack mounts of 30.5x30.5mm, 25.5x25.5mm and 20x20mm. The camera cage and arms have been reinforced to improve durability. As with all AOS frames, exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilization.

Features

Weight: Approx. 123 g including all hardware
Designed for up to 5.5-inch propellers
Wheelbase of 235 mm
6 mm arms
Stack mounts of 30.5x30.5 mm, 25.5x25.5 mm or 20x20 mm front, center and rear.
Fits perfectly with DJI O3 Air Unit, Caddx Vista or HDZero Freestyle VTX
Compatible with 20 mm (DJI and O3 camera) and 19 mm (micro cameras) cameras
Motor mounts from 16x16 to 19x19 (2207, 2208, 2506 recommended)
Includes standoffs, frames, screws, TPU feet and antenna mounts

Specifications

Product name: AOS 5.5 EVO V1.2 Frame Kit
Wheelbase: 237 mm
Frame dimensions:18814532.5 mm
Arm thickness: 6 mm
Thickness of upper plate: 2 mm
Thickness of lower plate: 2,5 mm
Thickness of upper plate: 2 mm
Motor mounting: 1616mm / 1919mm
VTX mounting:2020/Φ2 mm / 25.525.5/Φ2 mm
Weight: 194 grams

scope of delivery	1 x AOS 5.5 EVO V1.2 Frame Kit 1 x TPU-Teile 4 x Motor-Drahtschutzrohr 1 x Schraubensatz 2 x Batterieband
Order number	IFL-FF14408
EAN	4260691179614
Manufacturer	iFlight
