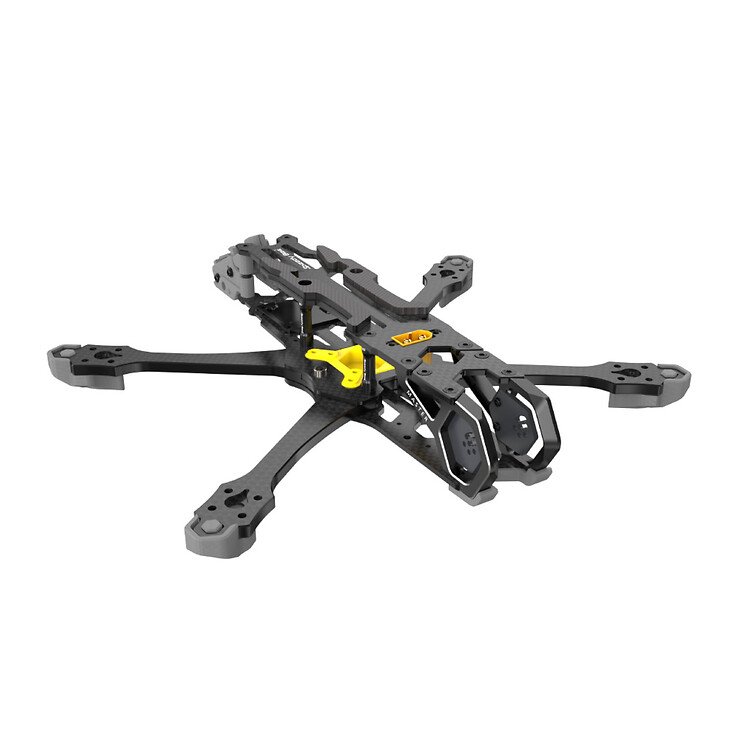

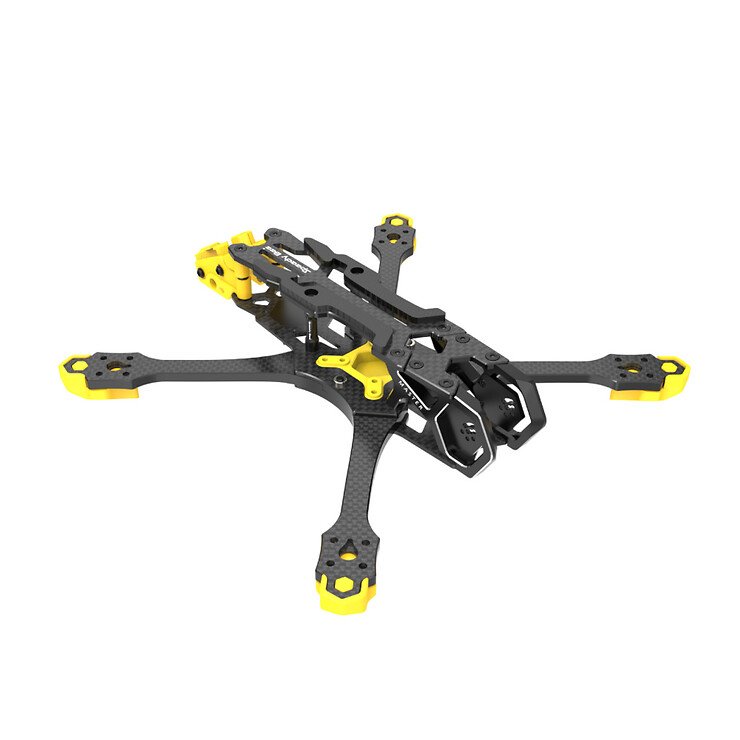

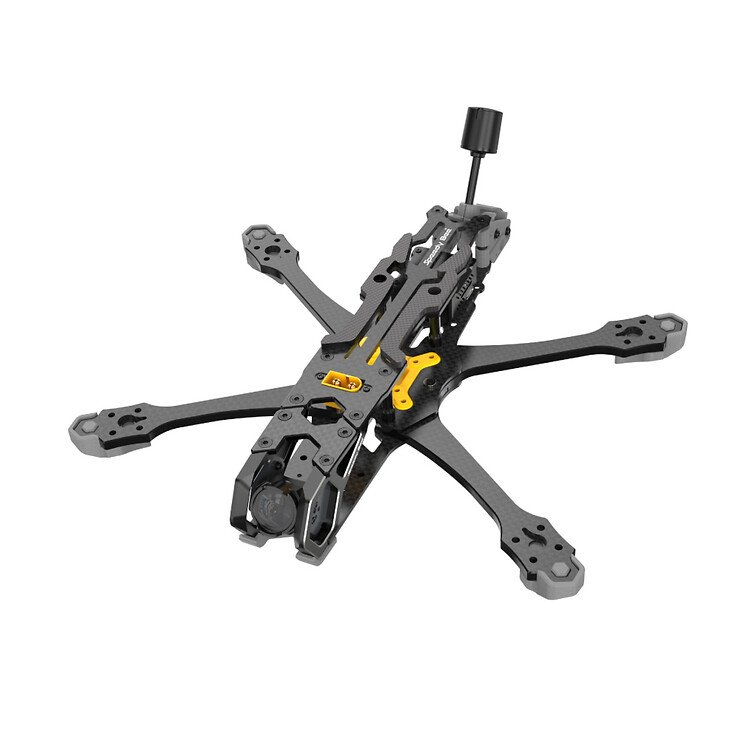

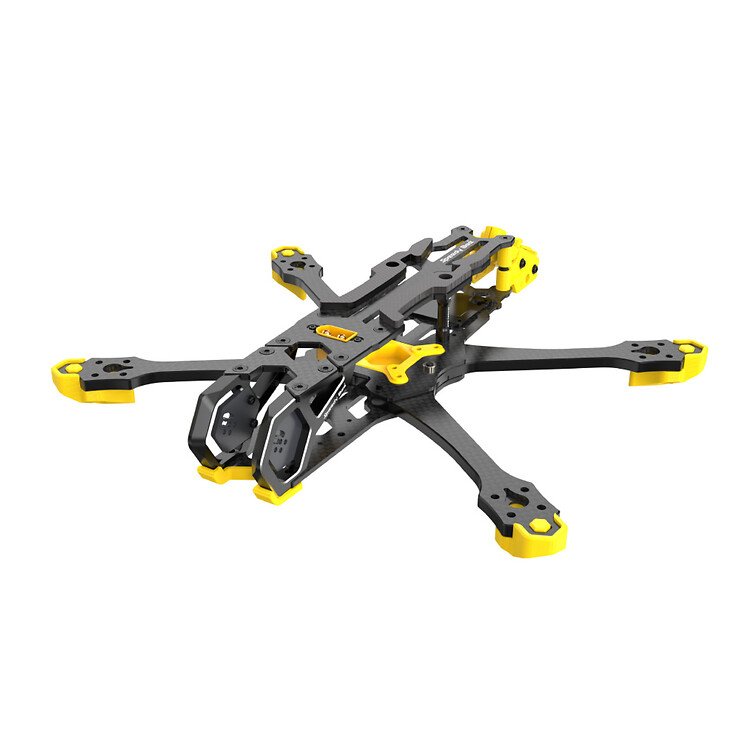

SpeedyBee Master 5 HD FPV Freestyle Frame Kit V1

Product description

Discover the Master 5 series - the ultimate freestyle drone frame solution for professional FPV pilots! The Master 5 is designed with an innovative anti-shock stack to minimize vibrations from the motors to the gyroscope, maximizing flight stability. The unique quick-release system for the arms ensures easy installation and maintenance, while the honeycomb-shaped CNC aluminum alloy on the drone head not only provides additional stability but also a stylish design. Thanks to the H-FOV 130 section, you can enjoy a wider field of view and flexible camera mounting options without vignetting.

The optional honeycomb aluminum cooling module optimizes operating temperature and improves stability for DJI FPV and high-power analog VTX systems. Ideal for those who want to get the most out of their freestyle performance!

Product specifications:

Product line: Master 5 series (freestyle optimized)
Anti-shock locking structure: Reduces motor vibrations, stabilizes the environment for the flight control gyroscope
Arms with quick-release structure: On average only 1.5 screws per arm for quick assembly/disassembly
Drone head: Honeycomb CNC aluminum alloy for better stability and aesthetic design
Field of view: H-FOV 130 range for extended field of view
Removable camera mounting plate: Customizable, supports various camera mounting options to avoid vignetting
Cooling module (optional): Honeycomb aluminum construction for stabilization at high operating temperatures
Compatibility: Supports DJI FPV and high-power analog VTX

scope of delivery	1x Ein Satz Rahmen 1x CNC-Kopfteil Links & Rechts 1x Kamera-Seitenplatte Links & Rechts 1x Anti-Kurzschluss-Stack-Modul (Transparent und Gelb) 4x 22mm M3 Knopfkopf-Innensechskantschraube 2x 23mm Aluminium-Abstandshalter 2x 23mm Stufen-Aluminium-Abstandshalter 2x 0,5mm Polster für Kameraseitenplatte 1x Allgemeines Kühlpad 1x 0,5mm Schutzpolster für Boden 1x 2,5mm Batterie-Anti-Rutsch-Pad Links & Rechts 4x 3D-gedruckter Arm-Schutzfuß 1x 4mm DJI O3 Air Unit Antennenbasis (20) 1x 3D-gedruckte SMA-Antennenbasis (20) 1x 3D-gedruckte Basis (18) 1x 3D-gedruckte GPS-Basis (18) 1x 3D-gedruckter Kopfschutz 4x 4mm M3 lila Aluminium-Rändelmutter 4x M3 Pressmutter 5x 6mm M2 selbstbohrende Schraube 5x 12mm M3 Flachkopf-Innensechskantschraube 5x 11mm M3 Flachkopf-Innensechskantschraube 6x 6mm M3 Flachkopf-Innensechskantschraube 4x 5mm M3 Flachkopf-Innensechskantschraube 4x 4mm M3 Flachkopf-Innensechskantschraube 6x 3mm M3 Senkkopf-Innensechskantschraube 2x 250mm Gurt 2x 3mm 2,4G Antennenrohr
Order number	RUN-MASTER5-HD-Y-O3170-OLD
EAN	4262453767312
Manufacturer	Speedy Bee
