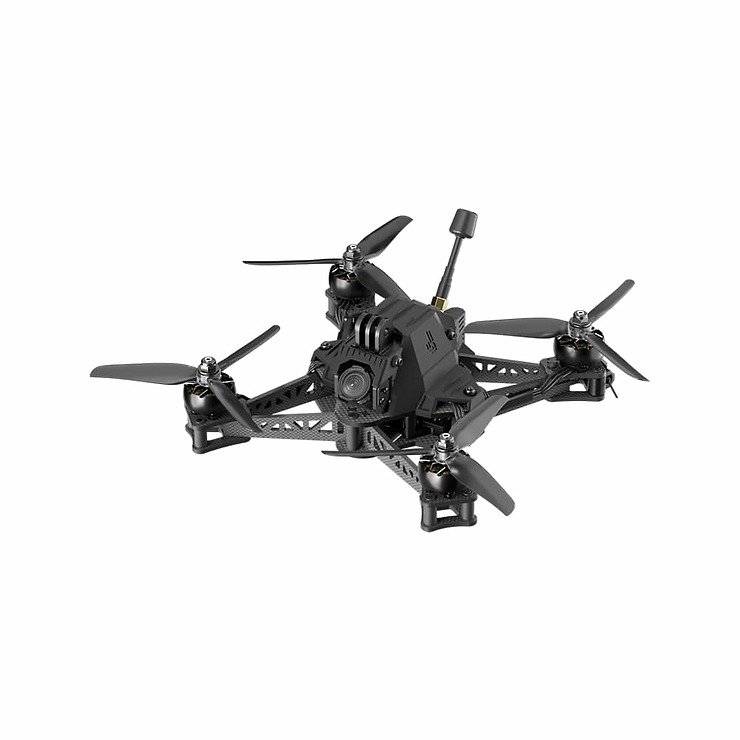

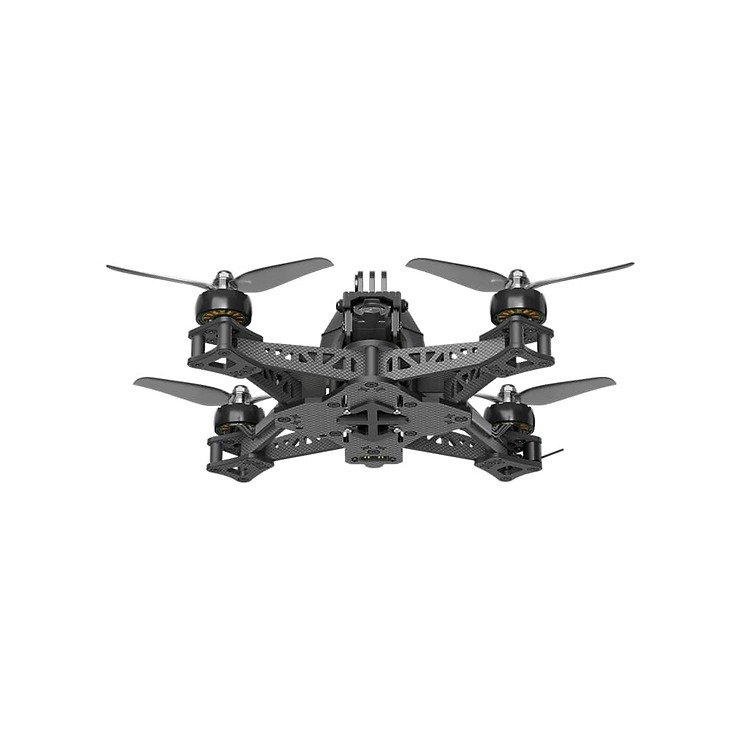

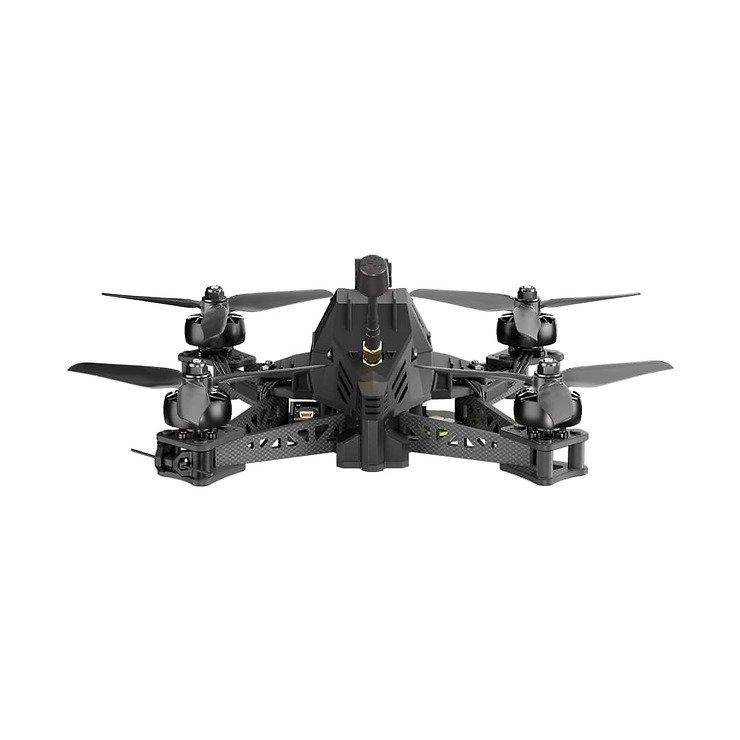

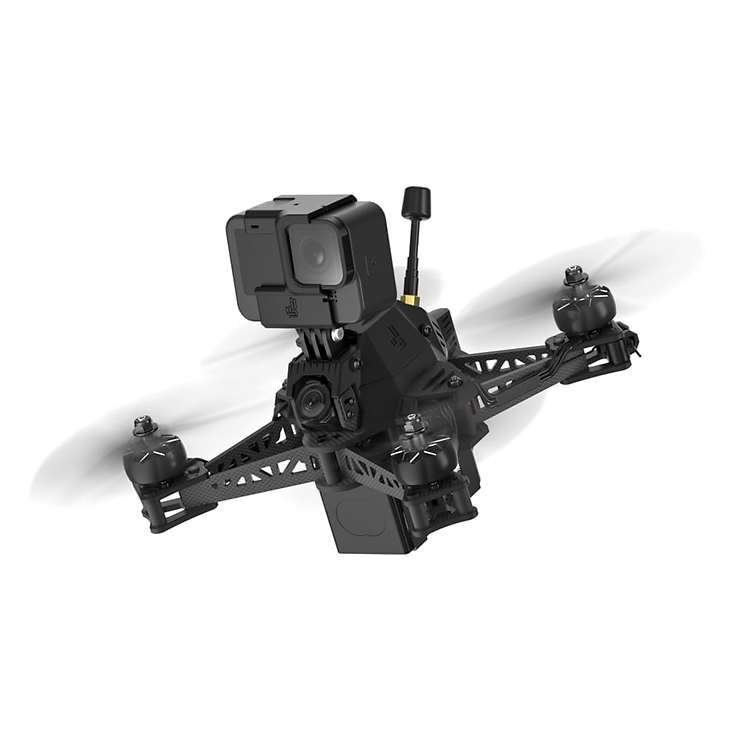

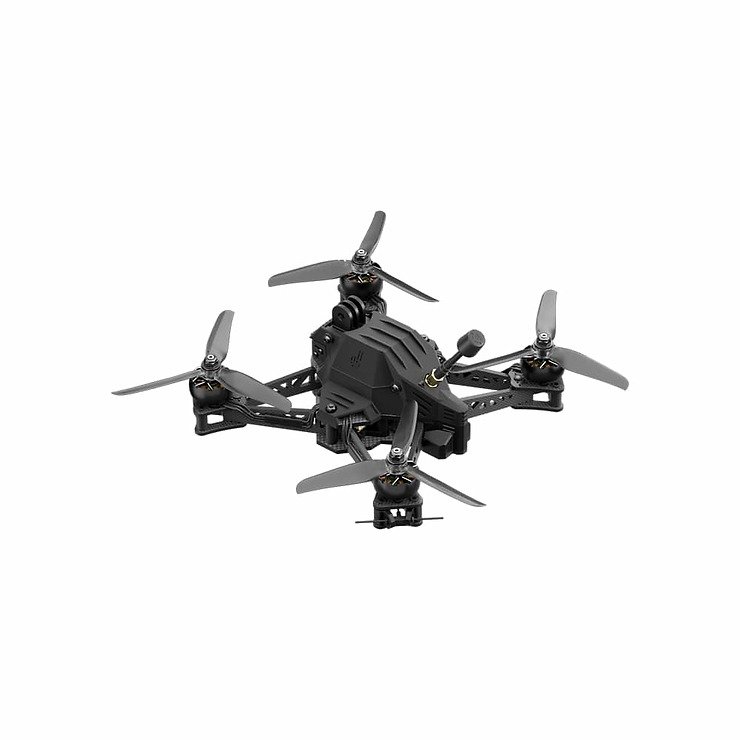

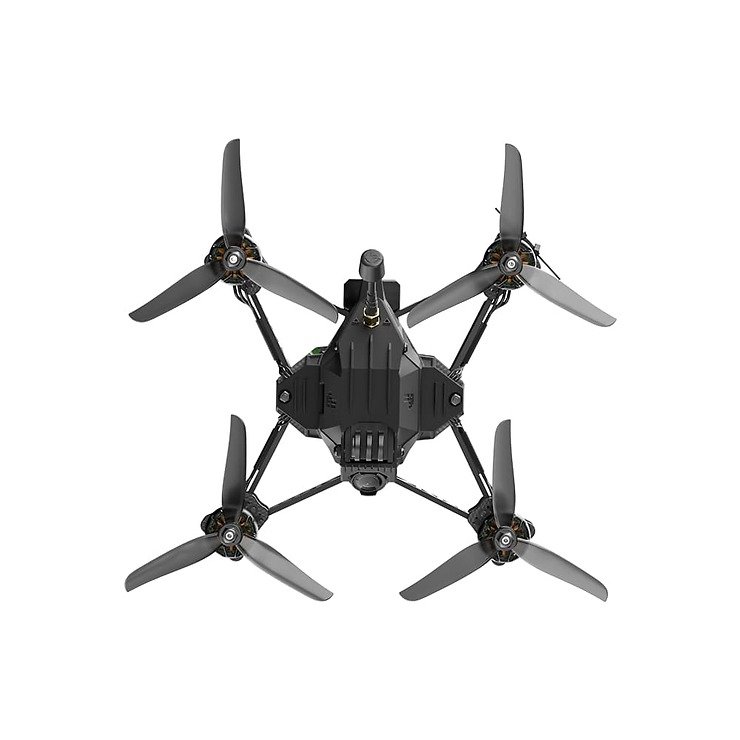

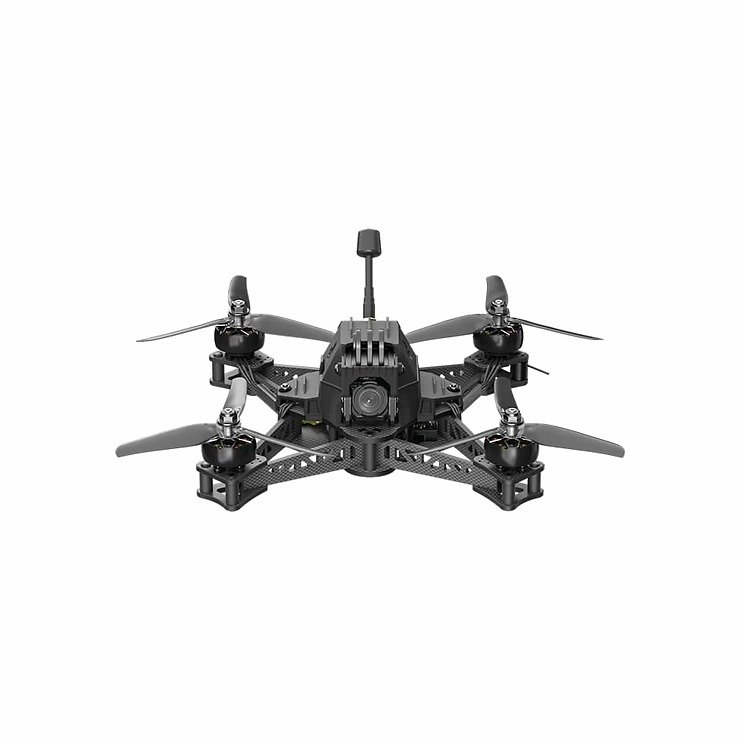

iFlight Afterburner 5 DJI O3 6S HD PNP

iFlight Afterburner 5 DJI O3 6S HD PNP

Product description

The Afterburner drone, developed by 2RAW in collaboration with iFlight, is no ordinary freestyle quadrocopter. This masterpiece was designed for professional pilots who use their FPV drones for cinematic work. The focus here is on aerodynamics and balance.

Features

• The Aero Shell controls the airflow around the body and inside the drone. As speed increases, the Aero Shell acts as an air divider, preventing air from hitting the flat top plate and protecting the electronics from dirt and moisture.
• The star design in combination with the trusses ensures high rigidity combined with low weight and perfect balance for buttery smooth filming.
• Inspired by FPV racers, we have opted for a bottom-mount battery. This minimizes drag and allows a clear view of the Gopro mount and GPS sensor. Afterburner was developed for professional use in film and video.
• In 16:9 mode, the Gopro has no propeller in view from 5 degrees to 60 degrees.
• Up to 10 km video transmission range, low latency, 155° ultra-wide angle for impressive shots. A first-class solution for FPV filming.

Specifications

• Product name: Afterburner 5 O3 6S HD
• FC: BLITZ F7 Flight Controller
• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
• Video transmission: DJI O3 Air Unit
• Frame geometry: X-Frame
• Frame: 210 mm wheelbase
• Motor: XING2 2207 1750KV motors
• Propeller: GEMFAN 5.1X3.6X3 propeller
• Weight: 472±7g (without battery)
• Dimensions (L×W×H): 148x148x64mm
• Max. Max.speed: 160 km/h
• Maximum take-off altitude: 7000 m
• Max. Hover time: Approx. 11 minutes with 6S Lipo 1400mAh battery without load
• Operating temperature range: -10° to 40° C
• Antennas: Single antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

DJI O3 Air Unit video transmission

• Communication bandwidth: Max. 40 MHz
• Field of view (single screen): 155°
• Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
• End-to-end latency:
  • With DJI FPV Goggles V2: 810p/120fps Video transmission quality: latency is less than 28 ms.
  • With DJI Goggles 2: 1080p/100fps video transmission quality: Latency is as low as 30 ms.
• Max. Video transmission bit rate: 50 Mbps
• Max. Video transmission range: 2 km (CE)
• Operating temperature range: -10º to 40º C (14° to 104° F)
• Power supply: 7.4-26.4 V
