Product description

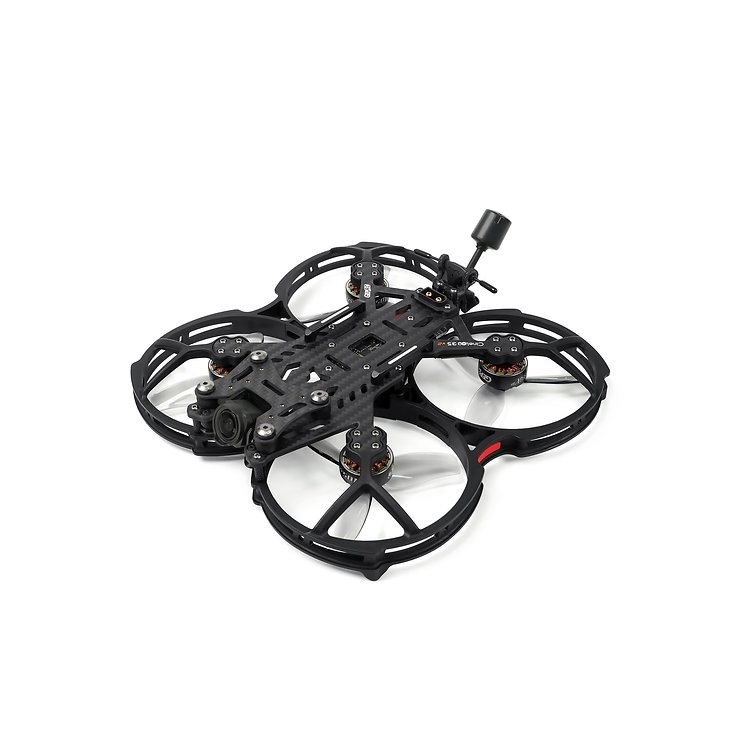

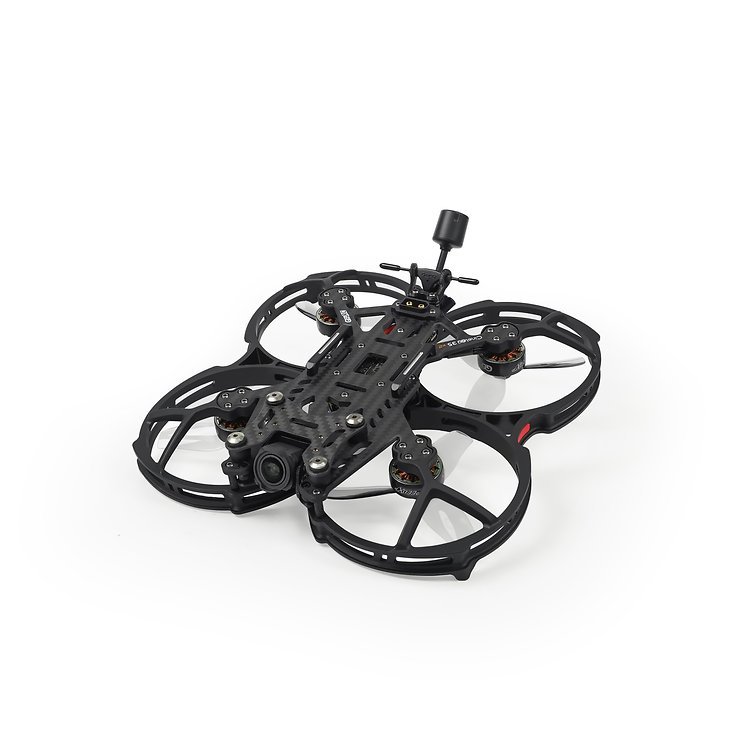

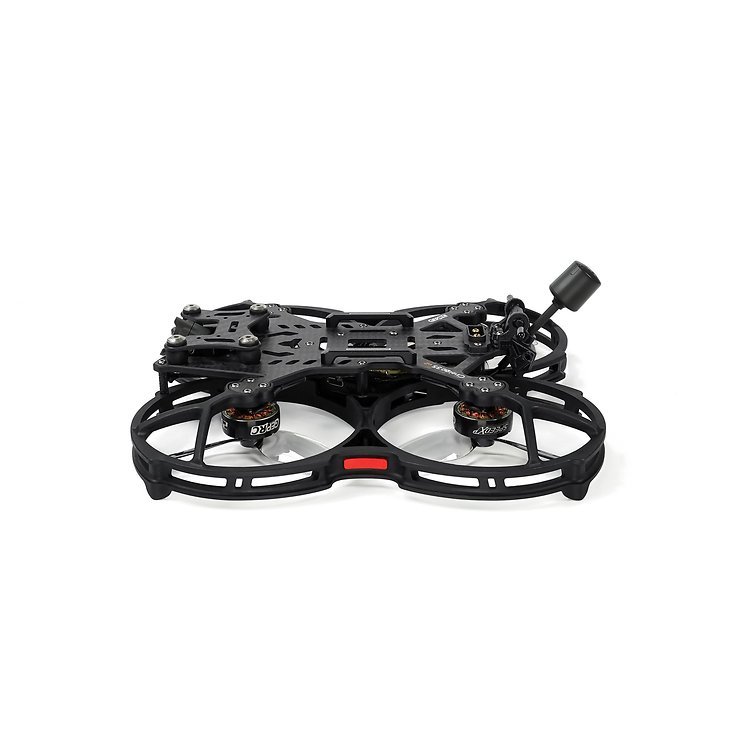

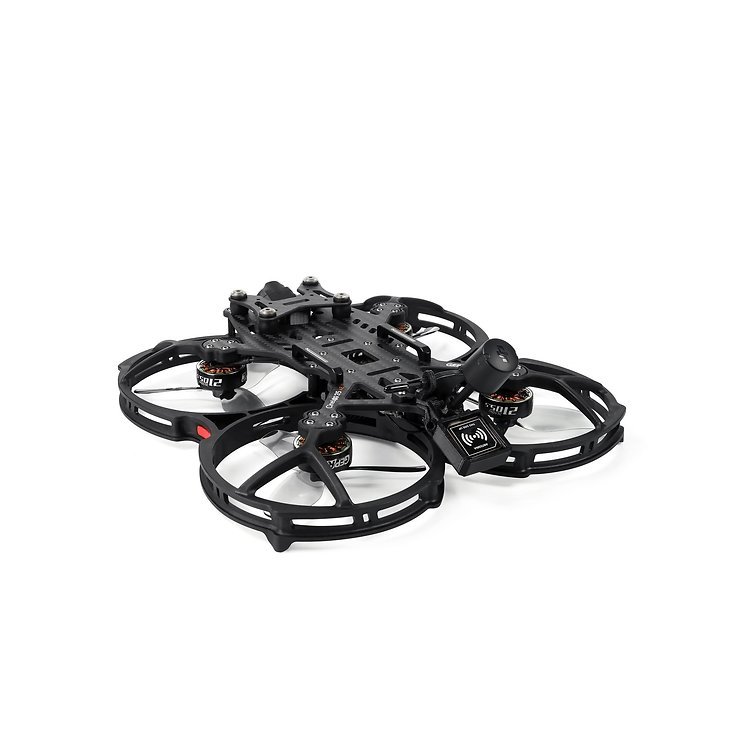

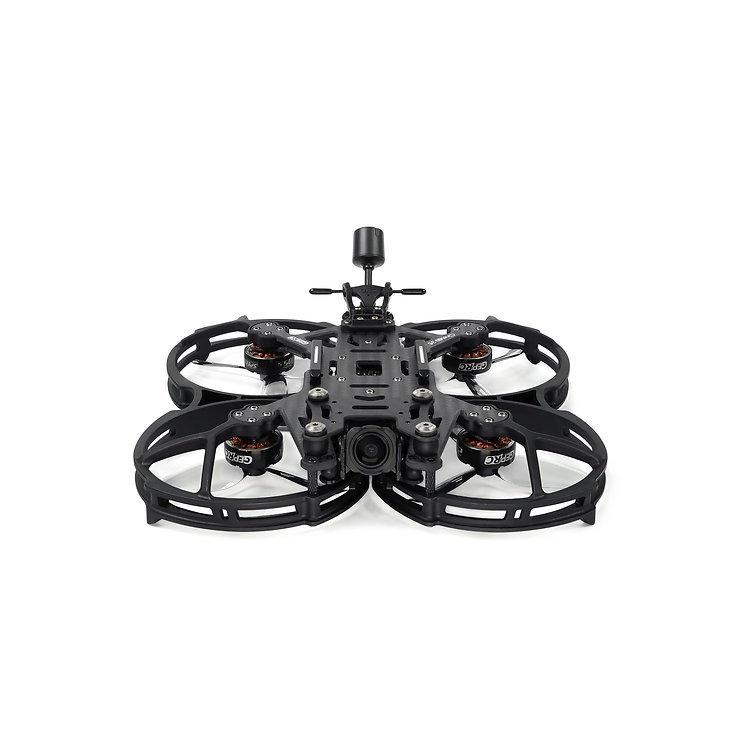

GEPRC Cinelog 35 V2 DJI O3 Drone FPV PNP

Experience the GEPRC team's combined experience and advancement in all areas: The CineLog35 V2 is finally on the market and offers even better performance.

The CineLog35 V2 version is integrated with the O3 VTX. 7075 aluminum columns have been added to the main carbon plate and splash guard frame of the CineLog35 V2 version to strengthen the structure.

The battery mounting is done with the help of cable ties and 7075 aluminum parts. The XT60E1-M power connector is integrated into the carbon plate for convenient use. The protective frame for the O3 Air Unit has a memory card and USB port for easy data readout.

Equipped with the F722-45A AIO and the new SPEEDX2 2105.5-2650KV (6S), the CineLog35 V2 offers more power and a more aggressive and responsive system.

This is a 3.5-inch HD FPV cinematic drone that combines cinematic, freestyle, recreational and safety to meet users' needs in flying and filming various scenes indoors and outdoors. Users' satisfied voices are our motivation to keep moving forward.

Specifications:

• Model: Cinelog35 V2 HD O3
• Frame: GEP-CL35 V2
• Wheelbase: 142 mm
• Gimbal plate: 2,0 mm
• Upper plate: 3,5 mm
• Lower plate: 1,5 mm
• FC System: GEP-F722-45A AIO V2
• MCU: STM32F722RET6
• Gyro: ICM 42688-P
• OSD: Betaflight OSD with AT7456E chip
• ESC: 8Bit 45A
• VTX: O3 Air Unit
• Camera: O3
• Antenna: 5,8G and 2,4G
• Motor: SPEEDX2 2105.5-2650KV (6S)
• Propeller: HQProp D-T90MM
• GPS: without
• Weight of the CineLog35 V2 HD O3 TBSNanoRX: 285.8g
• Receiver: PNP
• Recommended battery: LiPo 1050mAh-1300mAh 6S
• Flight time: 5'00" - 8'30"

Scope of delivery:

• 2 x HQProp D-T90MM (2 pairs)
• 2 x M20*250 mm battery straps
• 2 x battery silicone pads
• 1 x set of screws
• 1 x L-shaped screwdriver (1.5 mm)
• 1 x L-shaped screwdriver (2 mm)
• 1 x L-shaped screwdriver (3 mm)
• 1 x M5 wrench
• 1 x plastic tweezers
• 1 x antenna holder (pair)
• 1 x keychain
• 1 x GP camera mount
• 1 x Naked GP camera mount
• 1 x antenna holder

The screw package contains:

• 2 x M2*18 countersunk screws
• 2 x round head screws with pad M2*5.5
• 1 x round head screw M2*12
• 2 x M2 insert nut
• 4 x round head screws M2*8
• 4 x round head screws M2*7
• 4 x M2*6 round-head screws
• 2 x round head screws M2,5*6
• 2 x hexagon head screws M1.6*8
• 1 x flange nut M5
• 2 x Pressrivet nuts (brass color) M2*1.9-OD4.9
• 2 x iron nuts M2
• 2 x iron nuts M2
• 2 x camera gimbal vibration damping rubbers
