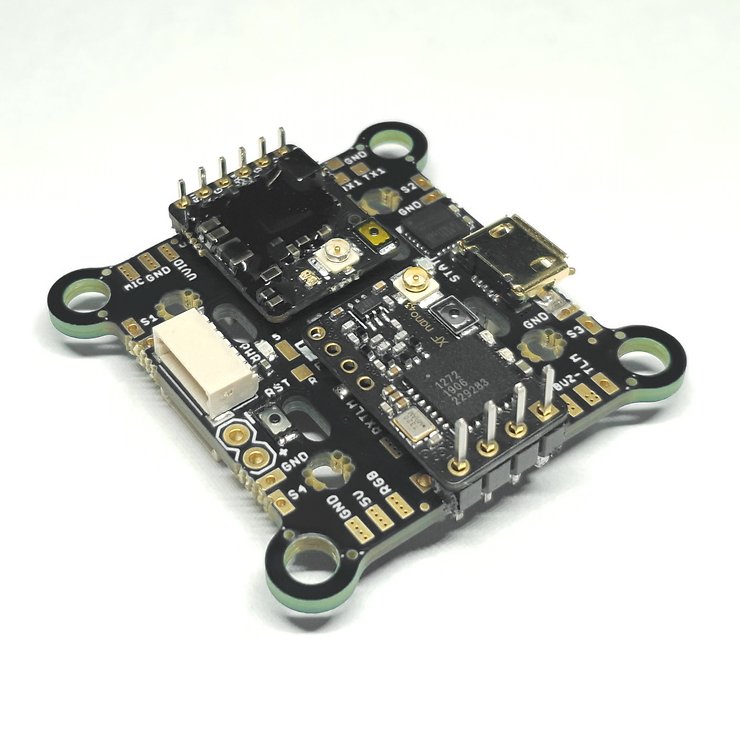

FETtec Kiss FC FPV Flight Controller

FETtec Kiss FC FPV Flight Controller

Product description

FETtec Kiss FC FPV Flight Controller

As usual high-end quality from KISS FETtec.
The Flight Controller comes with the KISS V2 version and dimensions that can be installed everywhere. 35x30mm with 20x20 hole spacing.

Technical data

• Processor F7 [DShot 2400, Oneshot, Onewire]
• space provided for RX and VTX
• build-in real pit mode for unify nano
• separate onboard 5V BEC for VTX
• 4 signal and gnd pads, so accessible at every corner
• 8 pin connector for solderless FETtec ESC connection

Dimensions

• 35x30mm outer dimensions, without corners 30x30
• 20x20mm hole spacing (with breakable holes from M2 to M3)
• and 30x30mm hole spacing can be used (breakable corners for 30x30mm)

Firmware:

• KISS FC V2
