BETAFPV 85X Tiny Whoop Brushless XT30 HD DVR PNP

10% discount
The article is no longer available.
  • 211,00 € *
  • 234,90 €
PayPal Logo
Payment by installments possible via Paypal, for further information please click here.

BETAFPV 85X Tiny Whoop Brushless XT30 HD DVR PNP

Product description

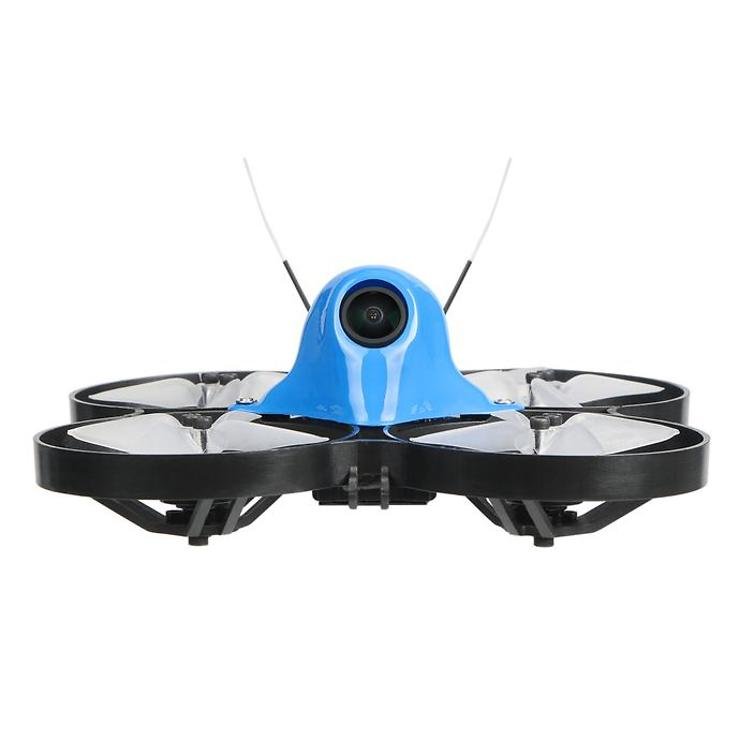

BETAFPV 85X Tiny Whoop Brushless XT30 Model HD DVR and PNP

Beta85X takes the new era of brushless whoop drones to a higher level. With the new power system you can also fly real acro with a HD DVR camera in AC mode or freestyle. With the powerful STM32F405 processor FC cards and the tuned firmware of Betaflight Ominibus 3.5.0. This is also the first 2 "BNF drone BETAFPV 85X that comes with BLHeli-32 ESC. The robust and lightweight frame is tailor-made for the Beta85X. You get a ready drone immediately, no soldering or tinkering necessary. Tailor-made lightest 1105 6000KV engines with cable connectors. Just plug in and fly. EMAX Avan 2"propellers are a good combination for the Beta85X drone. 450mAh 3S high performance battery is recommended as standard. However, the pilot could also use his own batteries with battery belt. Optional and affordable.

Technical data:

  • Weight: 58g (without battery)
  • Motors: 1105 6000KV with plug
  • Propeller: EMAX Avan 2 "4-Blades props
  • FPV camera: Adjusted EOS2 camera (for FPV version)
  • HD DVR Camera: CADDX Turtle V2 (for HD DVR version)
  • Receiver option: Frsky XM + / DSMX / Futaba S-FHSS / Flysky / TBS Crossfire
  • Frame: Beta85X Frame
  • 5.8G VTX antenna: Custom Lumenier AXII antenna
  • Battery strap fits micro 2S-3S battery

Flight Controller:

  • CPU: STM32F405
  • Six-Axis: MPU6000
  • Size: 26 mm x 26 mm, Whoop mounting pattern
  • Firmware version: Betaflight OMNIBUSF4SD (OBSD) 3.5.0
  • OSD: Built-in BetaFlight-OSD (STM32 controls OSD chip via SPI in DMA mode)
  • For VTX radio control a Smart Audio connector is available

ESC:

  • MCU: STM32F051
  • Supports Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
  • Input voltage: 2S-3S Lipo
  • Cotinue current: 16A
  • Peak current: 25A
  • BLHELI_32 Firmware target: BETAFPV-16A-32bit

FPV camera and VTX:

  • Output power: 0 mW, 25 mW
  • A Smart Audio function is included for radio control
  • Antenna: Custom Lumenier AXII antenna
  • Frequency: 5.8 GHz 6 bands 48 channels, with race band: 5362 ~ 5945 MHz
  • Adapted EOS2 FPV camera
  • Television system: NTSC
  • Field of view: 100-120 degrees with 1/3 lens

HD DVR VERSION
The main purpose of the Beta85X drone is a filmic whoop drone. Many FPV pilots rework their Beta75X into a HD whoop drone - they add a HD DVR camera to the Beta75X drone to get high definition and beautiful flight shots and videos. Inspired by this, we want to provide a BNF hoop drone with an HD DVR camera as standard, so the pilot doesn't have to assemble it by hand and also gets more power for the acro mode.
In the Beta85X design, the part of the HD-DVR is independent of the drone. You can mount or remove the HD-DVR part very easily. As standard the drone is equipped with a CADDX Turtle V2 HD camera.

The canopy for the FPV HD DVR cameras is 3D printing with SLA compatible with Runcam Split Mini 2. You can also print yourself if required.

BLHELI_32 ESC
This controller was used for 4S batteries. But during extreme tests it could only withstand 2-3S voltage input. DO NOT FLY WITH 4S BATTERY. MUST BE OBSERVED.

BLHeli_32 is the third generation of ESC firmware after BLHeli and BLHeli_S, written for ESCs using 32-bit MCU. With the increase in processing power, BLHeli_32 would allow faster input signals with lower latency and higher update rates, e.g. Dshot1200!
Beta85X is the first 2-inch BNF drone that supports BLHeli_32 ESC. With the other parts of the propulsion system, the EMAX Avan 2-inch propellers and the 1105 6000KV engines, they offer the highest flight experience.

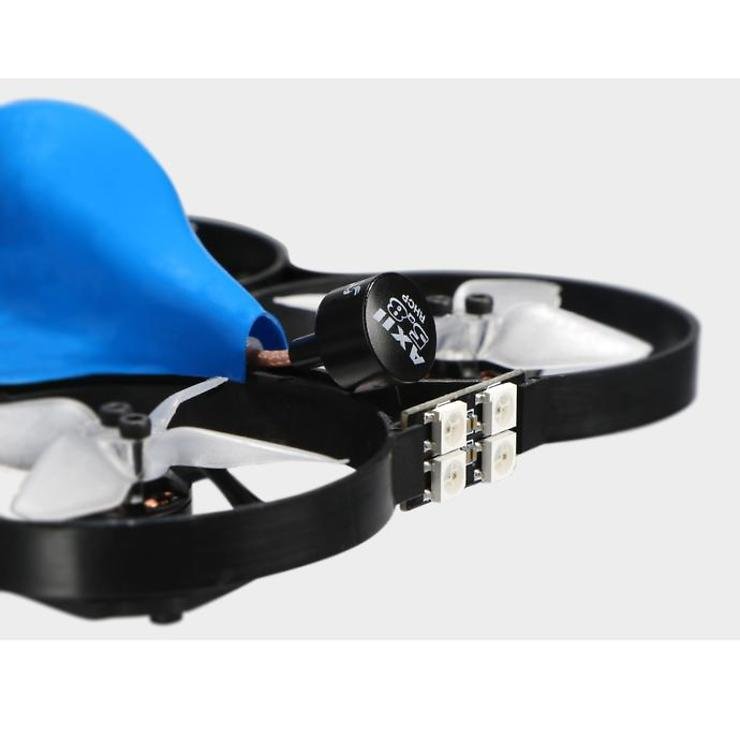

AXII ANTENNA
The 5.8 g VTX signal is always perfect even if the connection to the RC radio transmitter is interrupted. Therefore we choose this micro antenna for the Beta85X. The Micro AXII 5.8GHz antenna is the next evolution of the world's most popular FPV antenna, developed by TrueRC and manufactured by Lumenier.

PROPS OUT
The Beta85X drone is supplied as standard with "propellers and protection".

Tailor-made FPV Camera EOS2
Which is the most popular camera for brushless whoop drones? This must be CADDX EOS2. Lighter, smaller, but still perfect picture performance. Now it is the standard camera for the Beta85X drone. At the same time, the 5.8 g VTX card has all the other features of the Z02 camera, such as switchable output power. Smart Audio is available as standard for the VTX remote control. The EOS2 camera is supplied with the FPV version of the Beta85X drone. The camera tilt angle is switchable from 25 degrees to 45 degrees. Thus it can support different flight situations (indoor and outdoor).

Scope of delivery:

  • 1x Beta85X FPV PNP Whoop Quadcopter
  • 1x OSD cable (only for HD version)

No batteries are included in all versions. You should buy 2-3S batteries (XT30) separately.

Lieferumfang

Lieferumfang:

  • 1x Beta85X FPV PNP Whoop Quadcopter
  • 1x OSD-Kabel (nur für HD-Version)



Bestellnummer 00313489-HD-DVR-PNP
EAN 4260449984743
Hersteller BetaFPV
