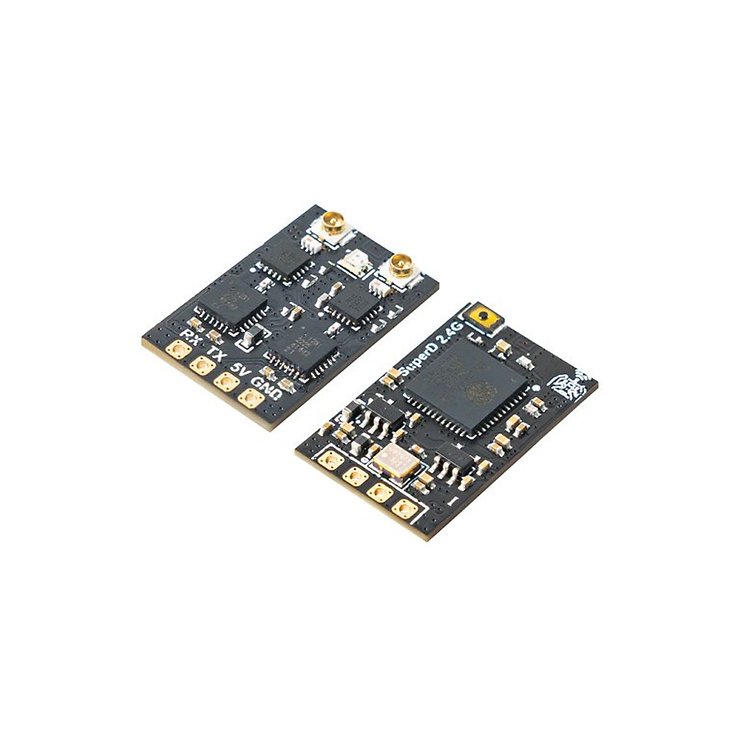

BetaFPV SuperD ELRS Diversity Receiver

BetaFPV SuperD ELRS Diversity Receiver

Product description

Discover the BetaFPV receiver, based on the ExpressLRS 2.4G project and the first true diversity receiver to use dual antennas.

The SuperD achieves an extremely precise frequency rate and largely fulfills the reliability requirements for long-range flights.

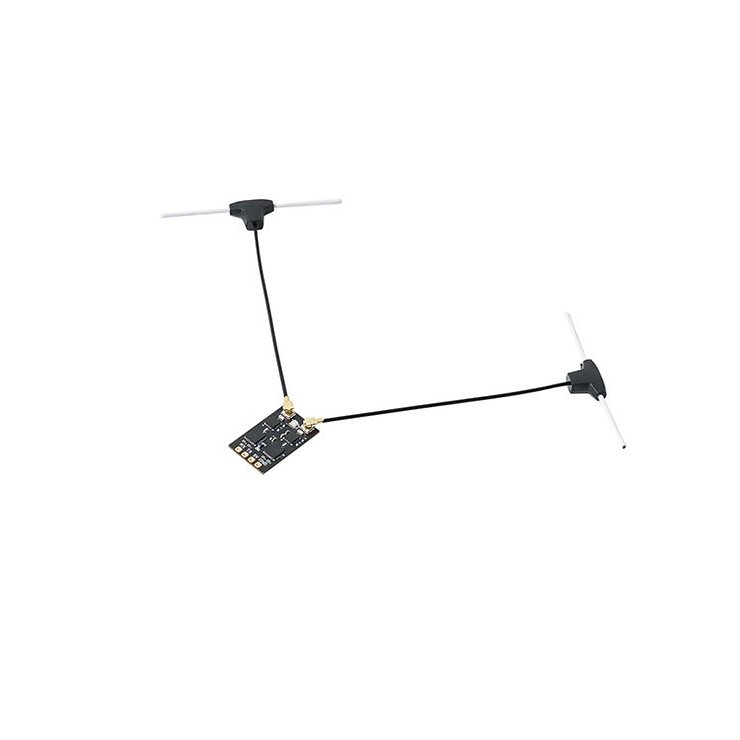

Two dipole T antennas generate an omnidirectional signal for good signal transmission. It is recommended to place the antennas separately and vertically as far apart as possible to obtain a better signal.

The receiver can be used not only for FPV drones, but also for FPV fixed-wing aircraft or other FPV aircraft.

Specifications

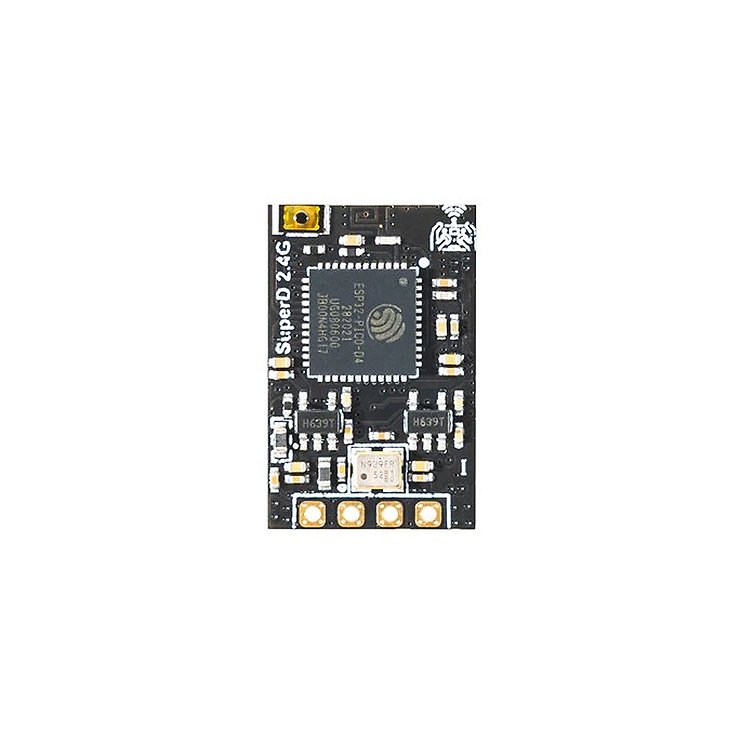

• MCU: ESP32 PICO D4, Dual SX1280 (SX1281)
• Antenna connection: IPEX MHF 1/U.FL
• RF frequency: 2.4 GHz (2400-2480 MHz)
• Telemetry power: 20dBm (100mW)
• Input voltage: +5V DC @ " "pad
• PCB size: 22 mm * 14 mm
• Weight: 1.1 g without antenna
