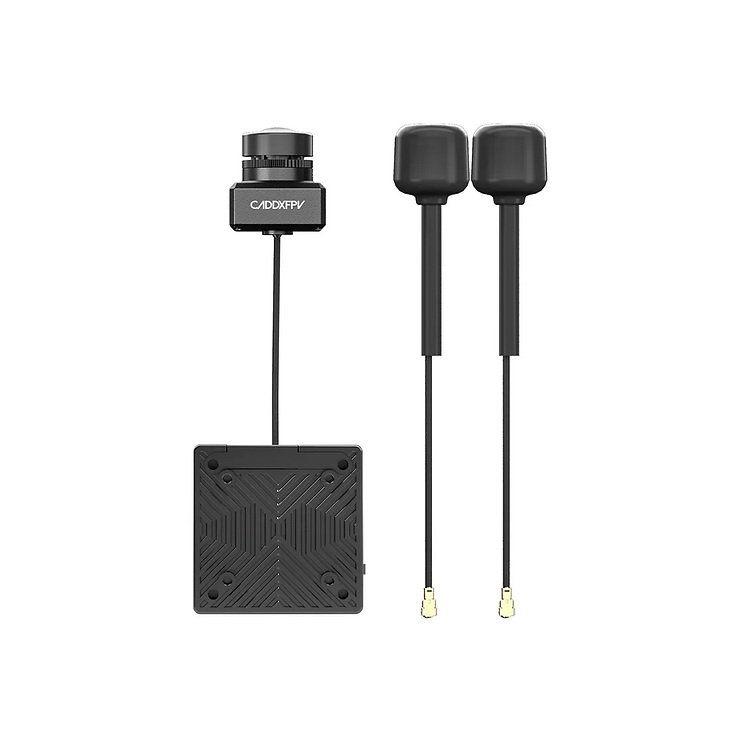

Walksnail Avatar HD Kit V2 (Dual Antennas Version)

Walksnail Avatar HD Kit V2 (Dual Antennas Version)

Product description

Walksnail Avatar HD Kit V2 (Dual Antennas Version)

The Walksnail Avatar HD Kit V2 revolutionizes FPV flying with its advanced technology and dual-antenna design that ensures stable and clear transmission. This kit is specifically designed for enthusiasts who demand superior image quality and reliability.

Key features

• Dual Antenna System: Increases signal stability and improves range up to 4 kilometers.
• 4K compatibility: Enables recording in the highest resolution for impressive video quality
• 1080P 120fps: Supports ultra-smooth high-frame-rate recording for dynamic motion.
• Low latency: Only 22 ms delay for almost lag-free transmission.
• Built-in memory: 32 GB internal memory provides enough space for longer recordings.
• Supports Gyroflow: Ideal for post-production and stabilization of recordings.
• Wide field of view: 160° FOV for a comprehensive view during flight.
• Lightweight design: Minimizes the strain on your drone and extends flight time.

Specifications

Camera:

• Model: Avatar V2 camera
• Image sensor: 1/3.2-inch 4Mp 4:3 sensor
• Resolutions: 1080P/60fps; 720P/100fps; 720P/60fps; 1080P/120fps compatible; 1080P/100fps compatible
• Aspect ratio: 4:3 native / 16:9
• Lens: 2.1mm
• Aperture: F2.0
• Shutter: Rolling shutter
• Minimum illumination: 0.001 Lux
• Weight: 7.2 g
• Dimensions: 191922mm
• Coaxial cable: 140mm

VTX:

• Model: Avatar V2 module (dual antenna)
• Communication frequency: 5.725-5.850GHz
• Transmitter power (EIRP): FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
• I/O interface: JST1.04 (power supply) JST0.86(USB)
• Mounting holes: 25.525.5mm; 2020mm
• Dimensions: 33.533.510.5mm
• Memory: 32G
• Recording: 1080p/720p
• Weight: 15.4g
• Operating temperature: -20 to 40°C
• Channels: 8
• Wide power supply: 6V-25.2V
• Supported FC systems: Betaflight; Inav; Fettec; ArduPilot; Kiss
• OSD: Canvas mode
• Latency: Average delay 22ms
• Antennas: 2 (IPEX)

Antenna specifications:

• Polarization: LHCP
• Bandwidth: 5600MHz-6000MHz
• Gain: 1.9dBi
• VSWR: ≤1.5
• Input impedance: 50Ω
• Interface: IPEX-1
• Size: R15 X 45mm (without cable)
• Weight: 2g

The Walksnail Avatar HD Kit V2 is the ideal choice for FPV pilots who value high image quality, advanced features and robust construction.
