Product description

The M8P charger is a true all-rounder for FPV pilots, RC enthusiasts and hobbyists! With a maximum charging power of 600W and 20A charging current, it is extremely powerful and yet compact enough to fit in your pocket.

Thanks to the high-quality 2.4-inch IPS color display, it offers a clear view from any angle. In addition to charging and discharging batteries, it is also a measuring device for resistance, PWM, PPM and SBUS signals - ideal for fine-tuning your drone or RC models.

With a multilingual user interface, including voice output and USB upgrade function, the M8P always stays up to date and offers maximum user convenience.

Features

• 600W charging power & 20A maximum charging current - Super-fast charging for maximum efficiency
• Multifunctional design - charger, power & signal tester in one
• Compatible with many battery types - Supports LiPo, LiFe, LiIon, LiHV (1-8S), NiMH (1-20S), Pb (1-10S)
• High-resolution 2.4" IPS color display - Clear display from all viewing angles
• PWM, PPM & SBUS signal tester - Perfect for RC models & drones
• Multilingual user interface with voice output - Intuitive control
• USB upgrade function - Always up to date
• Integrated safety monitoring - For maximum safety

Technical data

• Input voltage: DC 7-35V, max. 25A
• Charging current: 0.1-20A, 600W
• Discharge current:
  • 600W (Rec/Ext. mode)
  • 20W (internal mode, 0.1-3A)
• Balancer current: 1000mA, 4.2V
• Charging accuracy: <0,005V
• Cell count:
  • LiPo/LiFe/LiIon/LiHV: 1-8S
  • NiMH: 1-20S
  • Pb: 1-10S
• Voltage range: 1.0V-5.0V, 1-6S

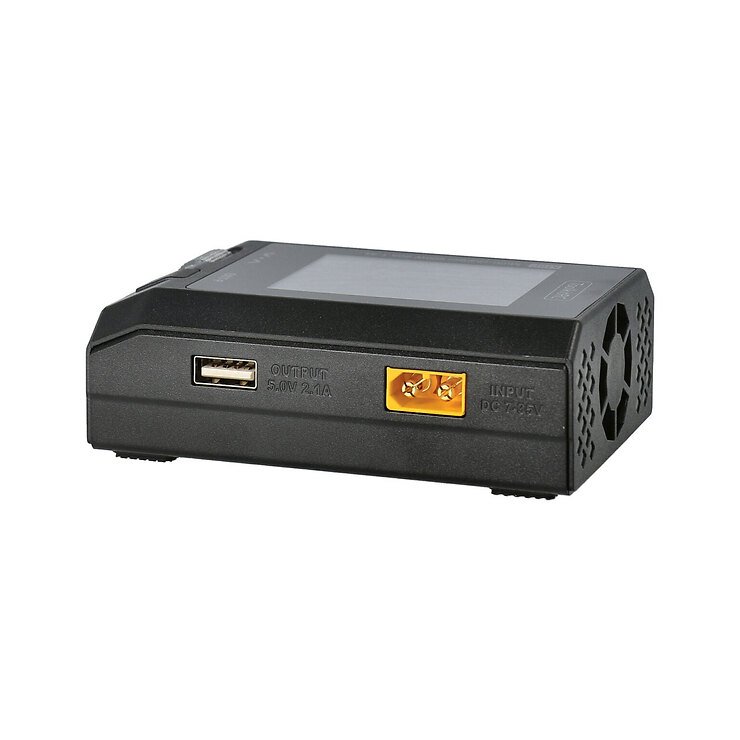

• USB output: 2.1A, 5V (can also be used for upgrades)
• Display: IPS 2.4", 320x240px LCD
• Dimensions: 99 × 72 × 35 mm
• Weight: 180 g

Measurement & output functions:

• Measuring range:
  • PWM: 880us-2200us, 20-400Hz
  • PPM: 880us-2200us ×8 CH, 20-50Hz
  • SBUS: 880us-2200us ×16 CH, 20-100Hz
• Output signals:
  • PWM: 500us-2500us, 20-1000Hz
  • PPM: 880us-2200us ×8 CH, 50Hz
  • SBUS: 880us-2200us ×16 CH @74Hz
  • Current: 1-20A, 1-35V (CC+CV mode)

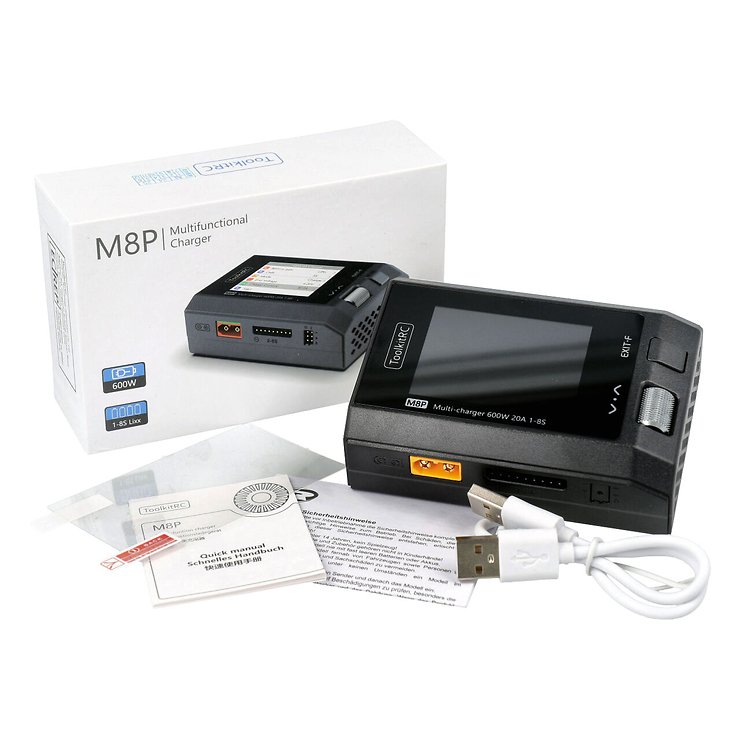

Scope of delivery:
