Product description

The TBS Lucid Flight Stack represents the latest in product development at TBS. Specially developed for racing and freestyle applications, it meets the needs of both experienced pilots and enthusiastic newcomers.

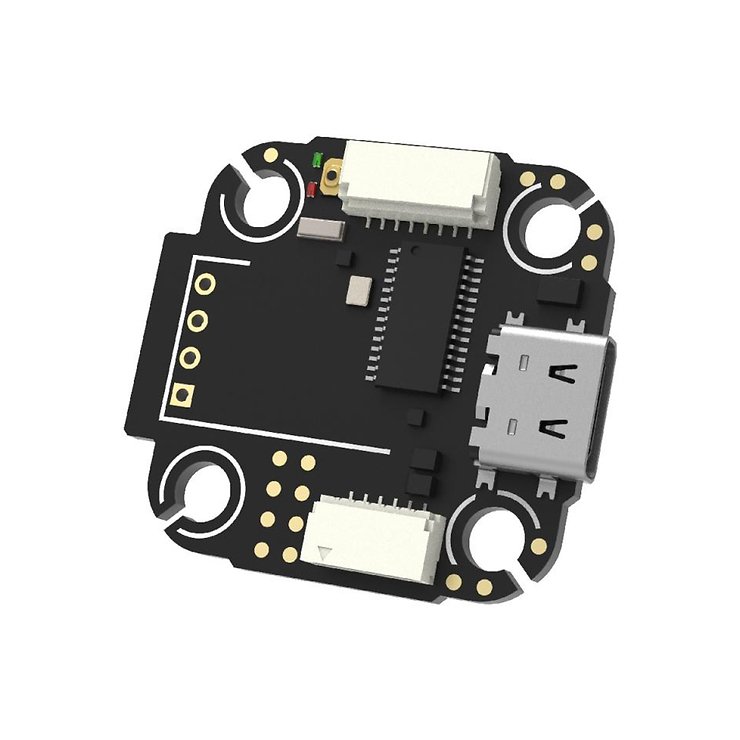

TBS Lucid Flight Controller

The TBS Lucid Flight Controller is a 20x20 masterpiece built for the Lucid Flight Stack, but is compatible with all 20x20 ESCs. It was designed specifically for the TBS Crossfire & TBS Tracer ecosystem, but will work with any radio receiver - we don't discriminate :)

There are plug & play connectors for the DJI O3 digital system and 4in1 ESCs that follow the Betaflight connector standard. The solder pads for auxiliary equipment are designed and arranged to be easy to solder and logical to install in your favorite drone frame, like the TBS Source One.

For the professional pilot, an MPU6000 (Pro) variant is available (those in the know, know it), while the ICM-42688P (Freestyle) based version offers a state of the art gyro solution at a better price.

Specifications

• MCU: AT32F435RMT7, 288MHz
• Gyro: MPU-6000
• Motors: 4 motors, with telemetry and current sensor
• BEC: 9V, 2.5A; 5V 2A
• OSD: AT7456E
• Blackbox: 8M
• UARTs: 6 (UART1/UART3/UART4/UART5/UART7/UART8)
• Input: 3S-6S
• Size: 31mm x 29mm
• Mounting: 20mm x 20mm
• Weight: 4.51g

Recommended port assignment

• UART2: ESC Telemetry
• UART3: DJI O3 Air Unit
• UART4: DJI O3 SBus
• UART5: CRSF Rx
• UART7: GPS
• UART8: Smart Audio
