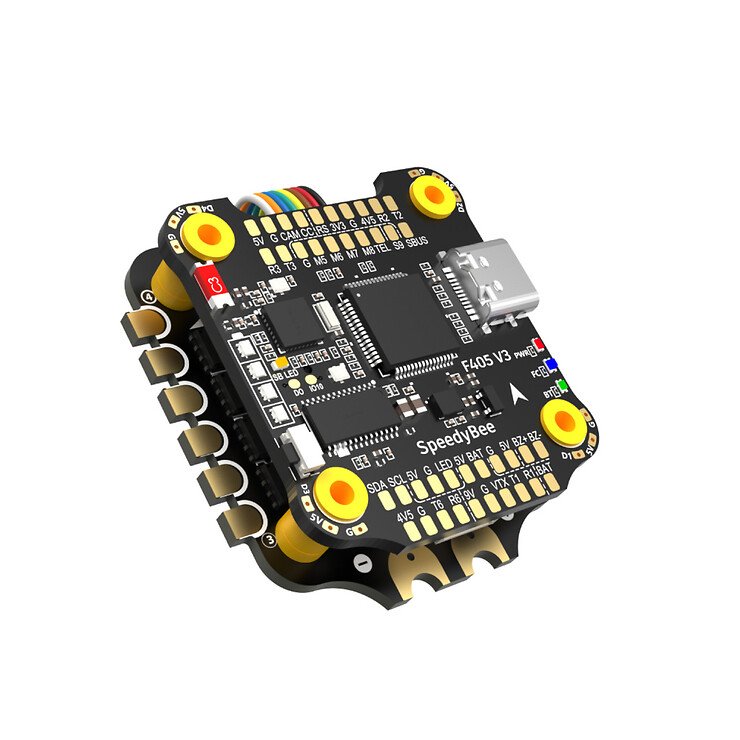

SpeedyBee F405 V3 BLS 50A 30x30 Stack FPV FC Flight Controller ESC

Product description

SpeedyBee F405 V3 BLS 50A 30x30 Stack FPV FC Flight Controller ESC

Configure your FC and ESC via Bluetooth

Turn your phone into an all-in-one FC configurator with the SpeedyBee app and tune your quad anytime, anywhere.
Experience wireless, fully configurable ESC with the SpeedyBee app.

Powerful 50A 4-in-1 ESC!
Built with the robust BB21 MCU and large motor pads for easy soldering. Built with Japanese-made TDK filter SMT capacitors and TVS protection diode on board, for a smooth flying experience. Real 50A output, ready for your 6S motors.

Forgot your LiPo checker?
Just check the FC! Equipped with a 4-stage LED battery indicator, you can now fly anywhere worry-free - even without your lipo checker!

8 Motors Output for X8/Y6/ fixed-wings
You can use this stack for your X8 drones, Y6 drones or fixed wings. Just take out your phone and configure everything in the SpeedyBee app.

Change motor directions wirelessly!
Finish your last build? Just replaced your motor after a crash?
Take out your smartphone and configure the direction of your motor wirelessly with the latest SpeedyBee app. Works for all BLHeli32 / BLHeli_S / BlueJay ESCs.

low ESR 1500uF capacitor + TVS protection diode = Additional protection
The ESC is equipped with a TVS protection diode to absorb voltage spikes. We also included a huge 1500uF low ESR capacitor. Capacitor to provide clean data from the gyro to the FC.

Specifications SpeedyBee F405 V3 30x30 Flight Controller

MCU: STM32F405
IMU(Gyro): BMI270
USB port: Type-C
Barometer: Built-in
OSD chip: AT7456E chip
BLE Bluetooth: Supported. Used for flight controller configuration
DJI Air Unit Connection Way: Two ways are supported: 6-pin connector or direct soldering.
Blackbox MicroSD Card Slot: *Betaflight firmware requires that the microSD card type be either standard (SDSC) or high capacity (SDHC), so extended capacity (SDXC) cards are not supported (many high speed U3 cards are SDXC). Also, the card MUST be formatted with the FAT16 or FAT32 (recommended) file system. So you can use any SD card less than 32GB, but Betaflight can only recognize a maximum of 4GB. We recommend you to use this third-party formatting tool and select "Overwrite format" to format your card. Also check here for the recommended SD cards or buy the tested cards from our store.
BetaFlight Camera Control Pad: Yes (CC Pad on the front)
Supported current sensor inputs: For SpeedyBee BLS 50A ESC, please set scale = 386 and offset = 0.
Current input: 3S - 6S Lipo (through G, BAT pins/pads from 8-pin connector or 8-pads on the bottom)
5V output: 9 groups of 5V outputs, four +5V pads and 1 BZ+ pad (for buzzer) on the front and 4x LED 5V pads. The total current load is 2A.
9V output: 2 groups of 9V output, one +9V pad on the front and another in a connector on the bottom. The total current load is 2A.
Supports 3.3V output: Designed for receivers with 3.3V input. Up to 500mA current load.
Supports 4.5V output: Designed for receiver and GPS module even if FC is powered by USB port. Up to 1A current load.
ESC signal: M1 - M4 on the bottom and M5-M8 on the front.
UART: 5 sets (UART1, UART2, UART3, UART4 (for ESC telemetry), UART6)
ESC: Telemetry UART R4(UART4)
I2C Supported. SDA & SCL pads on the front panel. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on the bottom of the front panel. Used for WS2812 LEDs controlled by Betaflight firmware.
Buzzer: BZ+ and BZ- pads are used for 5V buzzer
BOOT button: Supported.
[A]. Press and hold the BOOT button while powering on the FC to put the FC into DFU mode.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to the LED1-LED4 connectors on the bottom panel. By default, a short press of the BOOT button will toggle the LED display mode. A long press of the BOOT button toggles between SpeedyBee LED mode and BF LED mode. In BF-LED mode all LED1-LED4 strips are controlled by the Betaflight firmware.
RSSI input: is supported. Referred to as RS on the front panel.
SmartPort: use any TX pad of the UART for the SmartPort function.
Supported flight control firmware BetaFlight (default), EMUFlight, INAV
Firmware target name: SPEEDYBEEF405V3
Mounting: 30.5 x 30.5mm (4mm hole diameter)
Dimensions: 41.6(L) x 39.4(W) x 7.8(H)mm
Weight: 9.6g
