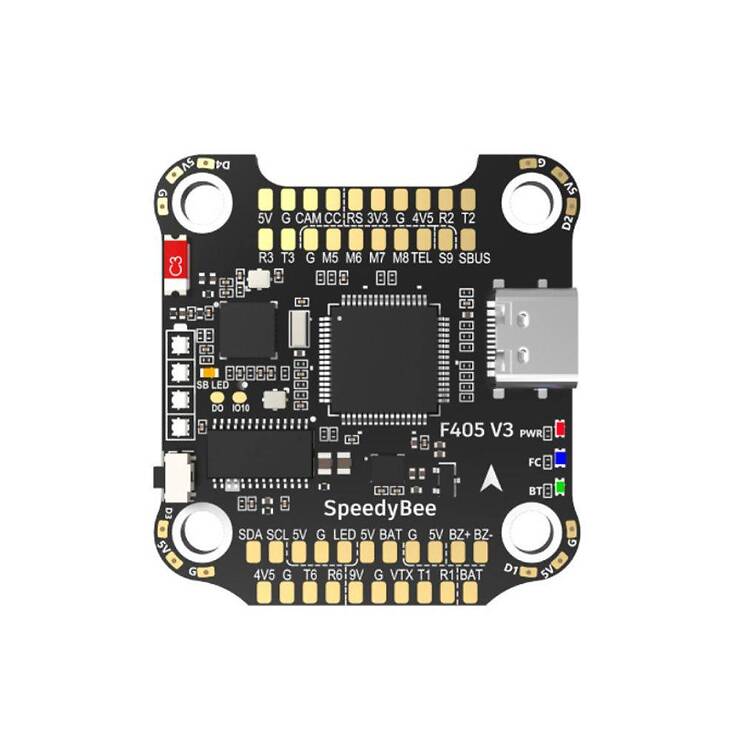

SpeedyBee F405 V3 30x30 FPV FC Flight Controller

SpeedyBee F405 V3 30x30 FPV FC Flight Controller

Product description

SpeedyBee F405 V3 30x30 FPV FC Flight Controller

The SpeedyBee F405 V3 Flight Controller - 30x30 is paired with Bluetooth! It also features a 4-stage LED battery indicator in case you don't have your LiPo tester handy. The F405 V3 FC also has a built-in barometer, m1-m8 ESC signal and 4x UARTS.

Features

• Dedicated DJI Air Unit connector for a quick digital setup
• Power your GPS with a USB cable - no battery required.
• 4 x UARTs for your receiver + VTX + camera + GPS.
• SD card slot supports up to 4GB of black box data*
• 22mm cutouts for the FPV camera in your tight case
• 9V 2A + 5V 2A single BECs
• 4-stage LED battery indicator
• m1-m8 ESC signal
• Built-in barometer
• Bluetooth pairing

Specifications SpeedyBee F405 V3 30x30 flight controller

• MCU: STM32F405
• IMU(Gyro): BMI270
• USB port: Type-C
• Barometer: Built-in
• OSD chip: AT7456E chip
• BLE Bluetooth: Supported. Used for flight controller configuration
• DJI Air Unit Connection Way: Two ways are supported: 6-pin connector or direct soldering.
• Blackbox MicroSD Card Slot: *Betaflight firmware requires that the microSD card type be either standard (SDSC) or high capacity (SDHC), so extended capacity (SDXC) cards are not supported (many high speed U3 cards are SDXC). Also, the card MUST be formatted with the FAT16 or FAT32 (recommended) file system. So you can use any SD card less than 32GB, but Betaflight can only recognize a maximum of 4GB. We recommend you to use this third-party formatting tool and select "Overwrite format" to format your card. Also check here for the recommended SD cards or buy the tested cards from our store.
• BetaFlight Camera Control Pad: Yes (CC Pad on the front)
• Supported current sensor inputs: For SpeedyBee BLS 50A ESC, please set scale = 386 and offset = 0.
• Current input: 3S - 6S Lipo (through G, BAT pins/pads from 8-pin connector or 8-pads on the bottom)
• 5V output: 9 groups of 5V outputs, four +5V pads and 1 BZ+ pad (for buzzer) on the front and 4x LED 5V pads. The total current load is 2A.
• 9V output: 2 groups of 9V output, one +9V pad on the front and another in a connector on the bottom. The total current load is 2A.
• Supports 3.3V output: Designed for receivers with 3.3V input. Up to 500mA current load.
• Supports 4.5V output: Designed for receiver and GPS module even if FC is powered by USB port. Up to 1A current load.
• ESC signal: M1 - M4 on the bottom and M5-M8 on the front.
• UART: 5 sets (UART1, UART2, UART3, UART4 (for ESC telemetry), UART6)
• ESC: Telemetry UART R4(UART4)
• I2C Supported. SDA & SCL pads on the front panel. Used for magnetometer, sonar, etc.
• Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on the bottom of the front panel. Used for WS2812 LEDs controlled by Betaflight firmware.
• Buzzer: BZ+ and BZ- pads are used for 5V buzzer
• BOOT button: Supported.
• [A]. Press and hold the BOOT button while powering on the FC to put the FC into DFU mode.
• [B]. When the FC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to the LED1-LED4 connectors on the bottom panel. By default, a short press of the BOOT button will toggle the LED display mode. A long press of the BOOT button toggles between SpeedyBee LED mode and BF LED mode. In BF-LED mode all LED1-LED4 strips are controlled by the Betaflight firmware.
• RSSI input: is supported. Referred to as RS on the front panel.
• SmartPort: use any TX pad of the UART for the SmartPort function.
• Supported flight control firmware BetaFlight (default), EMUFlight, INAV
• Firmware target name: SPEEDYBEEF405V3
• Mounting: 30.5 x 30.5mm (4mm hole diameter)
• Dimensions: 41.6(L) x 39.4(W) x 7.8(H)mm
• Weight: 9.6g

Contents:

• 1x SpeedyBee F405 V3 flight controller - 30x30
  5x M3x8mm silicon grommets (for FC)
  1x SH 1.0mm 30mm long 8pin cable (for FC-ESC connection)
  1x DJI 6pin cable (80mm)
