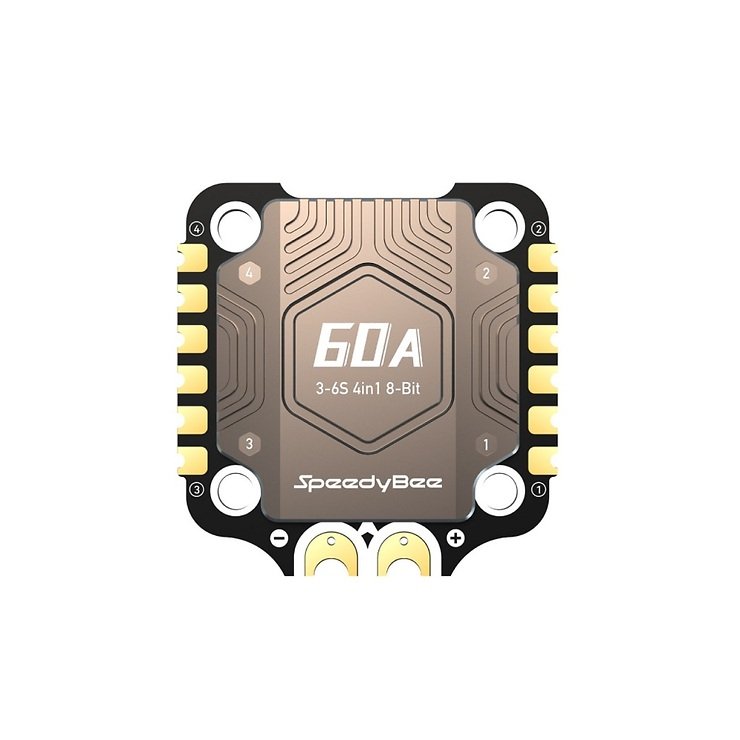

SpeedyBee F405 BLS 60A 30x30 4-in-1 ESC

SpeedyBee F405 BLS 60A 30x30 4-in-1 ESC

Product description

SpeedyBee F405 BLS 60A 30x30 4-in-1 ESC

The SpeedyBee BLS 60A 30x30 4-in-1 ESC is a high performance electronic speed controller designed specifically for demanding FPV racing and freestyle drones. With the robust BLHeli_S J-H-50 firmware, this ESC provides reliable and responsive control of your motors. The ESC supports modern communication protocols such as DSHOT300/600 and is designed for a wide range of applications with 3-6S LiPo batteries. An integrated current sensor and TVS protection diode provide additional safety and in-flight monitoring.

Specifications

• Product name: SpeedyBee BLS 60A 30x30 4-in-1 ESC
• Firmware: BLHeli_S J-H-50
• PC configurator download link: ESC Configurator
• Continuous current: 60A * 4
• Peak current: 80A (10 seconds)
• TVS protection diode: Yes
• External capacitor: 1000uF Low ESR capacitor (included in the package)
• ESC protocol: DSHOT300/600
• Power supply: 3-6S LiPo
• Current output: VBAT
• Current sensor: Supported (Scale=400 Offset=0)
• ESC telemetry: Not supported
• Mounting: 30.5 x 30.5mm (4mm hole diameter)
• Dimensions: 45.6(L) x 44(W) x 8(H) mm
• Weight: 23.5g
