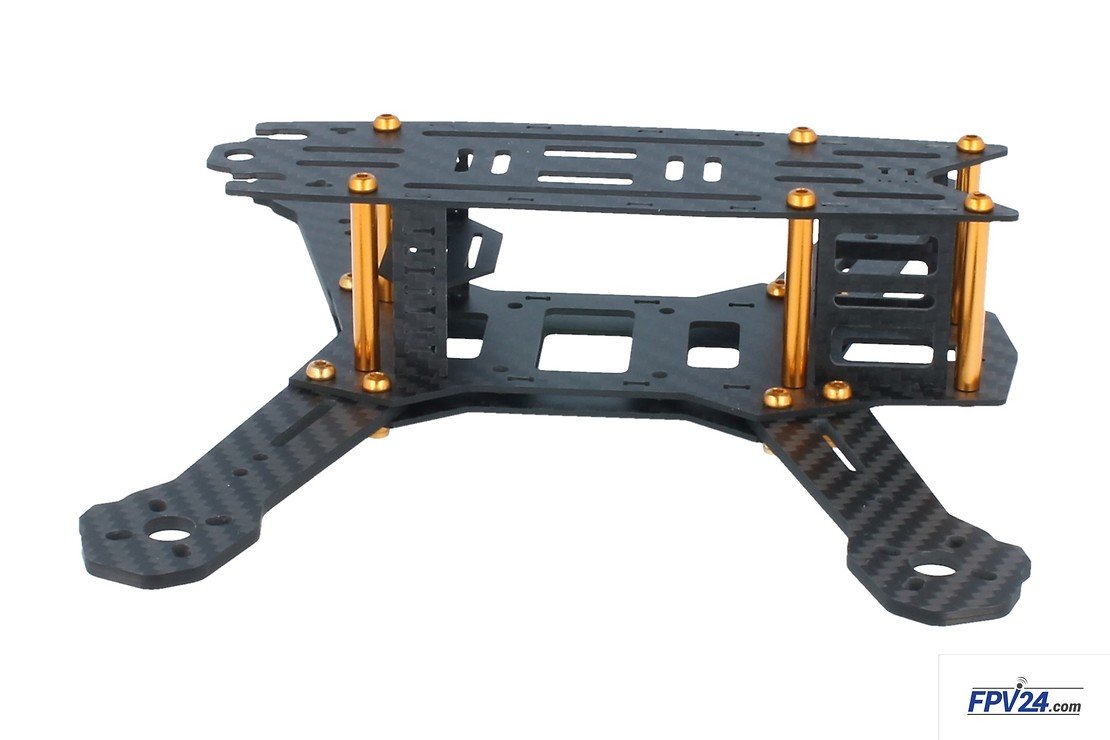

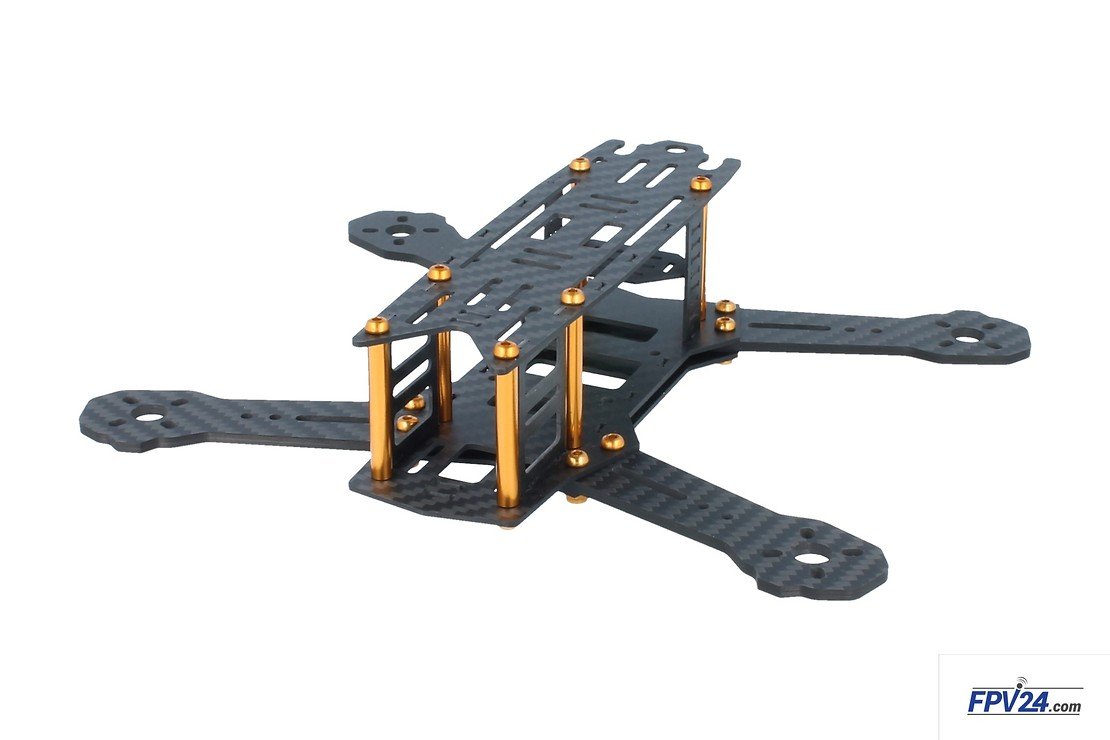

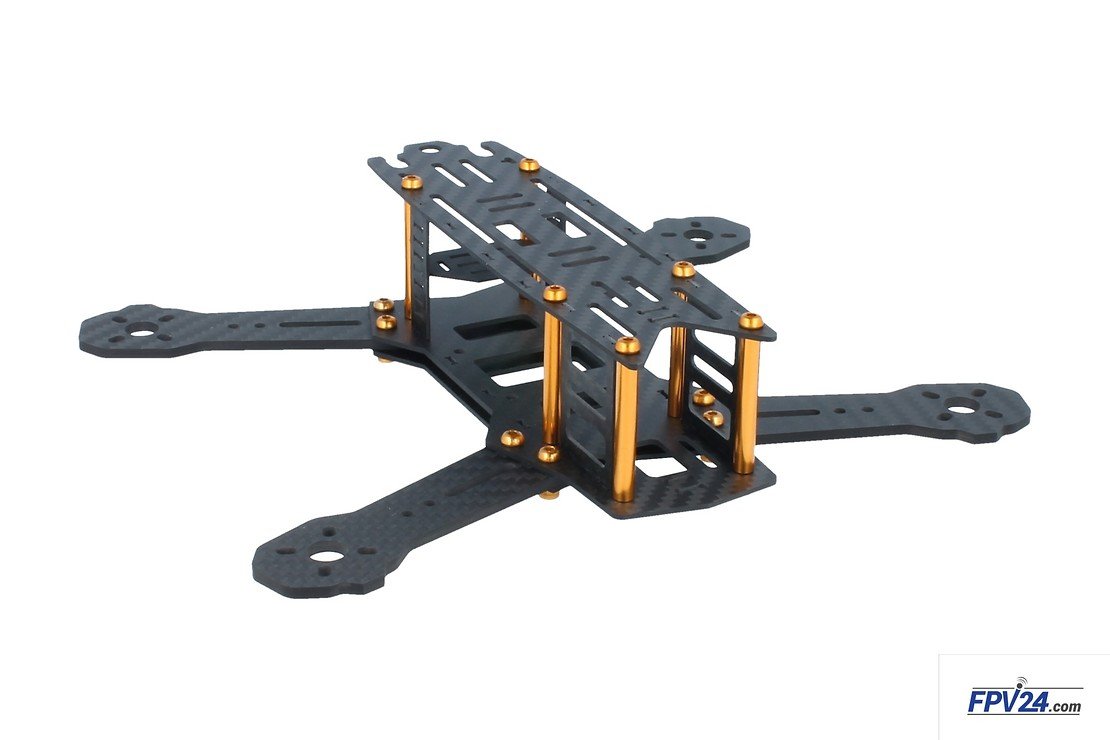

Noblish Team Frame TPF 210 Gold Edition
The TPF210 is a compromise between weight, durability and cost-effective repair options by bolted arms.
The weight of the Gold Edition is 77g with the included aluminum nuts and bolts. Also steel screws are included for better stability, with this, the weight as well as in the Red and Black Edition 87g.
The arms come in 3mm thickness and offer their design protection for the motors. This recording is optimized for 22xx engines and maximum 5 inch propellers are mounted.
For the FPV camera mounting options are provided. To assemble the known PZ0420M we free a 3D printing file. Thanks to the design of the upper plate, a tilt angle of about 40 degrees is possible.
When installing a ImmersionRC VTX under the top plate, the dip switches can be operated through the corresponding cutout. is also a stable holder available for the antenna.
To attach the power supply two retaining slots are provided which have slightly different sizes for different cable diameters. Corresponding grommets are included.
The shelving system supports accurate as some of the cutouts a flexible and neat assembly of the components. A basic set of the shelving system is included.
Delivery:
-Basic Carbonteile
-Alu Spacer 6 pcs.
-Alu Screws and nuts, a set (only Gold Edition)
-Steel Screws and nuts, a set (also in the Gold Edition)
-Regal System Set
Camera mount side, a set
Camera mount head a piece
-Gummitüllen In 2 sizes
About 3D printing link you can watch masters for useful parts download.
The 3D printing you can also order in our shop.
| Order number | NOB-TPF210-C |
|---|---|
| EAN | 4260449973839 |
| Manufacturer | Noblish |
