Mateksys F405 WMN FC Flight Controller

Mateksys F405 WMN FC Flight Controller

Product description

Mateksys F405 WMN FC Flight Controller

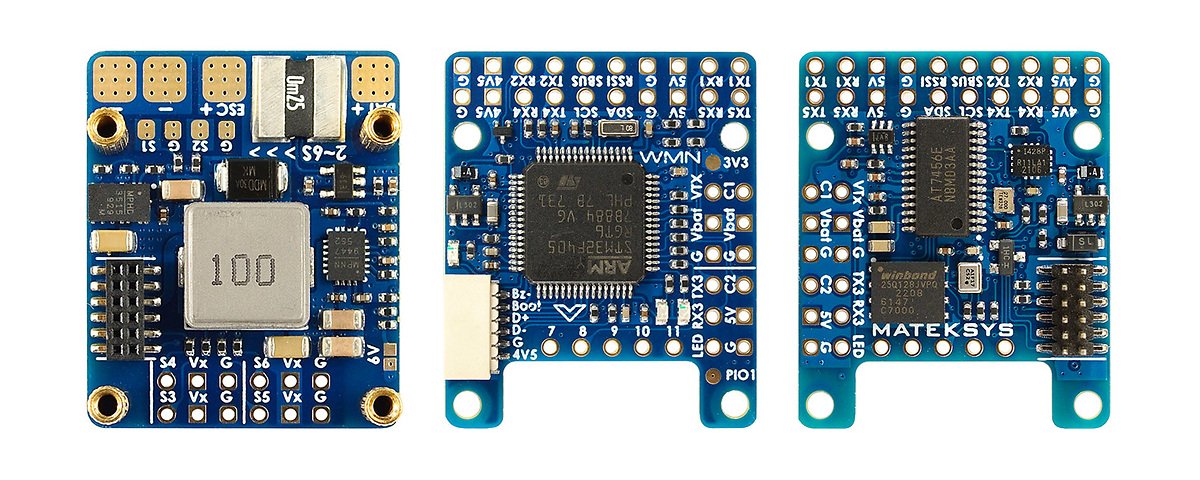

Matek's F405-WMN (Wing Mini) board is a great flight controller for those looking to save space and weight in their designs. It offers pretty much all the features of a full-size board on a board that measures only 31x26x16mm.

Features

• Full-size board
• Light weight

Technical Data

• MCU: STM32F405RGT6, 168MHz , 1MB Flash
• IMU: ICM42688-P
• Baro: SPL06-001
• OSD: AT7456E
• Blackbox: 16M Flash
• 5x UARTs, 1x Softserial_Tx option (INAV)
• 12x PWM outputs
• 1x I2C
• 3x ADC (VBAT, current, RSSI)
• 1x spare PINIO
• USB/Beep Extender with Type-C(USB2.0)
• Built-in inverter to UART2-RX for SBUS input
• Switchable dual camera inputs

Power supply

• 6~30V DC IN (2~6S LiPo)
• 132A current measurement (INAV Scale 250, ArduPilot 40A/V)
• PDB/current sense: 90A continuous, 132A burst.
• BEC 5V 1.5A for FC & peripherals
• BEC Vx 5A for servos, 5V/ 6V option
• Vbat for VTX and camera
• LDO 3.3V 200mA
• Battery voltage sensor: 1k:20k

FC firmware

• ArduPilot: MatekF405-TE
• INAV: MATEKF405TE (INAV 5.0 or newer version)

Features

• Dimensions: 31 x 26 x 16.5 mm
• Mounting: 22 x 22mm, Φ2mm
• Weight: 10g

Content

• 1x MATEKSYS F405-WMN
• 1x USB(Type-C)/Beep (Passive buzzer) extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
• Dupont 2.54 pins (board is shipped unsoldered)
