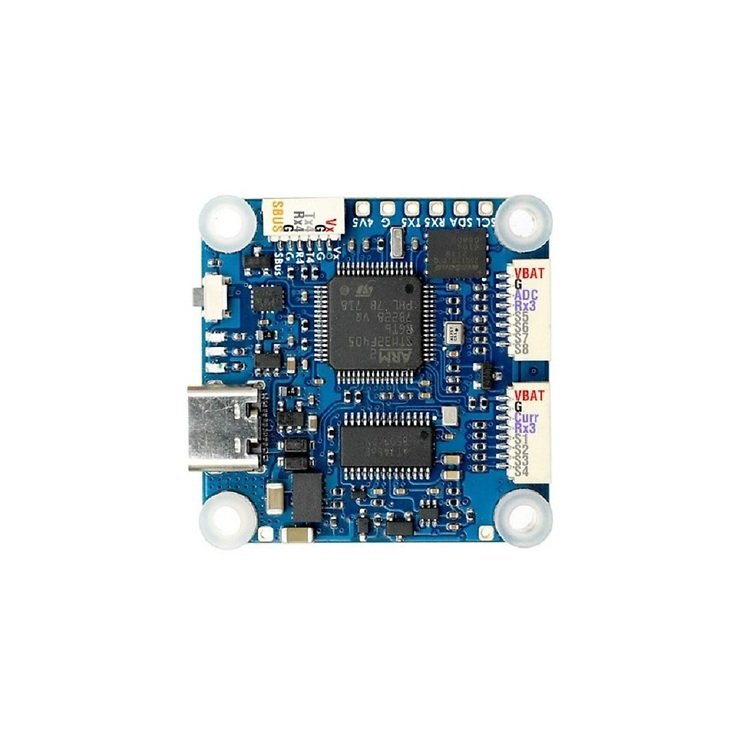

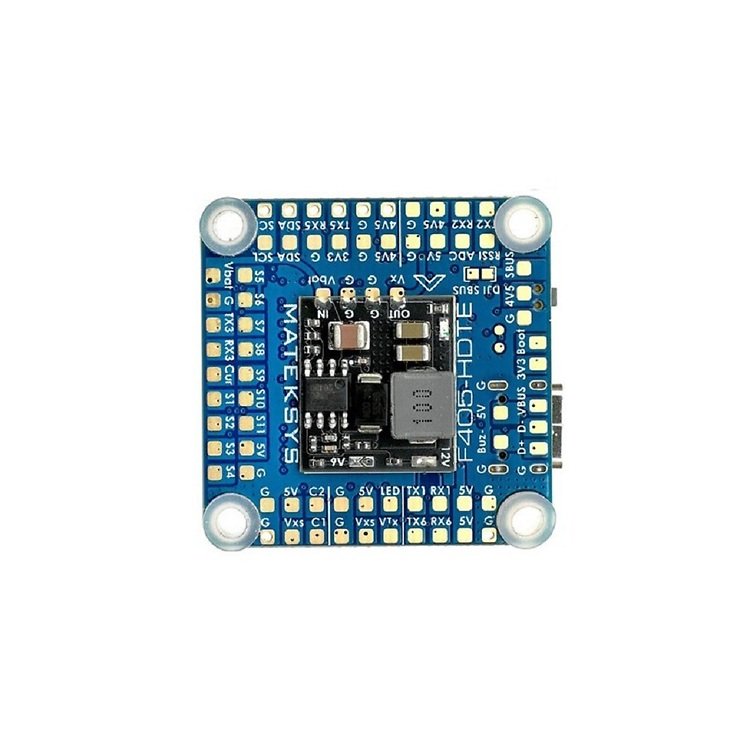

Mateksys F405-HDTE Flight Controller

Matek's F405-HDTE flight controller has 1MB flash memory that can run ArduPilot/INAV/Betaflight, OSD, barometer and 6 UARTS.

Features

• STM32F405 has 1MB Flash and can run ArduPilot/INAV/BetaFlight
• 3rd generation InvenSense IMU ICM42688-P
• 9-60V(3~12S LiPo) wide input voltage and voltage measurement. and a 9~16V BEC for DJI OSD or analog VTX.
• 8Motors+3Servos in INAV/BF multirotor mixer.

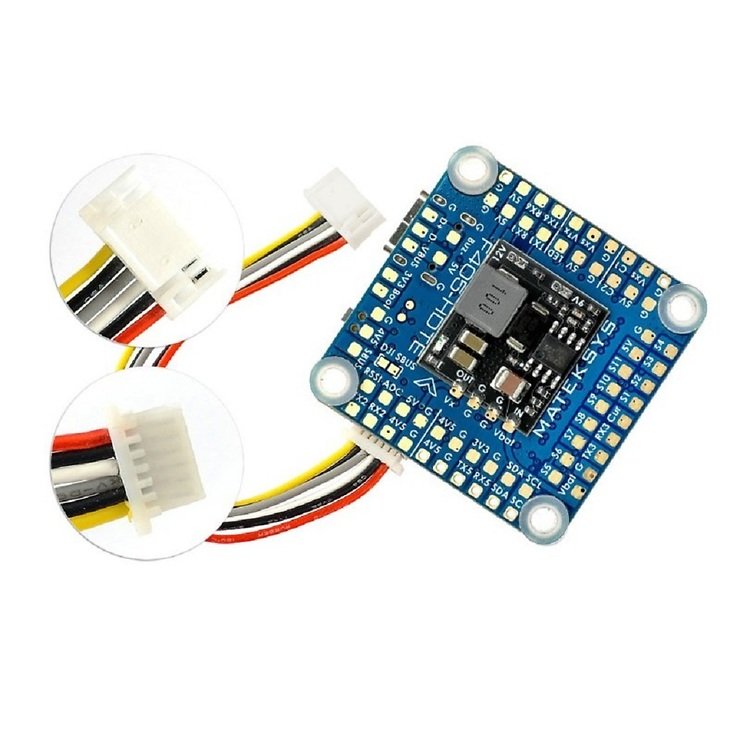

• 2x SH1.0_8pin connector for PnP with 2x 4in1 ESC
• 1x SH1.0_6pin connector for PnP with HD System (Caddx Vista & Air Unit)
• USB pin breakout for connection to external USB adapter.

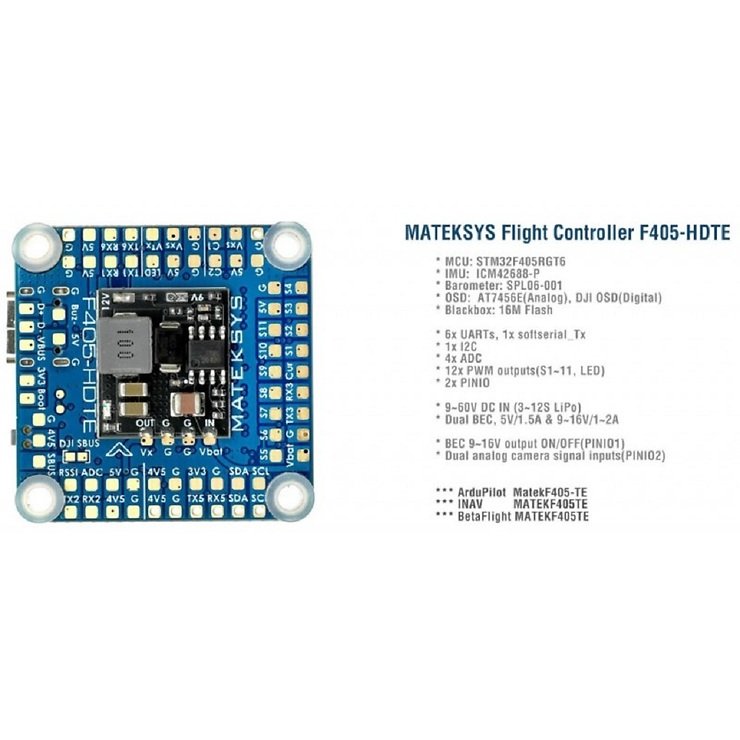

Specifications

• MCU: STM32F405RGT6
• IMU: ICM42688-P
• OSD: AT7456E, DJI OSD
• Baro: SPL06-001 (I2C)
• Blackbox: 16M byte flash memory
• 6x UARTs, 1x Softserial_Tx option
• 12x PWM outputs (8x Dshot)
• 1x I2C
• 4x ADC (VBAT, current, RSSI, airspeed)
• 2x PINIO
• 2x SH1.0_8pin connector for 4in1 ESC
• 1x SH1.0_6pin connector for HD system (Caddx Vista & Air Unit)
• 3x LEDs for FC STATUS (blue, green) and 3.3V indicator (red)
• 9~16V(Vxs) output ON/OFF switchable
• Dual analog camera signal switchable

Power

• Input: 9~60V (3~12S LiPo)
• BEC: 5V 1.5A
• BEC: Vx, 9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)
• Battery voltage sensor: 1K:20K (INAV scale 2100, BF scale 210)
• No current sensor built-in, supports external current sensor from PDB/4in1

Firmware

• ArduPilot: MatekF405-TE
• INAV: MATEKF405TE
• BetaFlight: MATEKF405TE

Physical

• Mounting: 30.5 x 30.5mm, Φ4mm with eyelets Φ3mm
• Dimensions: 36 x 36 x 5 mm
• Weight: 7g
