Matek Systems Flight Controller F411-Wing

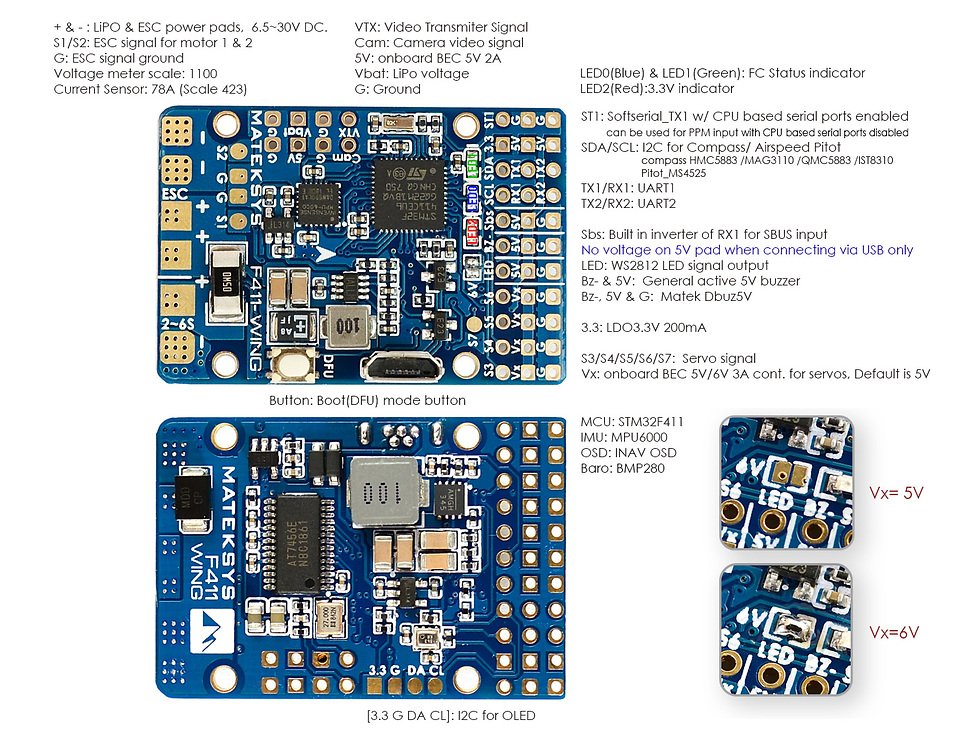

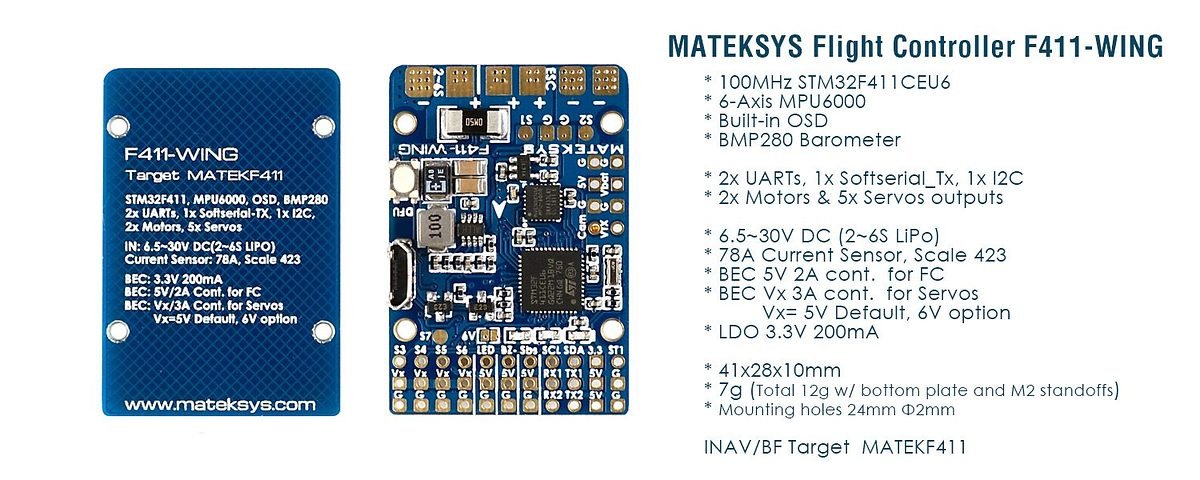

FC Specifications

• MCU: 100MHz STM32F411
• IMU: MPU6000 accelerometer / gyro (SPI)
• Baro: BMP280 (I2C)
• OSD: INAV OSD w / AT7456E chip
• Black box: No
• VCP & 2x UARTs
• 2x motors, 5x servo outputs
• 1x I2C
• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Red)
• Built in inverter for SBUS input (UART1-RX)
• SoftSerial_Tx1: ST1 pad by default
• PPM: ST1 pad with softserial disabled
• Battery Voltage Sensor: 1:10 (Scale 1100)
• WS2812 Led Strip: Yes
• Beeper: Yes
• RSSI: No
• FC firmware
• INAV Flight
• Target: MATEKF411
• PDB
• Input voltage range: 6.5 ~ 30V (2 ~ 6S LiPo) w / TVS protection
• 2x ESC power pads
• Current Senor: 78A, 3.3V ADC, Scale 423
• BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed

• Continuous current: 2 amps
• BEC Vx output

Designed for servos

• Voltage adjustable, 5V Default, 6V via jumper
• Continuous current: 3 amps
• BEC 3.3V output

Designed for Baro / Compass modules / OLED and Spectrum RX

• Linear regulator
• Continuous current: 200mA
• Physical

size

• Mounting: 24 x 24mm, Φ2mm

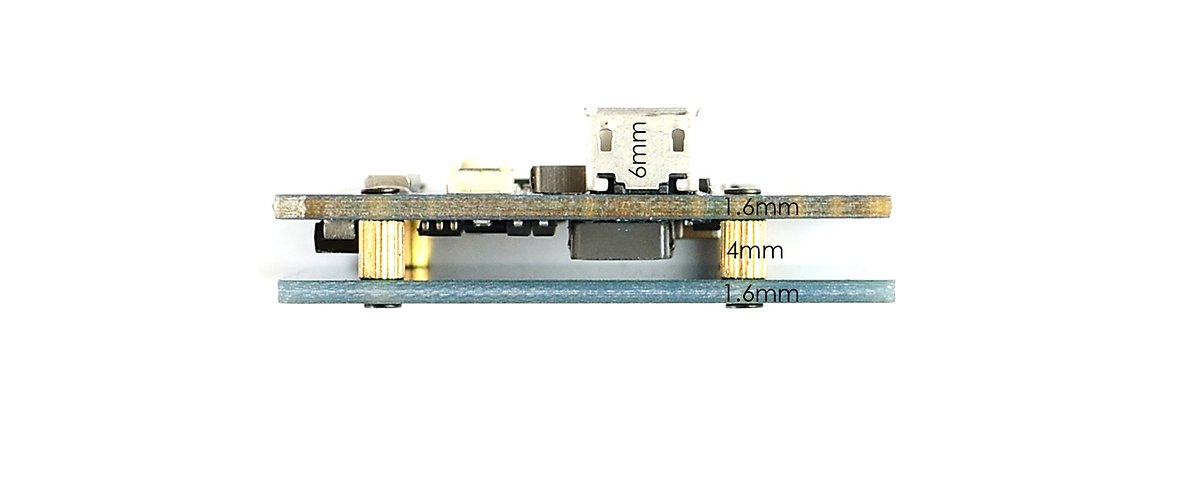

• Dimensions: 41 x 28 x 10mm
• Weight: 7g (Total 12g w / bottom plate and M2 standoffs)
