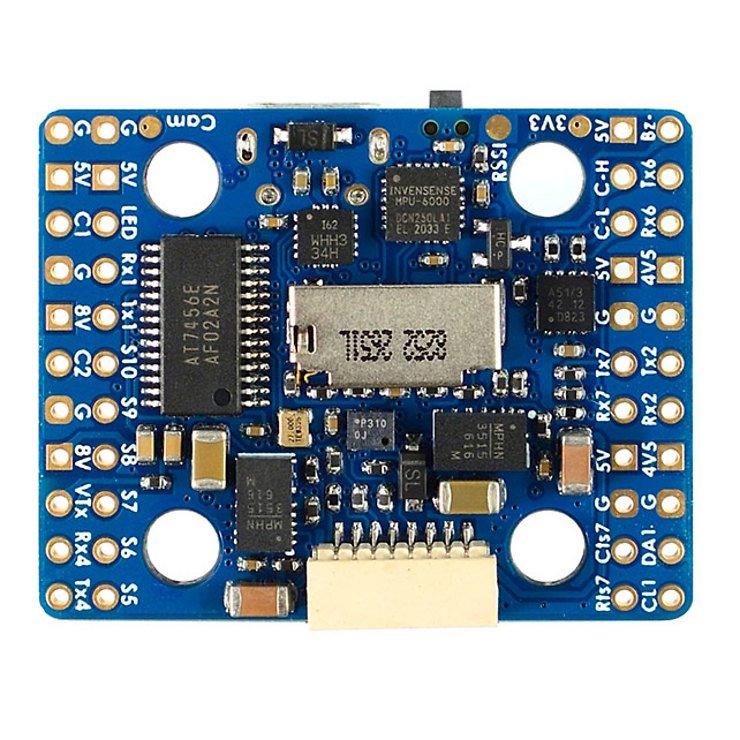

Matek Flight Controller H743-MINI Wing FC

Matek Flight Controller H743-MINI Wing FC

Product description

Matek Flight Controller H743-MINI Wing FC

Technical data

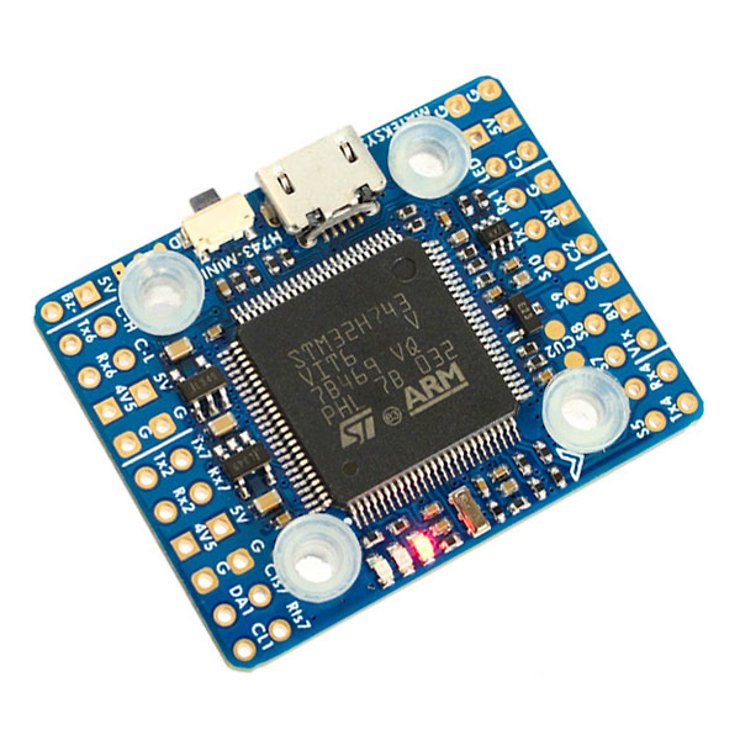

MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash

IMU: MPU6000 (SPI1) & ICM20602 (SPI4)

Baro: Infineon DPS310 (I2C2)

OSD: AT7456E (SPI2)

Black box: MicroSD card socket (SDIO)

5.5x Uarts (1,2,4,6,7, Rx8)

11x PWM outputs (S1~S10, LED)

2x I2C (I2C1/DA1 CL1 pads, no I2C2 breakout)

1x CAN (C-H, C-L Pads)

5x ADC (VBAT, Current, RSSI, VB2, CU2)

3x LEDs for FC STATUS (blue, red) and 3.3V display (red)

1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)

Switch for two camera inputs

8V ON/OFF switch

Vbat input: 6.3~36V (2~8S LiPo)

BEC: 5V 1.5A continued (Max.2A)

BEC: 8V 1.5A continued (Max.2A), 8V outputs stable at Vbat>=10V, 8V outputs 80% of Vbat at Vbat<10V

LDO 3.3V: 200mA

VB2 pad support Max. 69V (voltage divider 1K:20K)

Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot

Firmware: ArduPilot(ChiBiOS): MATEKH743 | BetaFlug:MATEKH743 | INAV: MATEKH743(Will be supported soon)

Dimensions: 20 x 20mm

Dimensions: 36 x 28 x 6.5 mm

Weight: 7g

Content

• 1x H743-MINI
• 6x silicone grommets M4 to M3
• 6x brass nozzles M3 to M2
• 1x JST-SH1.0_8pin cable, 5cm
• 2x JST-SH1.0_8pin connector
