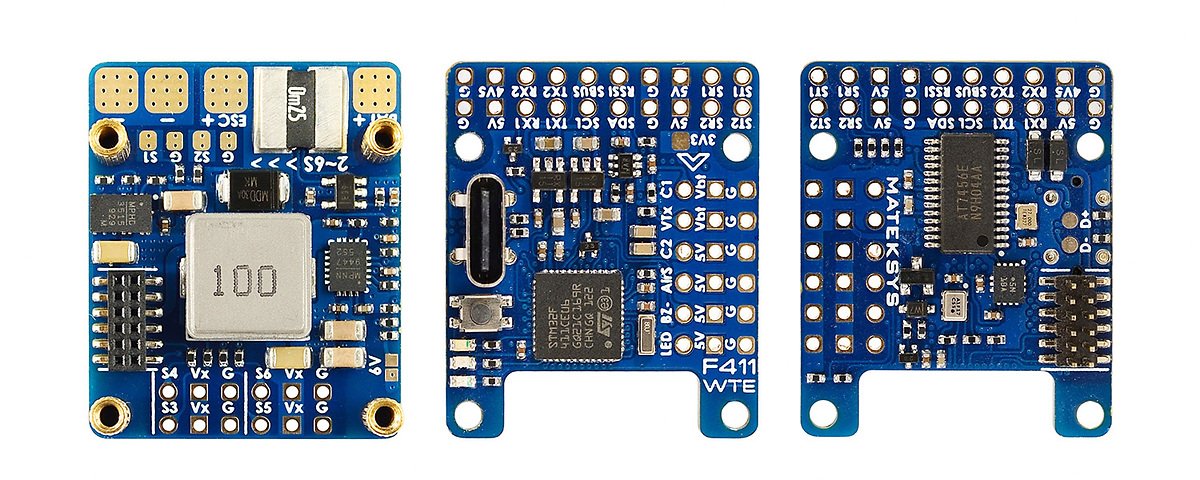

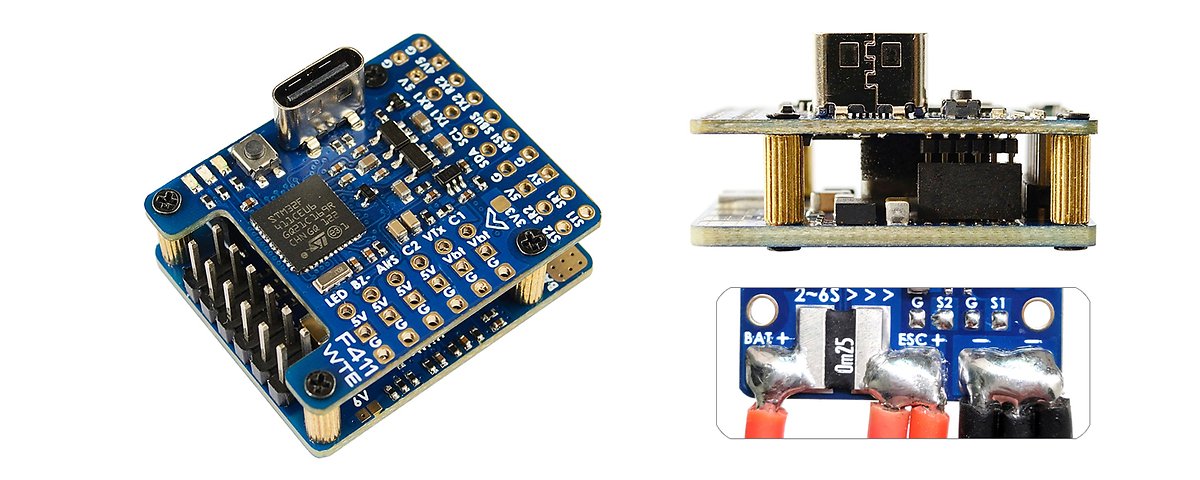

Matek Flight Controller F411-WTE

Matek Flight Controller F411-WTE

Product description

Matek Flight Controller F405-WSE

FC specifications

• MCU: 100MHz STM32F411CEU6
• IMU: BMI270 (SPI)
• Baro: SPL06-001 (I2C)
• OSD: AT7456E (SPI)
• Blackbox: No
• 2x Uarts
• 2x full softserial
• 6x PWM outputs (2x motors, 4x servos)
• 1x I2C
• 4x ADC (VBAT, current, RSSI, airspeed)
• 3x LEDs for FC STATUS (blue, red) and 3.3V indicator (red)
• Built-in inverter to UART2-RX for SBUS input
• Switchable dual camera inputs
• Vbat power ON/OFF switchable for VTX and camera
• PPM receiver: not supported

Power supply

• 6~30V DC IN (2~6S LiPo)
• 132A current sense (250 scale)
• PDB/current sense: 90A continuous, 132A burst.
• BEC 5V 1.5A for FC and peripherals
• BEC Vx 5A for servos, 5V/ 6V option
• Vbat for VTX and camera (ON/OFF switchable)
• LDO 3,3V 200mA
• Battery voltage sensor: 1k:10k

FC firmware

• INAV target: MATEKF411TE (INAV4.1 or newer version)

Physical

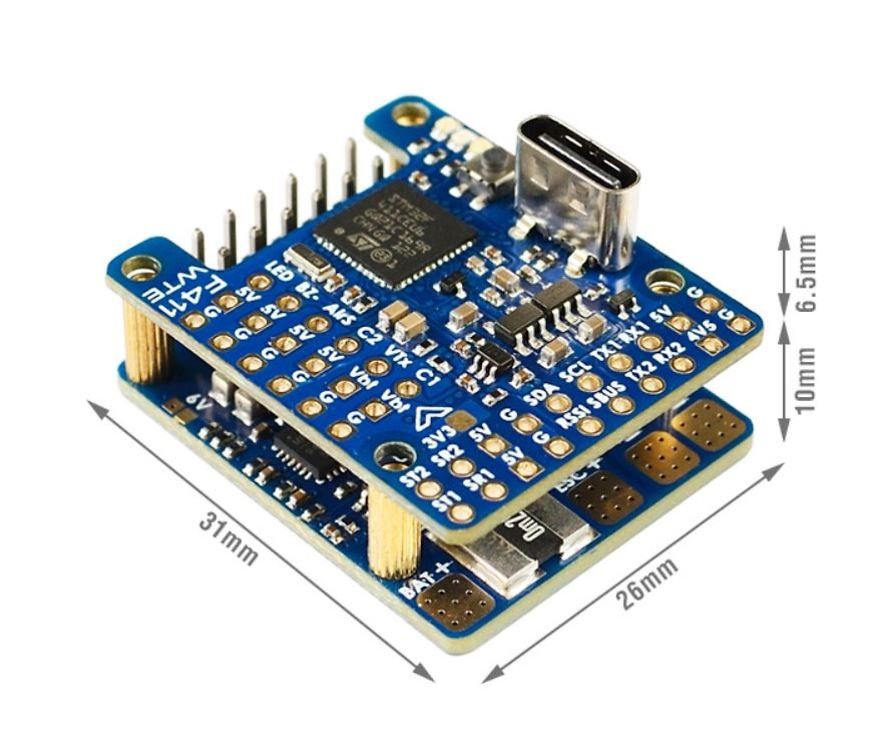

• Dimensions: 31 x 26 x 16.5 mm
• Mounting: 22 x 22mm, Φ2mm
• Weight: 10g

Content

• 1x FC F411-WTE
• Dupont 2.54 pins (board is supplied unsoldered)
