Lumenier LUX F765 FC Flight Controller NDAA

Fresh
Available again from 19.04.25 - preorder now!
  • 109,90 € *
        oder
Mail me as soon as the article is available again

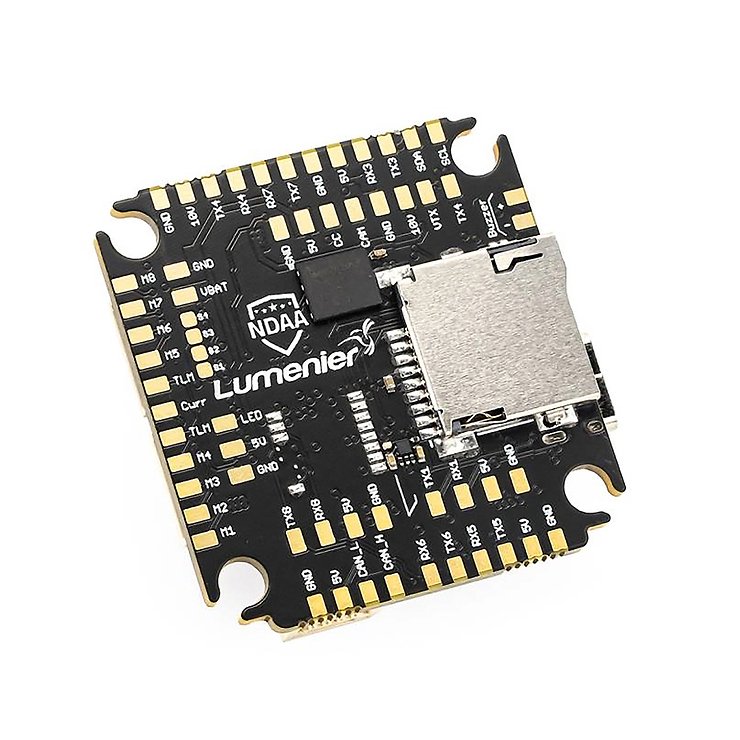

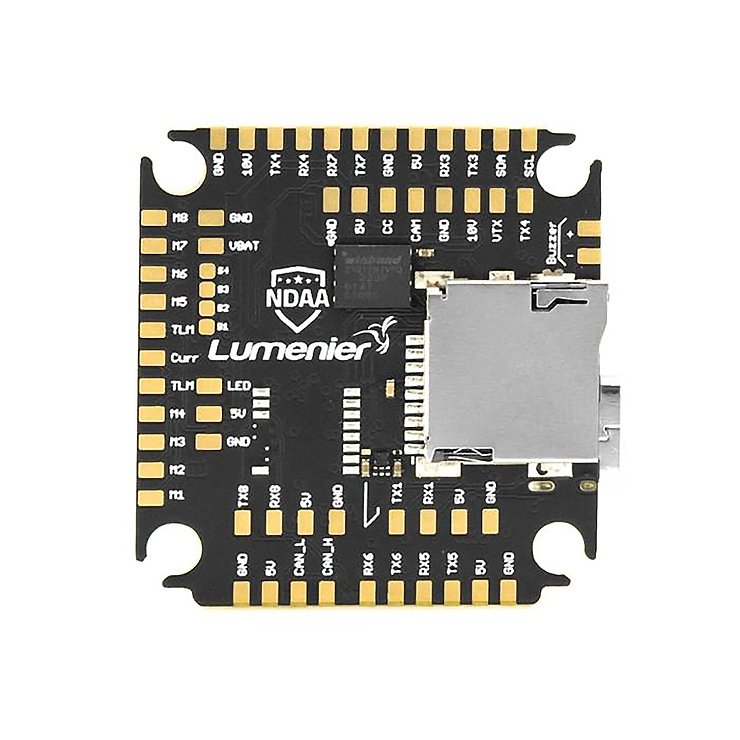

    Lumenier LUX F765 FC Flight Controller NDAA

    Product description

    The Lumenier LUX F765 Flight Controller is the perfect choice for demanding FPV pilots and professional multirotor builds. Thanks to its powerful hardware, full compatibility with Betaflight, Ardupilot and PX4 and NDAA-compliant design, this flight controller offers maximum reliability and safety.

    With its powerful STM32F765 processor (216MHz, 512KB RAM, 2MB Flash), integrated BetaFlight OSD, eight UART ports and CANbus support (PX4 only), the LUX F765 sets new standards in FPV technology. With its USB-C connection, integrated sensors and powerful voltage regulator (10V for VTX, 5V for accessories), it offers optimum functionality for any drone setup.

    Features

    • Compatible with Betaflight, Ardupilot and PX4
    • NDAA compliant and designed in the USA
    • Powerful STM32F765 processor (216MHz, 512KB RAM, 2MB Flash)
    • Integrated BetaFlight OSD for FPV transmission
    • SD card and flash memory for black box data (128Mb flash + SD card slot)
    • I2C port for external sensors
    • CANbus support (PX4 only)
    • 12x motor/servo outputs
    • LED strip control & buzzer output
    • USB-C port for easy configuration
    • 10V regulator for VTX and 5V regulator for accessories
    • Integrated sensors: gyro, accelerometer & barometer
    • Supports 3S to 6S LiPo
    • Lightweight design - only 9g weight
    • Compact dimensions: 38x38x4mm, mounting: 30.5mm x 30.5mm

    Specifications: Processor

    • Processor: STM32F765 (216MHz, 512KB RAM, 2MB Flash)
    • OSD: Integrated analog BetaFlight OSD
    • Sensors: Gyro, Accelerometer & Barometer
    • Power supply: 3S to 6S LiPo
    • Weight: 9g
    • LED indicators: 2x status LEDs (3.3V power and firmware indicator)
    • Voltage regulator:
    • 10V for VTX
    • 5V for accessories
    • Analog inputs: 2x ADC (VBAT and Current)

    Connections

    • 8x UART ports
    • 1x I2C port for external sensors
    • 1x CANbus port (PX4 only)
    • 12x motor/servo outputs
    • LED strip control & buzzer output
    • 1x camera input

    Memory

    • 128Mb Flash
    • SD card slot
    • Mounting:Hole spacing: 30.5mm x 30.5mm
    • Dimensions: 38x38x4mm
    scope of delivery
    • 1x Lumenier LUX F765 Flight Controller - NDAA
    • 1x 63mm 8-Pin JST-SH Kabel
    • 1x 23mm 8-Pin JST-SH Kabel
    • 1x 64mm 6-Pin JST-SH Kabel
    • 1x 75mm 4-Pin JST-SH Kabel
    • 4x M3 Gummitüllen
    Order number GET-22726
    EAN 724376363797
    Manufacturer Lumenier
