Lumenier LUX F4 HD Ultimate FC Flight Controller
Lumenier LUX F4 HD Ultimate FC Flight Controller

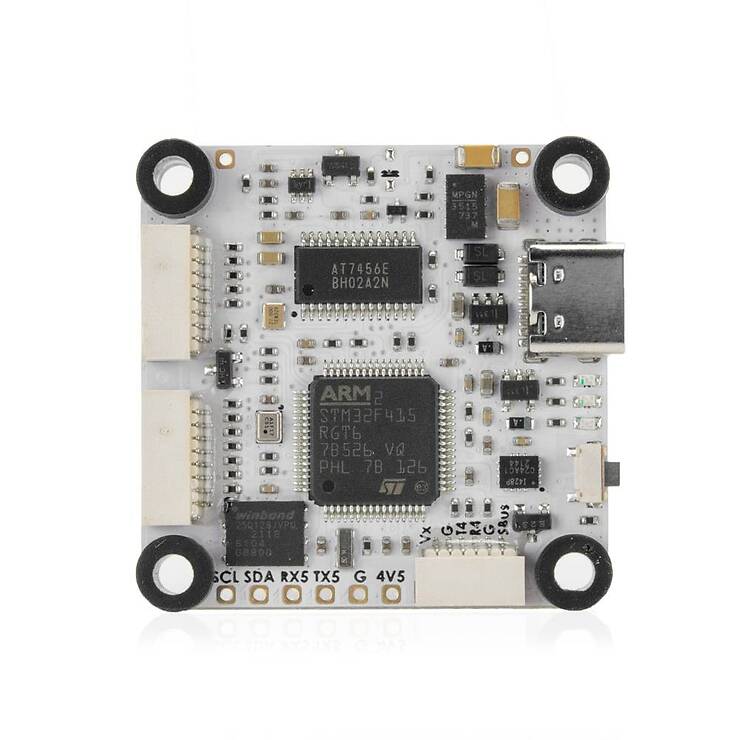

The Lumenier LUX F4 HD Ultimate Flight Controller is an advanced and powerful flight controller from Lumenier. It uses a fast and reliable F4 processor along with high quality hardware components. Unleash the capabilities of your Cinema (Cine-Lifter) drone or FPV racing quadcopter with the Lumenier LUX F4 Ultimate Flight Controller. The LUX F4 is packed with features like a connector for the DJI HD system, 3rd generation IMU ICM42688-P, two plug-and-play 4in1 ESC ports, 12x PWM outputs, barometer, OSD, 6x UARTs, 9-16V BEC, two analog camera inputs, easy soldering layout and much more!
The LUX F4 builds on the best features of its predecessors and further improves the hardware components and layout. You get an incredible 6x dedicated UART ports along with onboard memory for black box data logging. In addition, the LUX F4 can handle up to 12 PWM signals at once! This means it can easily support an Octo-Copter, X8 or something even more creative with up to 12 PWM outputs. Eight of these outputs are plug-and-play with dual 4in1 ESC connectors directly on the flight controller. Dual 4in1 ESC stacks + FC is now super simple and clean with plug-and-play configuration.
The integrated BetaFlight OSD makes it super easy to view important information on your FPV display, such as battery voltage, flight time, alerts, RSSI, smart audio and more. Prefer to fly digitally? No problem, just output the OSD data via an open UART on the plug & play harness for the DJI FPV Air Unit.
The features don't stop there! The LUX F4 is capable of handling 2 analog camera signals, with a built-in switching function. This means you can run 2 cameras at the same time and assign a switch via the PINIO function in Betaflight to switch between the 2 feeds by flipping a switch. Installing a front and rear camera has never been easier!
Have you ever been in an FPV race where you need to connect your quad, but you don't want to send an FPV signal to get your friends out of the air? Or how about when you need to crash and save your VTX from burning in the hot sun? With the LUX F4, you can turn your VTX on or off with a switch on your radio! The LUX has an integrated 3A 9-16V regulated power pad designed to power your video transmitter (like DJI FPV Air Unit). Using the PINIO resource, you can assign this pad to a switch on your radio to remotely control the power source for your video transmitter.
Long range quad and FPV pilots will also love the Lumenier LUX F4. It has all the features you need to take full advantage of long range and autonomous flight technology. The LUX F4 has an integrated barometer, buzzer pad, I2C pad, Ardupilot support, iNAV support, GPS/compass pads, and up to 12 PWM inputs for a variety of servo and motor controls.

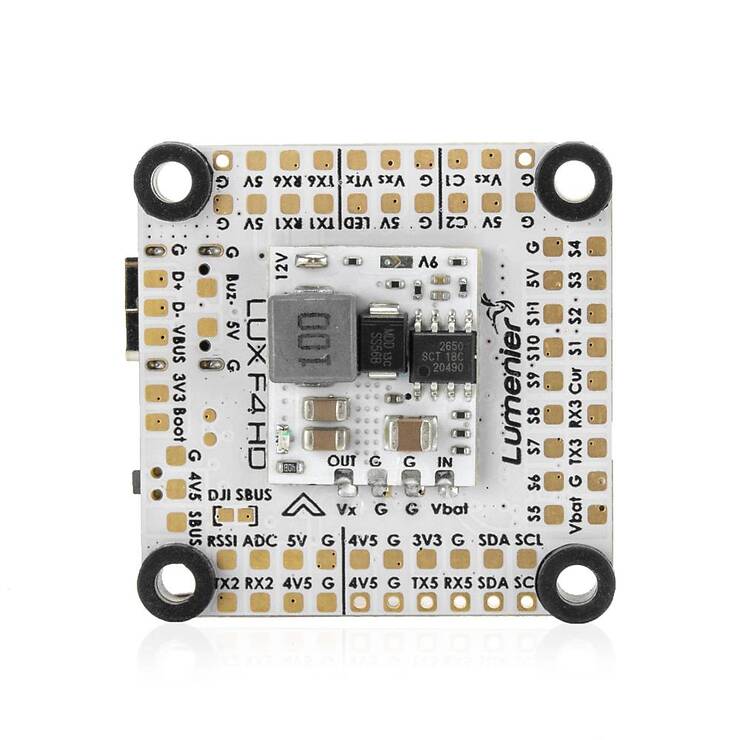

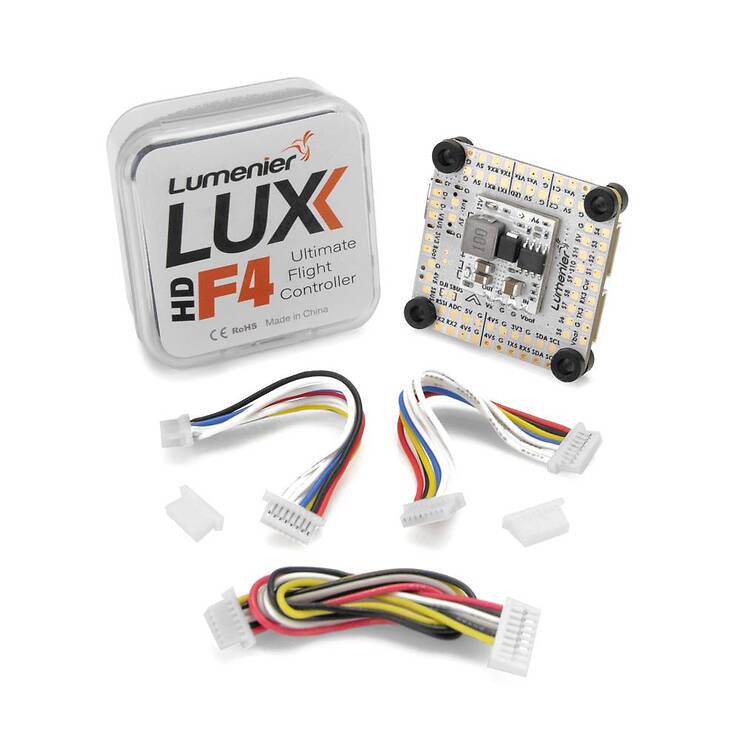

The Lumenier LUX F4 Ultimate is a very low-profile board that can be mounted in a variety of ways. Signal cables can be soldered directly to the breakout pads to save size and weight, or use the included plug-and-play cables. The LUX supports PPM or serial RX (including FrSky, S.BUS, DSMX, etc.).
Features
Specifications
Power supply
Dimensions
Content
| Order number | GET-18131 |
|---|---|
| EAN | 4260691177252 |
| Manufacturer | Lumenier |
