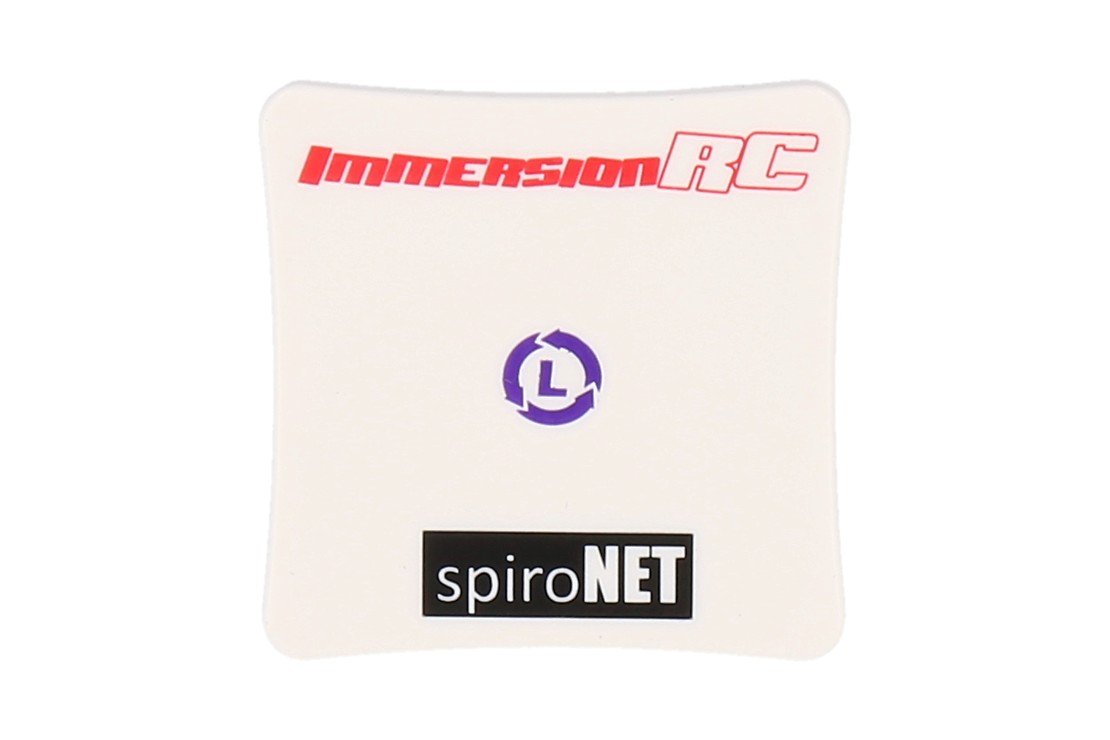

Name: Fatshark / ImmersionRC SpiroNet 5G8 Mini Patch FPV Antenna 8dBi LHCP
Brand: ImmersionRC
SKU: IRC-SN5G8LHPATCH8
Price: 24.90 EUR
Availability: OutOfStock

Fatshark / ImmersionRC SpiroNet 5G8 Mini Patch FPV Antenna 8dBi LHCP

Product description

This 5.8GHz Left-Hand (LHCP) Circular Polarized patch antenna is custom-designed with no expense spared for the FPV market. Light enough to be mounted directly on LCD headset, or directly onto the front of one of our Uno, or Duo receivers.

Precision manufactured with very tight tolerances, * each antenna * is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance
SMA male connector compatible with all FatShark / ImmersionRC 5.8GHz products sold to date
Left-hand circular polarization
5.8GHz ISM band
8dBi gain
Beam width -3dB at +/- 45 degrees (H + V) (90 degree total)
F / B Ratio> 356dB
VSWR <1: 1.35 at 5800MHz
Impedance 50 ohms
Weight 7g

Order number	IRC-SN5G8LHPATCH8
EAN	0840630180662
Manufacturer	ImmersionRC
