iFlight SucceX-D Mini F7 Twing FC & SucceX Mini 40A 4in1 ESC Stack

iFlight SucceX-D Mini F7 Twing FC & SucceX Mini 40A 4in1 ESC Stack

Product description

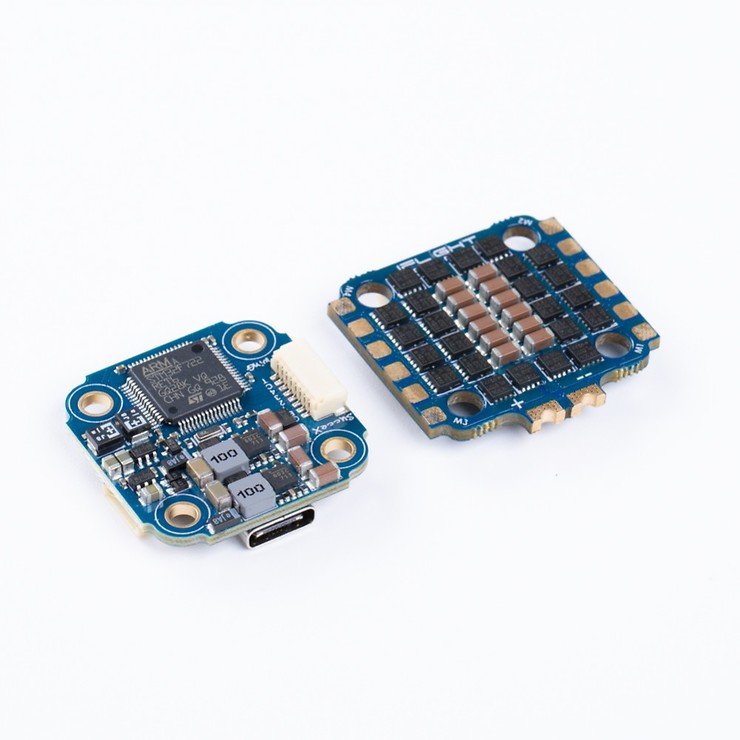

iFlight SucceX-D Mini F7 Twing FC & SucceX Mini 40A 4in1 ESC Stack

The SucceX-D Mini F7 is designed to work seamlessly with DJI's new HD FPV system. To make things even easier, the DJI Air unit can be easily connected to the FC with the included wiring harness. In addition, we've added the popular and reliable USB Type-C instead of Micro-USB, making it the same standard as your DJI module.

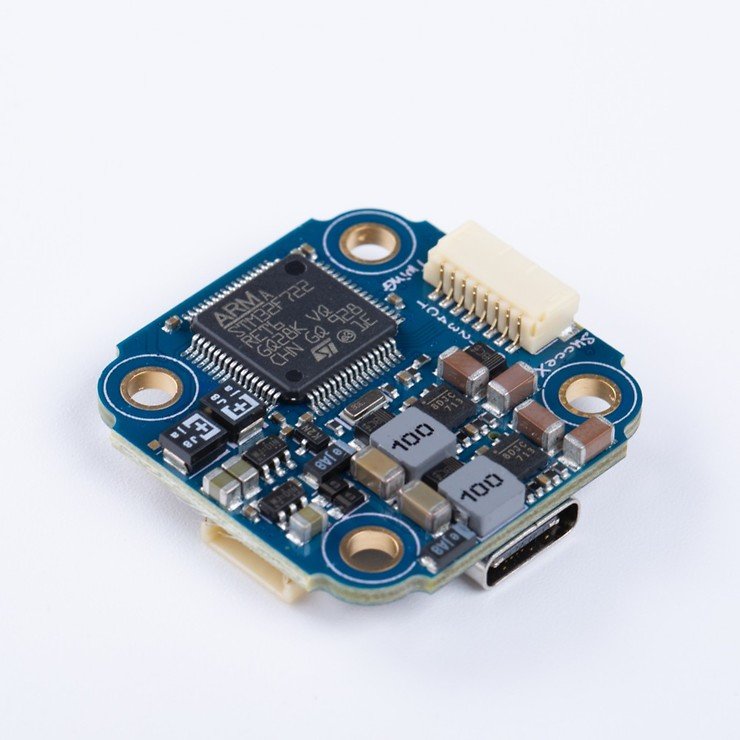

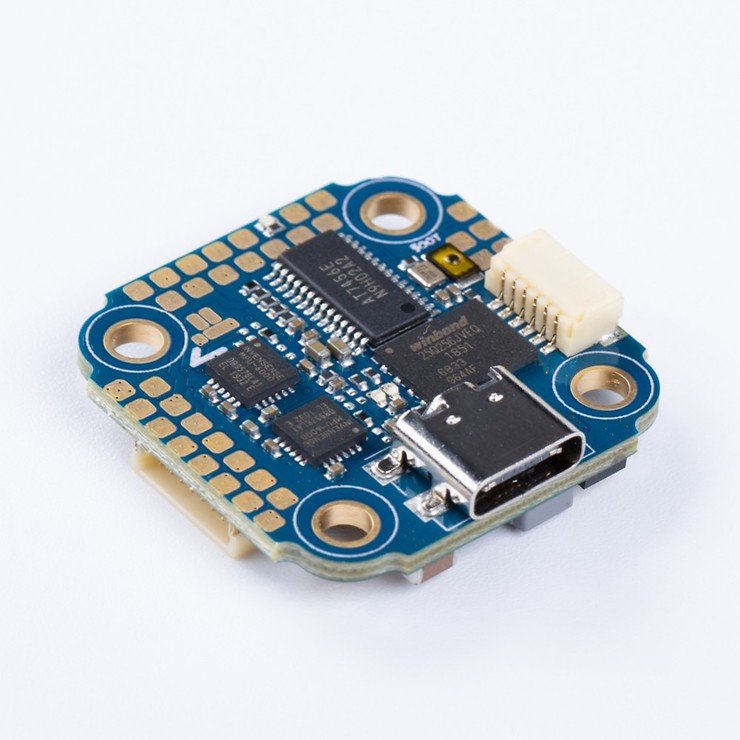

Technical data FC

• MCU: 216MHz STM32F722
• Gyro: 2x ICM20689
• Blackbox: 32MB
• Betaflight OSD: Yes
• BEC: 5V 2.5A / 9V 2.5A
• Current sensor scale: 100
• Inverter for SBUS input (UART2-RX)
• Smartaudio & Tramp VTX protocol supported
• Beeper pad: Yes
• RSSI input pad: No
• UARTs：5
• Motor outputs: 4
• 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)
• 6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)
• BLHeli32 Telemetry：RX5
• Voltage: 2-6S, Maximum 6S
• Firmware target: IFLIGHT_F722_TWING
• Drill holes: 20x20mm 3mm diameter
• Weight: 29x29mm

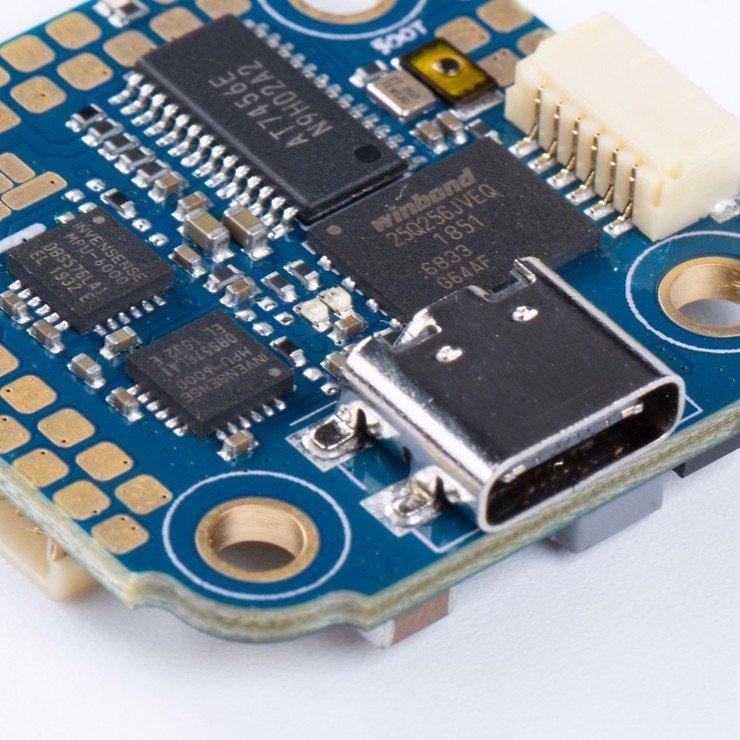

• USB type-C

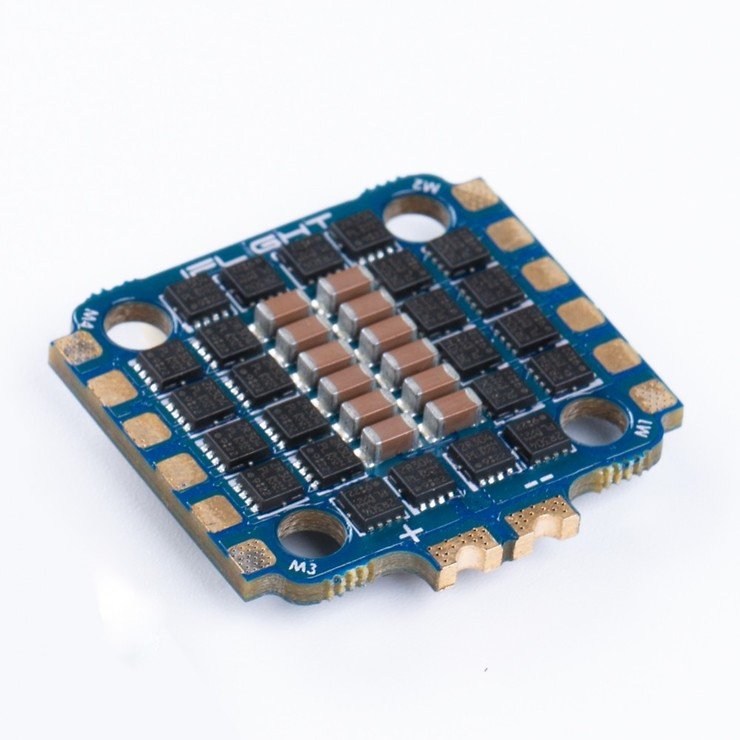

Technical data ESC

• MCU: STM32F051K66
• Up to 48kHz PWM frequency
• Capacitor: 470uF/50V
• Voltage sensor: Yes
• Voltage: 2-6S
• Current flow: 40A / Burst: 50A
• BlHeli32 telemetry: Yes
• Up to Dshot1200, Proshot, Oneshot, Multishot
• Target: iFlight-BL32-4IN1
• Weight: 7.2g
• Drill holes: 20x20mm 3mm diameter / 2mm diameter with rubber bumpers
• Size: 31x31mm

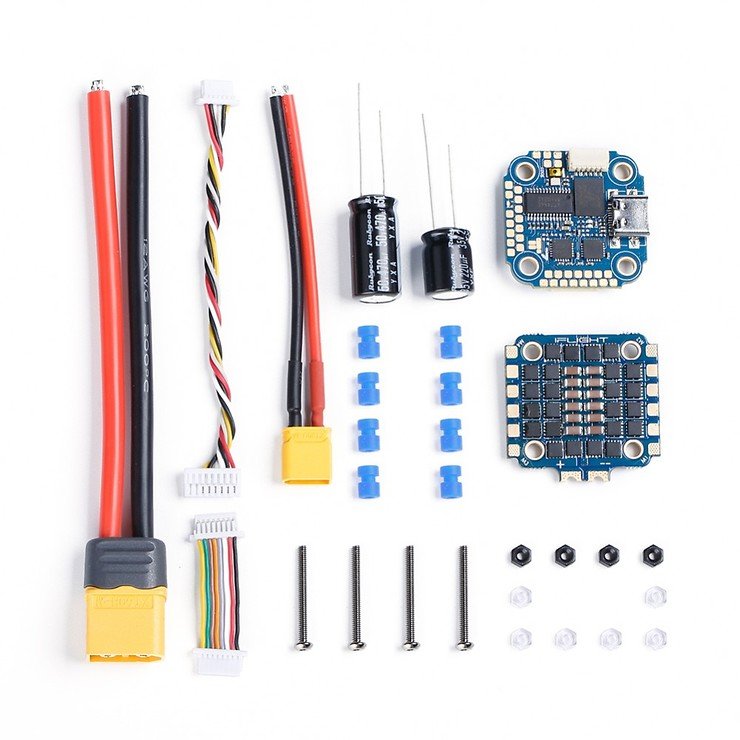

Content

• SucceX-D F7 Mini TwinG Flight Controller
• SucceX Mini 40A 4in1
