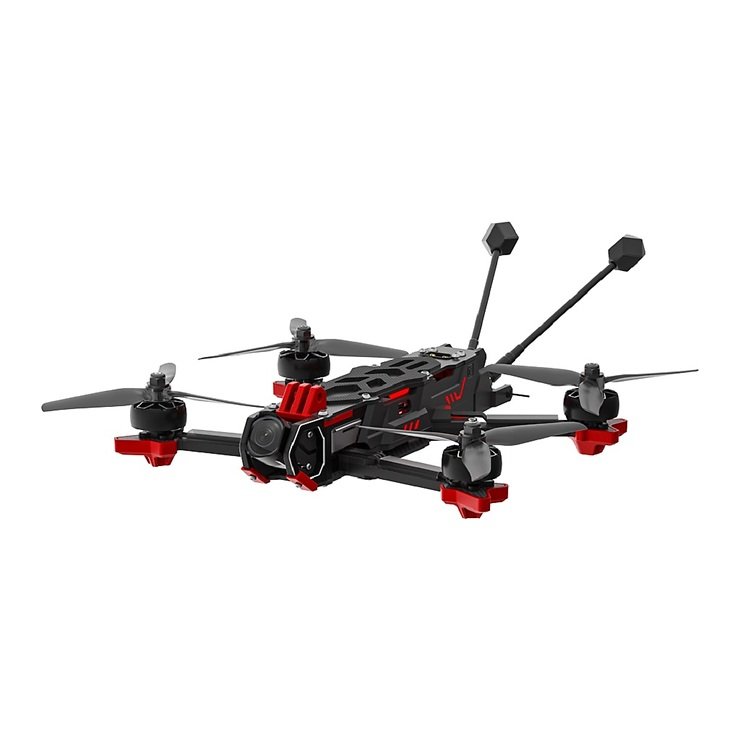

iFligh SH CineFlow 5 DJI O4 6S HD RX 2.4GHz ELRS

iFligh SH CineFlow 5 DJI O4 6S HD RX 2.4GHz ELRS

Product description

The iFlight CineFlow 5 O4 HD is the latest generation of FPV drone that combines advanced design, easy maintenance and a powerful electronics system. Featuring the DJI O4 Pro Air Unit for crisp, propeller-free video and a 1/1.3-inch image sensor, this drone offers 4K quality, stunning low-light detail and an ultra-wide 155° angle - perfect for stunning aerial shots.

Whether you want to perform freestyle tricks, high-speed races or long-distance flights, the CineFlow 5 is designed to meet versatile flight requirements with the highest precision and reliability.

Key features of the CineFlow 5

• Innovative H-shaped frame design: No distracting propellers in the field of view for flawless shots and optimized freestyle tricks.
• Powerful video transmission: DJI O4 Pro Air Unit with up to 15 km transmission range (FCC) and 1080p/100fps live view quality.
• Quick-release side panels: Simplified maintenance and protection from dirt as well as tidy cable routing.
• High-precision GPS module: Increases safety, reduces flyaway risks and ensures stable flights.
• Minimal hover throttle: 17% takeoff throttle for extreme maneuverability during high-speed chases or acrobatics.
• Integrated action camera mount: Perfect for additional GoPro or other camera footage.
• Improved durability: Reinforced connection points on the arm bases for longer life.

Product specifications

General specifications

• Product name: CineFlow 5 O4 HD BNF
• Frame geometry: H-shaped
• Wheelbase: 222 mm
• Weight: 488g ±5g (without battery)
• Take-off weight: approx. 733g ±5g (with 6S 1400mAh battery)
• Dimensions (L×W×H): 182 × 133 × 42 mm
• Max. Speed: 190 km/h
• Maximum flight altitude: 7000 m
• Max. Flight time: approx. 12 minutes
• Max. Flight distance: 5 km
• Wind resistance: Level 7
• Temperature range: -20 °C to 40 °C

Flight electronics

• Flight controller: BLITZ Mini F7
• ESC: BLITZ Mini E55R 4-in-1 ESC (65A max. burst current)
• Motors: XING2 2207 2050KV
• Propeller: Nazgul F5

Video transmission - DJI O4 Air Unit Pro

• Image sensor: 1/1.3-inch
• Video resolution: 1080p at 100fps (live view), 4K at 30fps (recording)
• Wide angle: 155° FOV
• Stabilization: RockSteady 3.0+
• Max. transmission range: up to 15 km (FCC)
• Built-in memory: 4GB
• Supported SD cards: microSD up to 512GB
