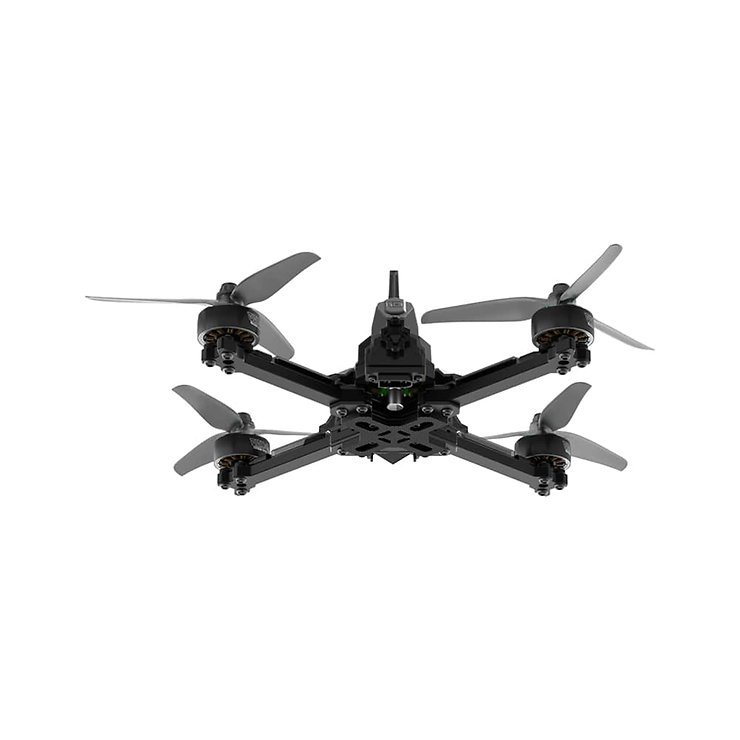

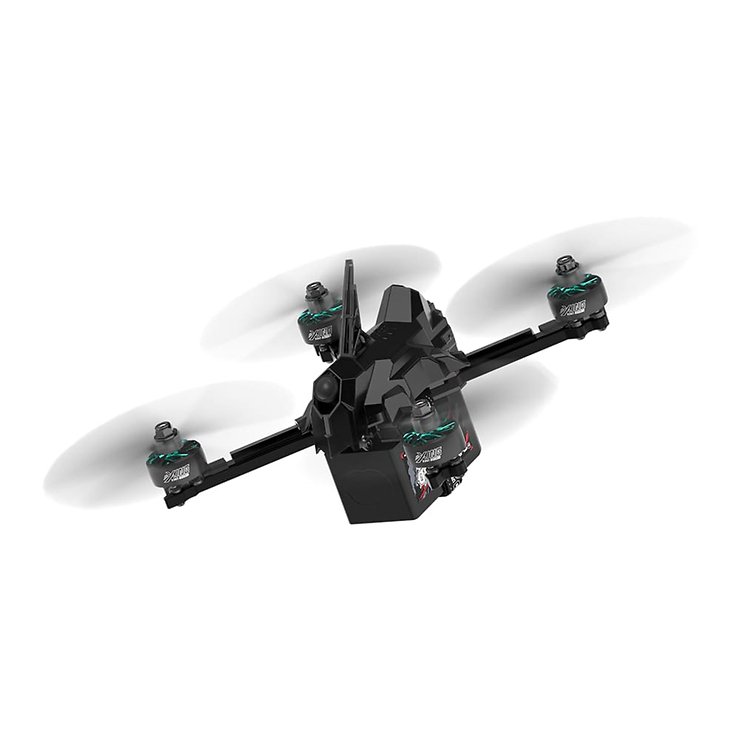

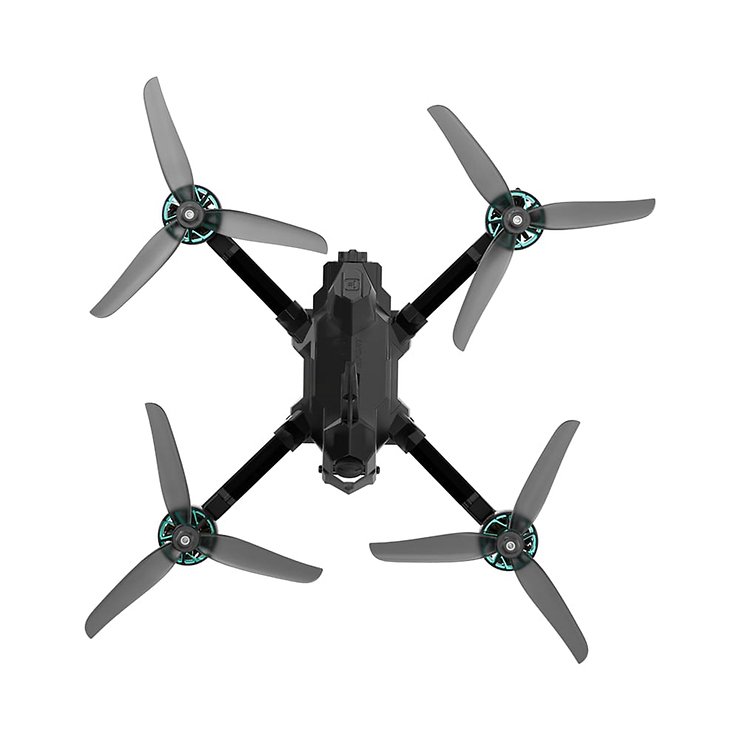

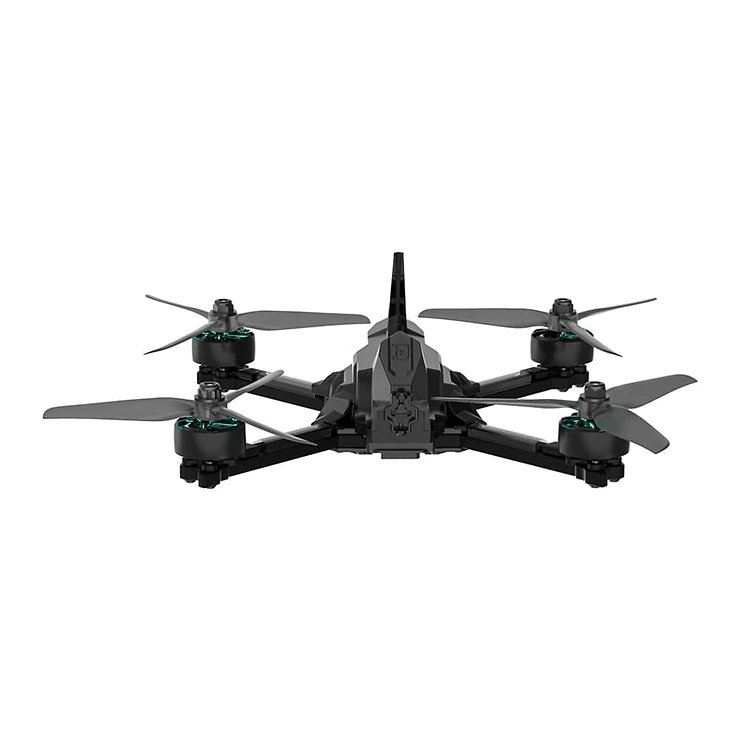

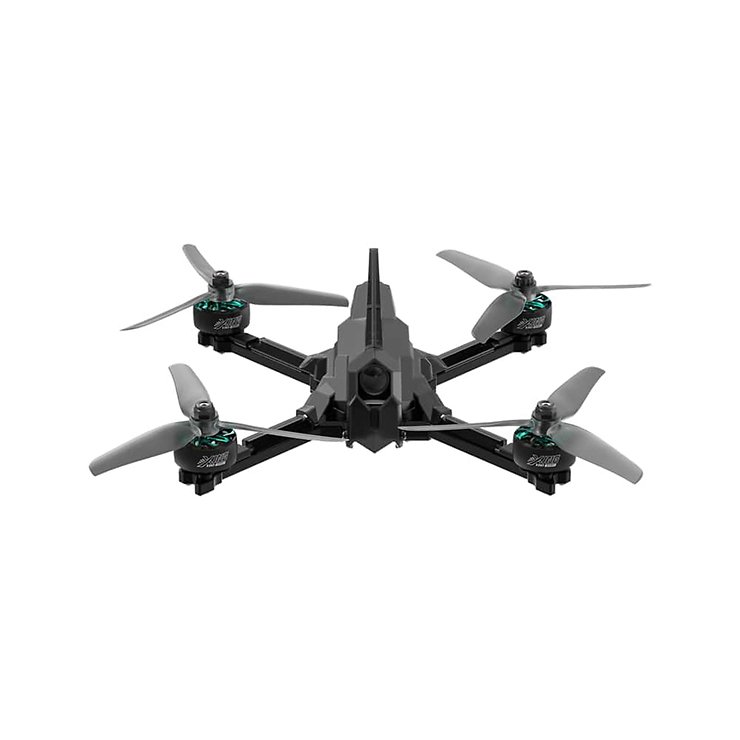

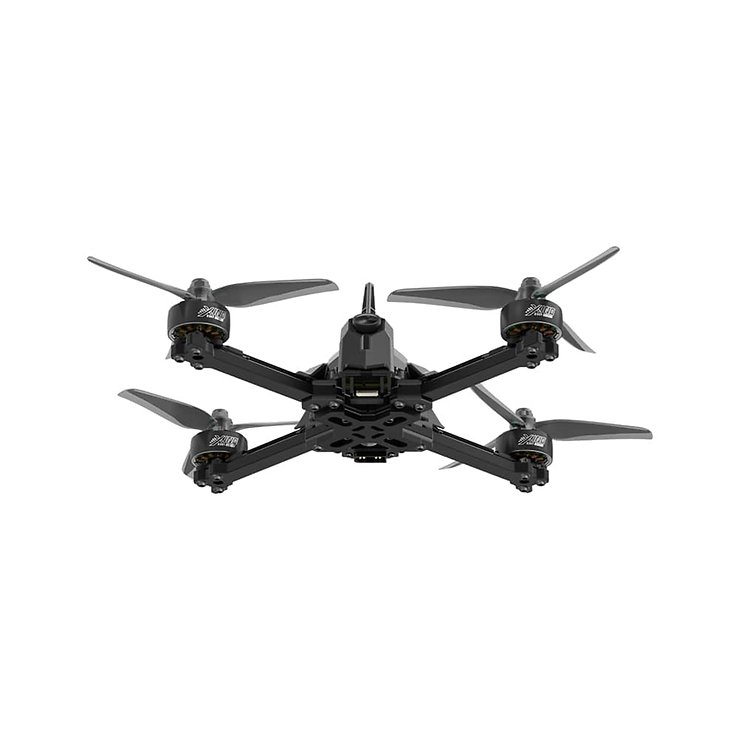

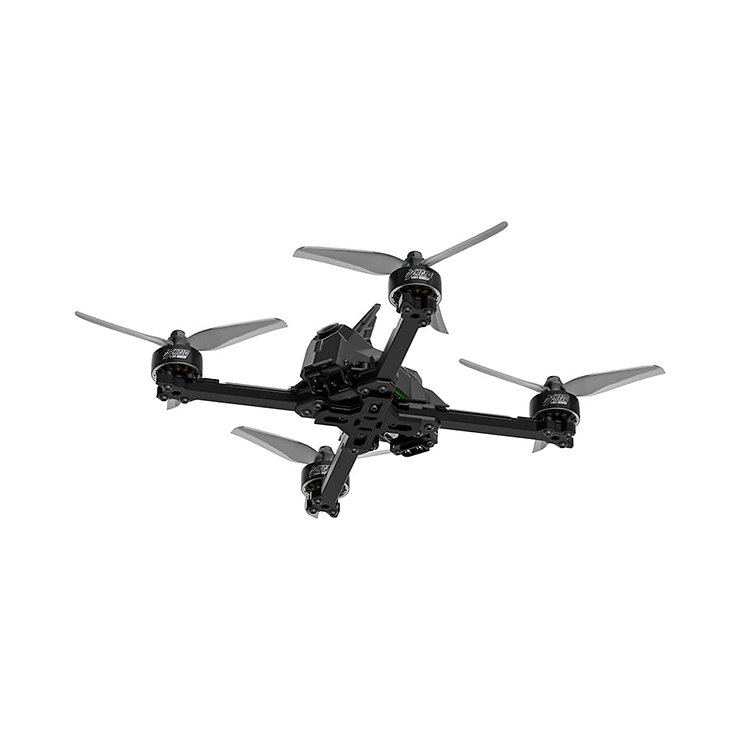

iFlight Mach R5 Sport 6S Race Drone Copter FPV TBS Crossfire

iFlight Mach R5 Sport 6S Race Drone Copter FPV TBS Crossfire

Product description

The Mach R5 Sport aims to provide race pilots with a high-quality ready-made FPV drone while allowing for individual DIY customization. By using carbon fiber panels and plastic components, the layout of the internal structure has been significantly improved. This not only facilitates maintenance, but also reduces the weight of the drone and improves overall stability. The organized space layout guarantees that hardware components can be logically positioned to minimize the risk of damage from crashes.

Highlights: Lightweight and compact

As a well-built 5-inch drone, the Mach R5 Sport weighs only 300 grams. Its redesigned frame design ensures a precise fit of all components within the cockpit, maximizing space utilization and overall compactness.

Innovative Quick-Release Aero Shell

The unique cockpit is not only aerodynamically designed, but also features a quick-release buckle for easy replacement and maintenance with just one turn. The shell also protects the electronics from dirt and moisture so you can have more confidence in critical situations.

Comfortable user experience

Secure battery connection to prevent the power cable from being hit by the propellers and with an integrated antenna to keep everything well protected and improve the overall appearance.

The front-mounted receiver slot simplifies receiver replacement, and the new design of wire protection tube can place LED strips for shielding and effectively prevent damage.

DIY customizable

Standard 20*20 mounting holes, compatible with HDZERO and other VTX.

Antenna bracket can be supplemented with silicone pads to adapt to regular VTX antennas.

The canopy cover is available in carbon fiber plate with TPU and can be replaced by removing 6 screws.

Specifications

• Product name: Mach R5 Sport 6S Analog
• FC: BLITZ Mini F722 flight controller
• ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC
• Video transmission: BLITZ Force VTX
• Frame: 210mm wheelbase
• Motor: R5 2207 2050KV motors
• Prop: Nazgul R5 V2 propeller
• Take-off weight: Approx. 295 g (without battery)
• Dimensions (L × W): 148 * 148 * 51 mm
• Max. Speed: 208 km/h
• Maximum take-off and landing altitude: 6000 m
• Maximum hover time: Approx. 12 minutes (with 6S 1400mAh, without load)
• Maximum wind speed resistance: Level 6
• Operating temperature range: -10° to 40° C (14° to 104° F)
• Antennas: Single antenna
• Receiver: TBS Crossfire Nano RX
