iFlight BLITZ Mini F7 V1.2 FC

iFlight BLITZ Mini F7 V1.2 FC

Product description

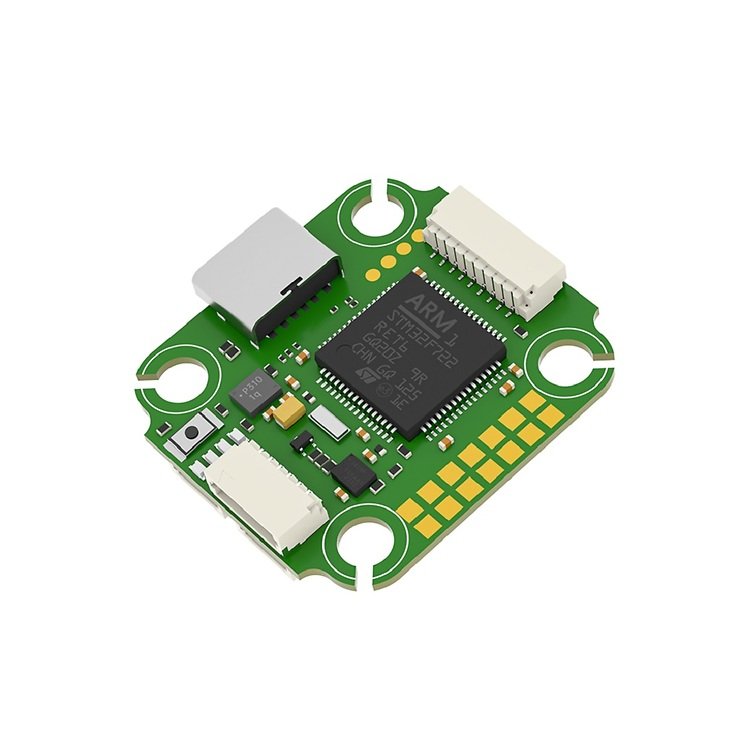

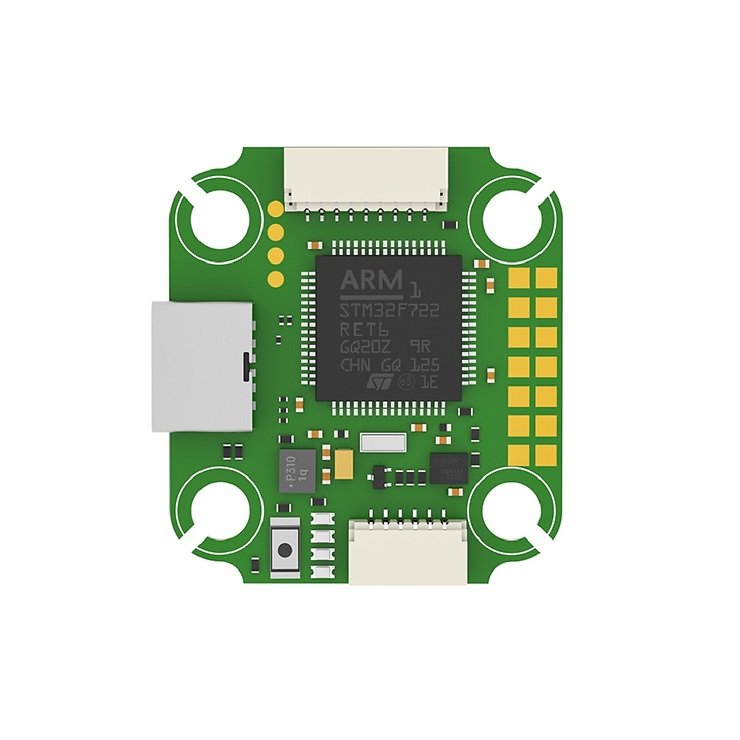

iFlight BLITZ Mini F7 V1.2 FC

Experience a significant performance boost for your drone with this advanced flight controller. With an optimized circuit design, high-quality components and reduced electrical noise, this controller is designed to provide a superior flight experience with improved stability and efficiency.

Key features:

• Optimized circuit design: Improved components and reduced electrical noise for smoother operation.
• DJI HD VTX connector: Provides plug-and-play functionality without soldering, simplifying the installation process.
• FC Indicator LEDs: Useful for visual troubleshooting, providing instant visual feedback on the status of the flight controller.
• Comprehensive connectivity: Supports Smartaudio/IRC Tramp VTX protocols and has six UARTs for connecting versatile peripherals.

Detailed specifications:

• MCU: STM32 F722, known for its robust performance and reliability.
• Gyro: ICM42688, provides precise motion sensors.
• Barometer: DPS310, for accurate altitude measurements.
• OSD chip: AT7456, enables clear and customizable screen displays.
• Flash memory: 8MB for black box data storage, essential for tuning and troubleshooting.
• Motor outputs: 4x, with SH1.0 connectors for easy motor connections.
• I2C serial: SDA/SLA pads, allows integration of additional sensors.
• LED controller and beeper pad: For improved visual and acoustic signaling.
• Firmware target: IFRC-IFLIGHT_BLITZ_F722, optimized for reliable and responsive performance.
• Mounting pattern: 20x20 mm with 4mm PCB hole diameter; including silicone rubbers for M3 screws.
• Dimensions: 30.5x27mm, compact and lightweight design for a variety of drone frames.
• Weight: 5g, adds minimal weight to your configuration.

Wiring suggestions:

• UART 1: Dedicated for VTX HD / Analog connections.
• UART 2: Ideal for a receiver.
• UART 3/4/5: Suitable for GPS or other sensors that require a serial port.
• UART 6: For ESC telemetry, provides real-time data from the motors.

This flight controller is an excellent choice for both hobbyists and competition pilots looking for a powerful, easy-to-integrate solution that increases both the functionality and reliability of their drones.
