HGLRC Specter F411 12A 2-4S AIO

HGLRC Specter F411 12A 2-4S AIO

Product description

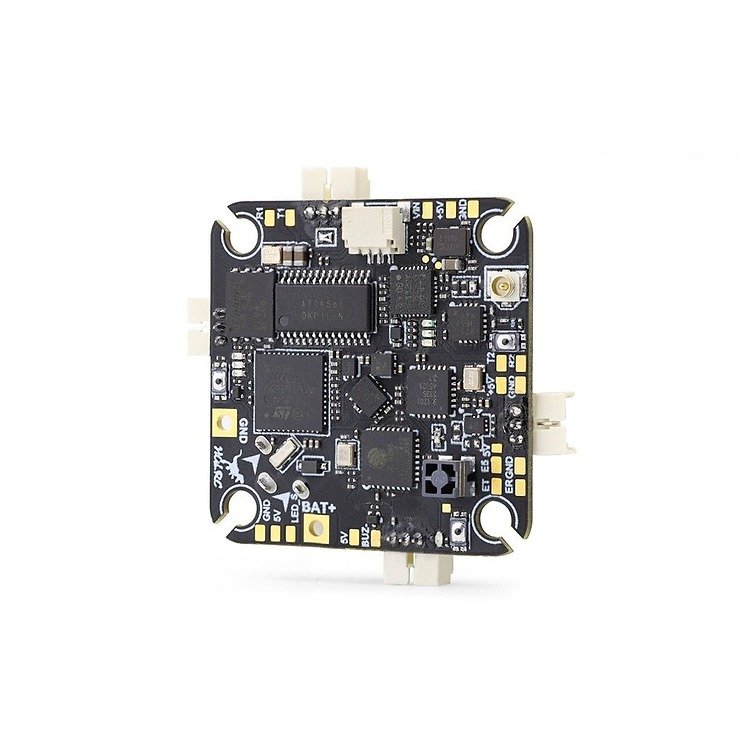

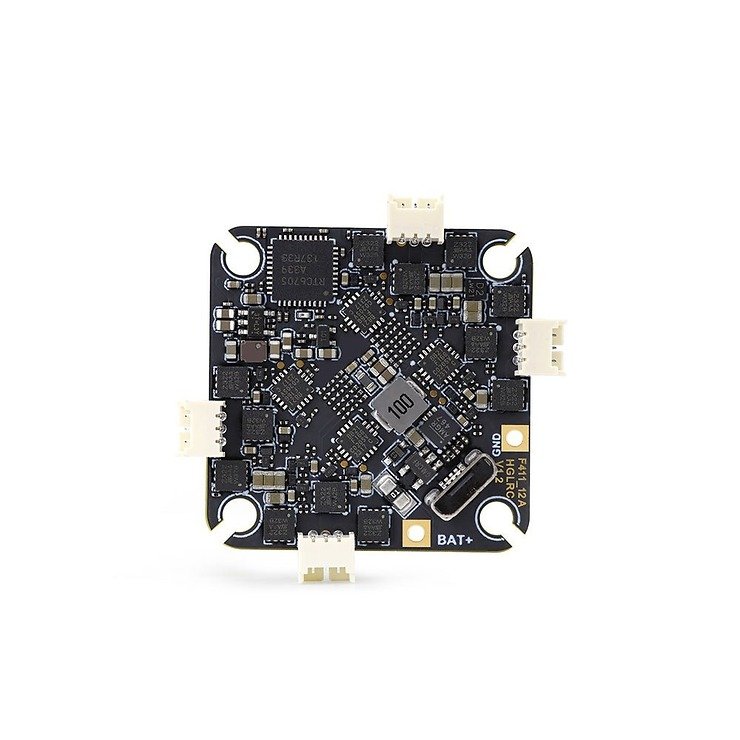

The HGLRC Specter F411 12A AIO is a versatile all-in-one solution for FPV drones. This board combines a flight controller (FC), electronic speed controllers (ESCs), a video transmitter (VTX) and a receiver in a compact design. With support for 2-4S Lipo batteries, it is ideal for 2-3" Toothpick drones and other lightweight models. The integrated STM32F411 processor and ICM42688P gyro provide precise flight control. Thanks to the Bluejay ESC firmware, currents of up to 12A (15A for short periods) can be processed. The ELRS receiver offers reliable connectivity via UART and the VTX supports video transmissions of up to 400mW.

Highlights

• MCU: STM32F411
• MPU: ICM42688P
• Operating voltage: 2-4S
• Integrated 5V BEC
• 16MB black box memory
• ELRS receiver with UART
• Bluejay ESC firmware
• Video transmitter power: up to 400mW
• Weight: 5.6g

Specifications: STM32F411

• Processor: STM32F411
• Gyro: ICM42688P
• Input voltage: 2-4S Lipo
• BEC: 5V/1.5A
• Memory: 16MB Blackbox
• Receiver: 2.4GHz ELRS via UART2
• Current: 12A (briefly up to 15A)
• ESC firmware: Bluejay
• Video transmitter: RCE/25/100/400mW
• Mounting holes: 25,5x25,5mm M2
• Size: 32x32mm
• Weight: 5.6g
