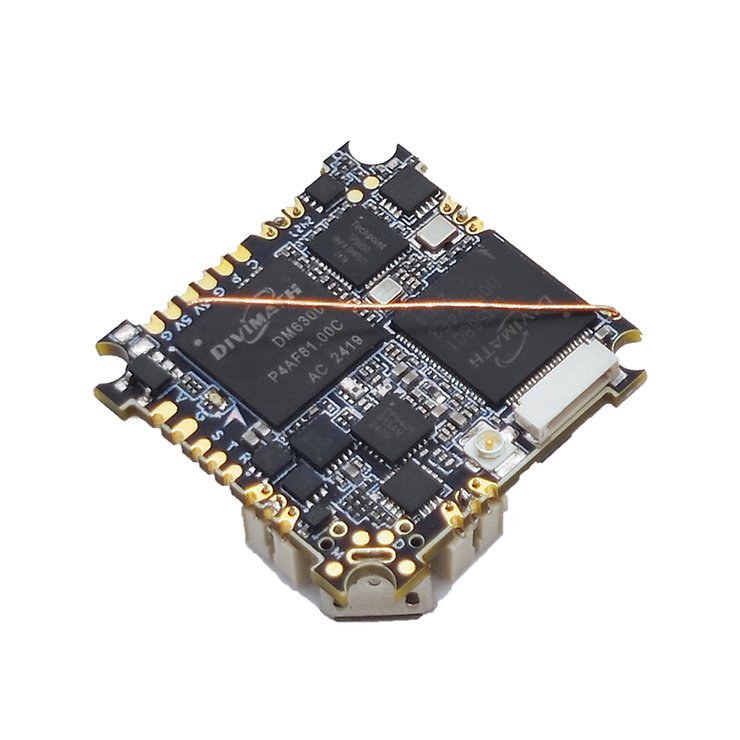

HDZero AIO5 F4 Flight Controller VTX ELRS 1S 5A

HDZero AIO5 F4 Flight Controller VTX ELRS 1S 5A

Product description

The HDZero AIO5 is the world's first all-in-one (AIO) digital video module that allows you to build bind-and-fly 65mm hoops weighing less than 19.4g. The AIO5 integrates an F4 flight controller, an HDZero 5.8GHz digital video transmitter, an SPI 2.4GHz ExpressLRS 3.0 receiver, a DSHOT protocol 4-in-1 ESC and a 5V/1A BEC.

An improved minimum voltage of 2.5V ensures that the video signal does not drop out before the motors, ensuring reliable image transmission at all times. Using a single, thick PCB instead of a 2-stage stack improves durability and simplicity - ready for a new era of uncompromising whoop flying with crisp digital video!

The HDZero AIO5 is the result of an outstanding collaboration between Happymodel and HDZero. It is available at leading FPV dealers worldwide and in the official online stores of Happymodel and HDZero.

Specifications

• MCU: STM32F411 (100 MHz, 512 KB Flash)
• Gyro: BMI270
• Integratedvoltage and current measurement
• ESC: Integrated 5A (per output) BLHeli_S 4-in-1 ESC
• ESC-MCU: EFM8BB21
• ESC current consumption: 5A continuous, 6A peak (for 3 seconds)
• Firmware ex works: O_H_5_48_V0.19.2.HEX
• Dshot support: Dshot600
• HDZero VTX: Integrated, 5.8GHz
• RF output power: 25mW/200mW
• Supported channels: R1-R8, F2/F4, L1-L8
• Connection: UFL (including ultra-light linear antenna)
• SPI ExpressLRS receiver: 2.4 GHz integrated
• Paket-Raten-Optionen: 25Hz/50Hz/150Hz/250Hz/500Hz
• Telemetry output power: <12dBm
• Integrated 5V 1A BEC
• Firmware target of the flight controller: CRAZYBEEF4SX1280
• Power supply: 1S battery (2.5V - 4.35V)
• Compatibility: Fully compatible with common whoop frames
• Dimensions: 28.5 x 28.5 mm with 25.5 x 25.5 mm mounting hole size
• Weight: 5.7g (without motor connector), 6.3g (with motor connector)
