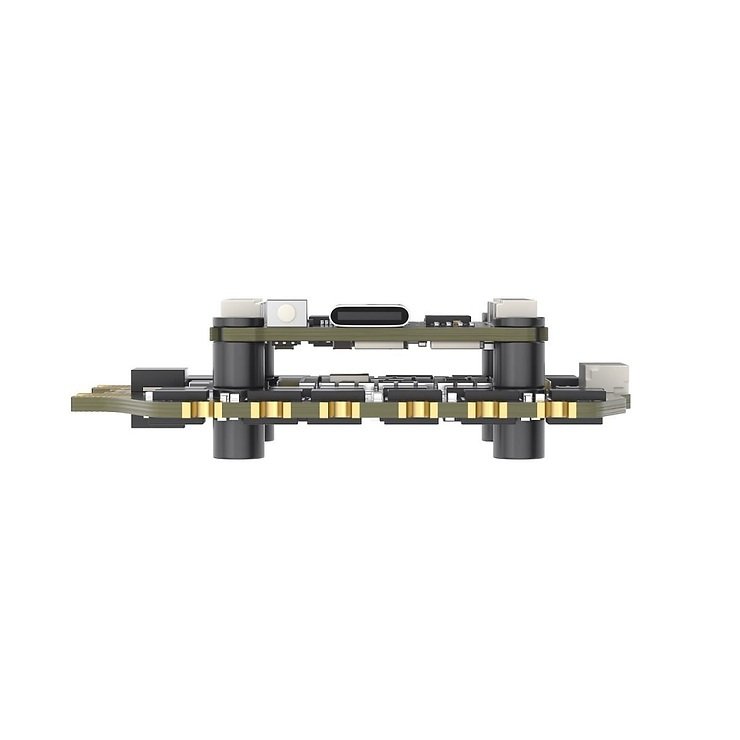

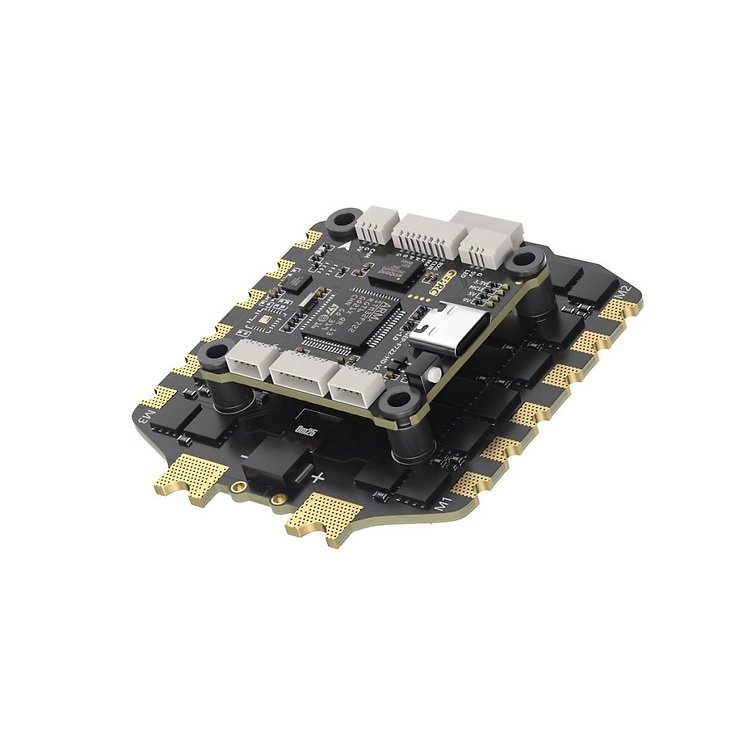

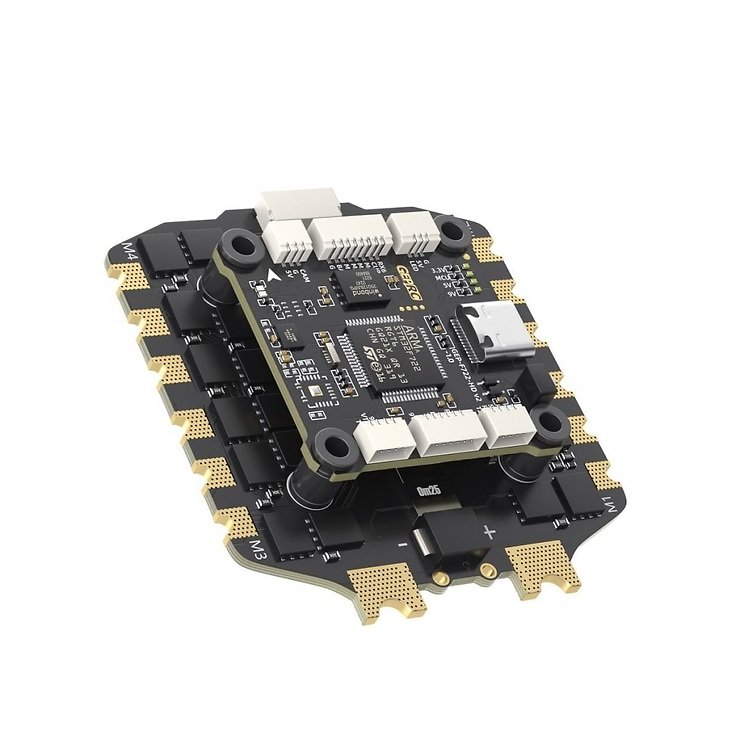

GEPRC Taker F722 BLS 80A V2 FPV Stack

GEPRC Taker F722 BLS 80A V2 FPV Stack

Product description

The Taker F722 BLS 80A V2 stack from GEPRC is a powerful combination of flight controller and ESC, designed for FPV drone pilots looking for maximum performance and stability. The stack uses the STM32F722 chip and is equipped with the latest ICM42688-P gyroscope for precise flight control and stability. A special highlight is the direct connection option to the DJI Air Unit, which simplifies the setup and ensures high compatibility. The stack is also equipped with an integrated LC filter and dual independent BECs, which ensure a stable power supply for all components. The TAKER H80_BLS ESC also offers a load capacity of up to 80A continuous current and supports Dshot protocols, which enables smooth flight performance.

Features

1. Utilizing the mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box memory
4. Integrated LC filter
5. Type C USB interface upgrade
6. Can be connected directly to the DJI Air Unit
7. With TAKER H80_BLS 80A 4IN1 ESC, dual MOS, high current, silky smooth flight
8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stable
9. 9V@2.5A + 5V@3A dual independent BEC

Technical data

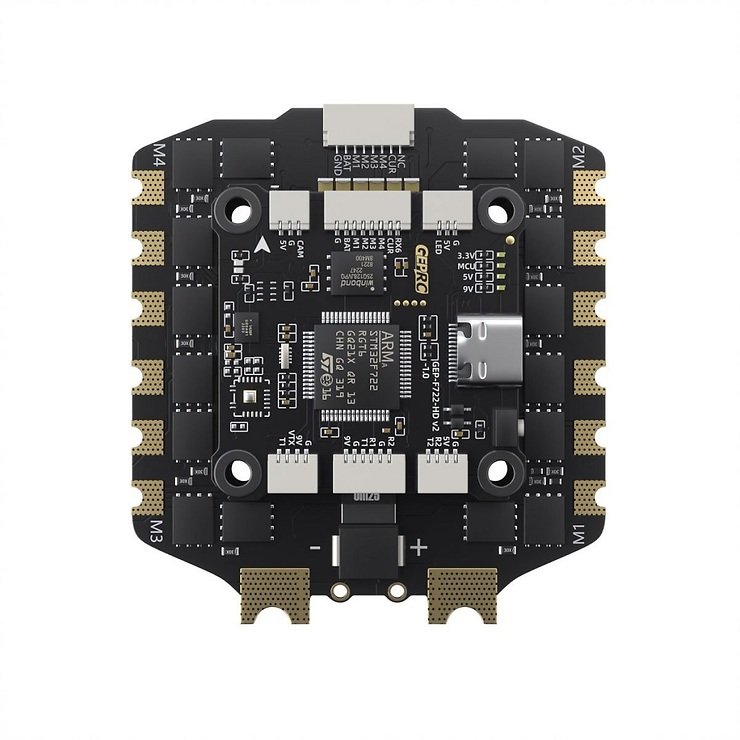

GEP-F722-HD v2 flight controller

• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• Air unit connection: Plug directly into the DJI air unit
• Black box: 16 MB onboard
• USB interface: Type C
• Barometer: Support
• OSD: BetaFlight OSD with AT7456E chip
• BEC: 5 V at 3A,9V@2.5A, dual BEC
• Firmware target: GEPRCF722
• Size: 36.85 × 36.85 mm, hole 30.5 × 30.5 mm, 4 mm diameter hole becomes a 3 mm diameter hole after using a shock-absorbing silicone ring.
• Input voltage: 3-6S LiPo
• UART: 5
• Power filter: Integrated LC filter
• Weight: 8.1 g

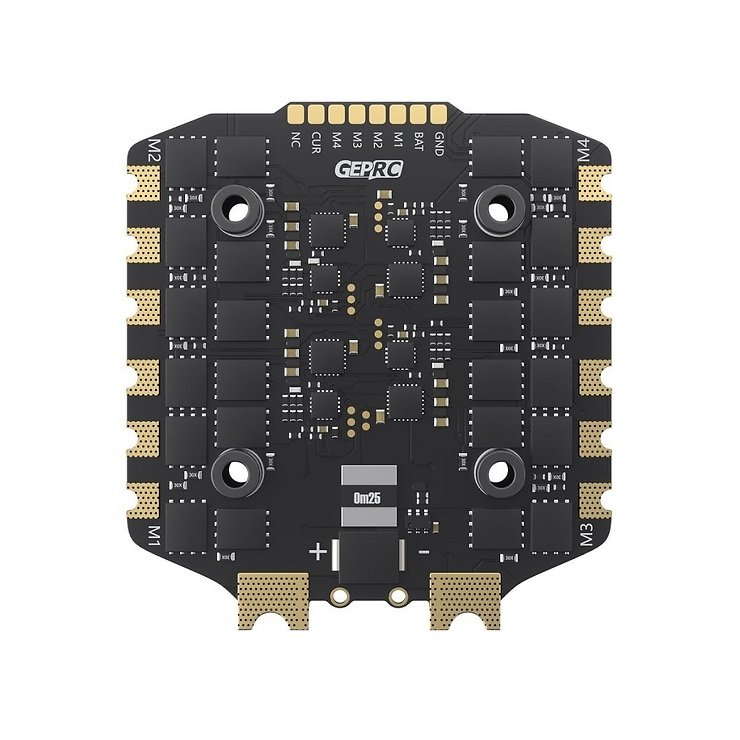

TAKER H80_BLS 80A 4IN1 ESC

• Input voltage: 3-6S Lipo
• Ammeter: Support
• Continuous current: 80 A
• Peak current: 85 A (5 seconds)
• Support protocol: Dshot 150/300/600
• Size: 56.3 * 61.1 mm, hole 30.5 × 30.5 mm, 4 mm diameter hole becomes 3 mm diameter after using the shock-absorbing silicone ring.
• Weight: 28.1 g
• Target: B_X_30
