GEPRC TAKER F722 BLS 65A V2 STACK

2 Pieces available
  • 99,90 € *
  • Ready for dispatch

GEPRC TAKER F722 BLS 65A V2 STACK

Product description

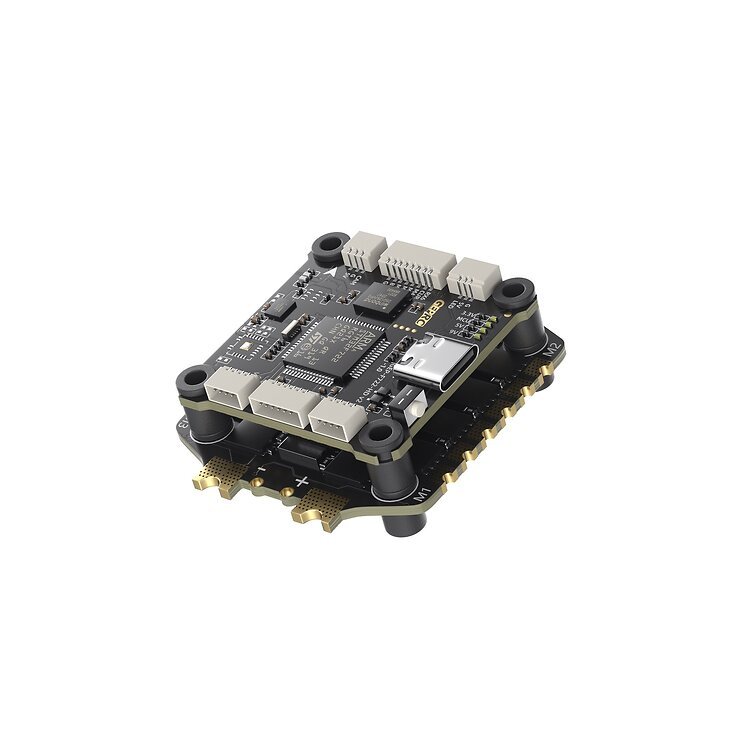

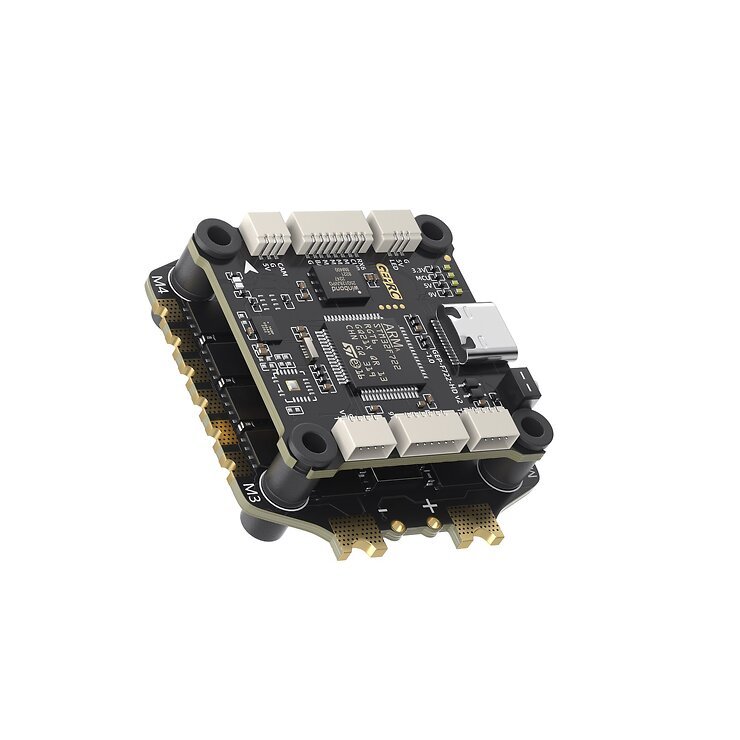

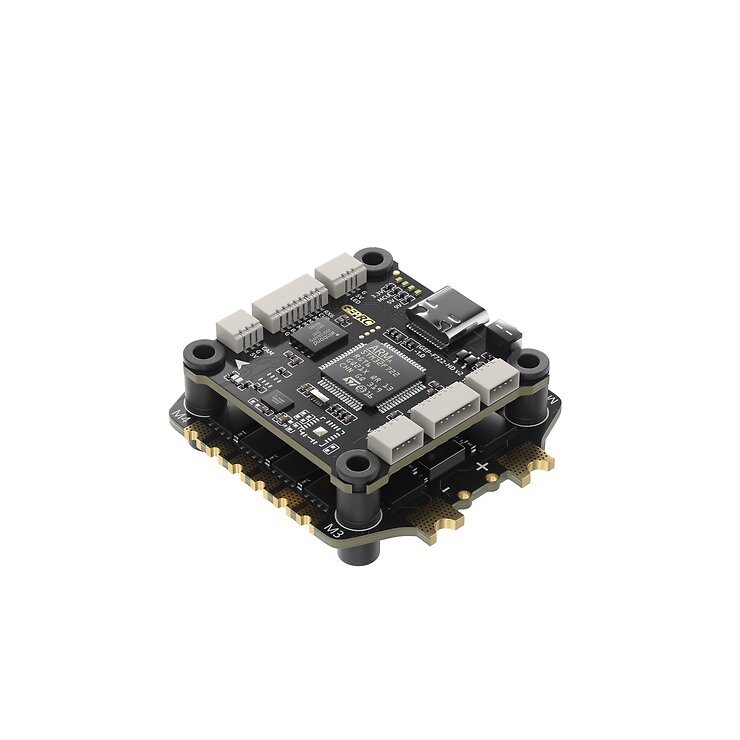

The GEP-F722-HD v2 stack with flight controller in combination with the TAKER H65_8S_BLS 65A 4IN1 ESC is the ideal choice for FPV pilots looking for performance, stability and easy installation. With the STM32F722 chip and the latest ICM42688-P gyroscope, this set offers outstanding precision and ensures a buttery smooth flying experience. Thanks to the direct connection to the DJI Air Unit and the dual BECs, it enables seamless integration and reliable power supply. The integrated LC filter technology also ensures interference-free performance. Perfect for anyone looking for a high-performance FPV setup!

Specifications GEP-F722-HD v2 Flight Controller

  • Processor: STM32F722
  • Gyroscope: ICM42688-P (SPI)
  • Memory: 16M onboard black box
  • USB interface: Type-C
  • Barometer: Supported
  • OSD: BetaFlight OSD with AT7456E chip
  • BEC: 5V @ 3A, 9V @ 2.5A (Dual BEC)
  • Dimensions: 36.85mm x 36.85mm, mounting hole size: 30.5mm x 30.5mm (hole diameter 4mm, becomes 3mm with silicone ring)
  • Input voltage: 3-6S LiPo
  • UART: 5
  • Integrated LC filter
  • Weight: 8.1g

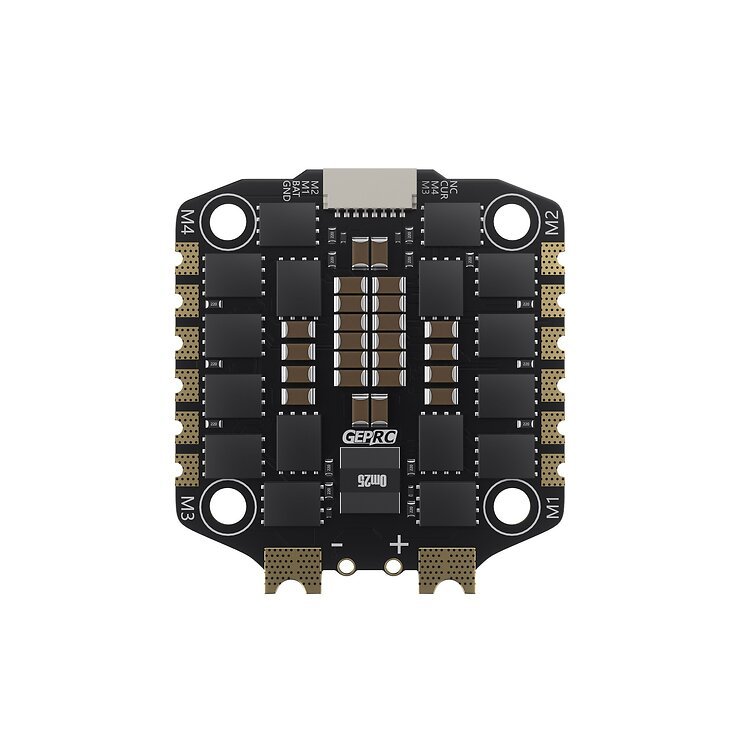

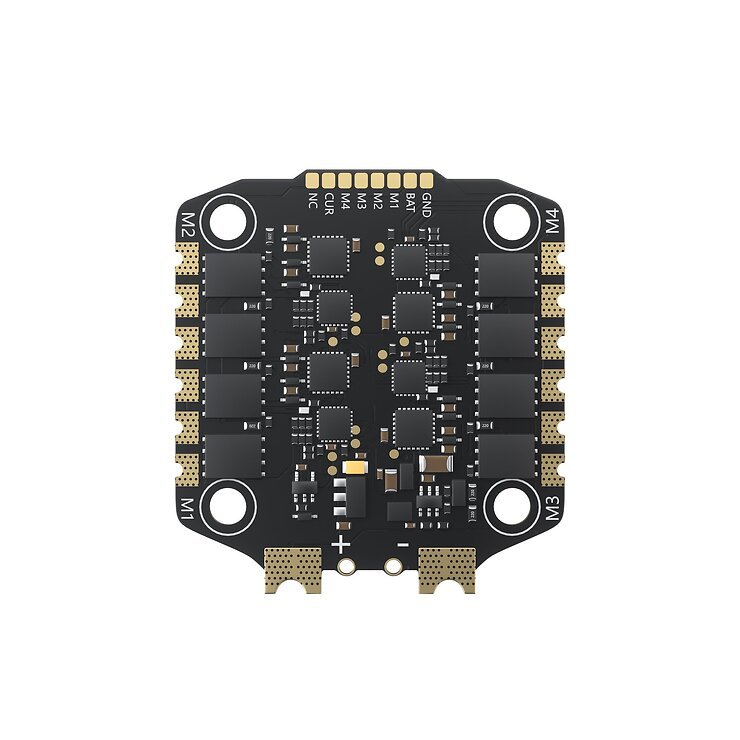

Specifications TAKER H65_8S_BLS 65A 4IN1 ESC

  • Input voltage: 3-8S LiPo
  • Continuous current: 65A
  • Peak current: 70A (for 5 seconds)
  • Supported protocols: Dshot 150/300/600
  • Dimensions: 42mm x 45.7mm, mounting hole size: 30.5mm x 30.5mm (hole diameter 4mm, becomes 3mm with silicone ring)
  • Weight: 14.9g

scope of delivery
  • 1x Flight Controller (FC) Board
  • 1x ESC Board
  • 1x Kondensator
  • 1x DJI Air Unit Adapterkabel
  • 1x Flugcontroller Adapterkabel
  • 1x XT60 Stromkabel
  • 4x M3*30 Schrauben
  • 4x M3*25 Schrauben
  • 8x Nylonmuttern
  • 8x Silikon-Dämpfungspads
  • 2x SH1.0 4-Pin Silikonkabel
  • 1x Kameraverbindungskabel
Order number GEP-GP107211
EAN 4262453767190
Manufacturer GEPRC
