GEPRC SPEEDX2 2105.5 FPV Motor 2650KV black

GEPRC SPEEDX2 2105.5 FPV Motor 2650KV black

Product description

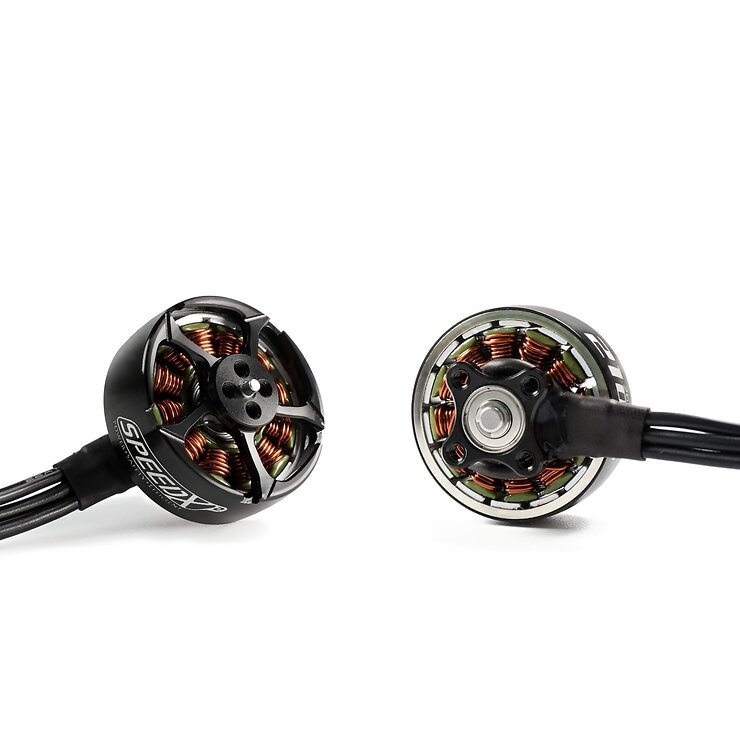

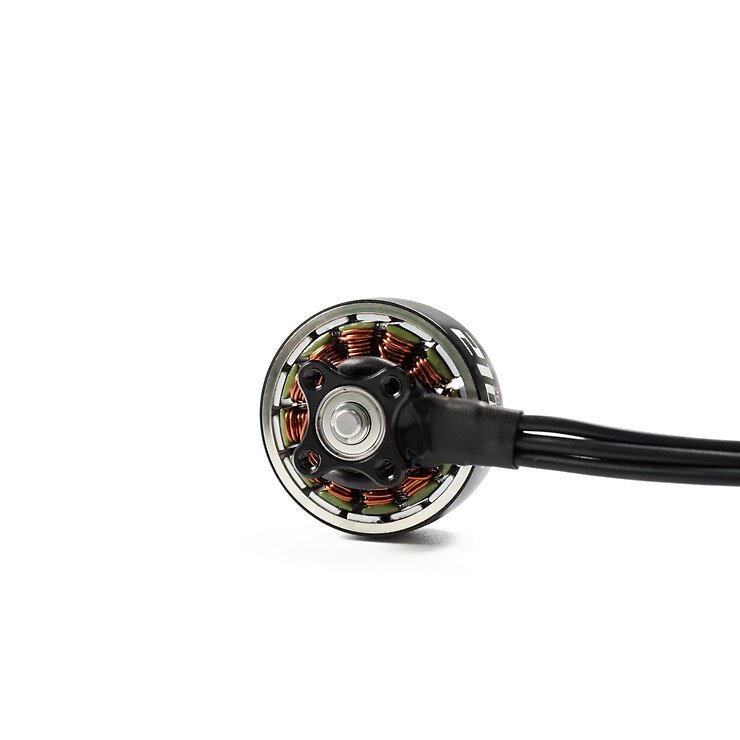

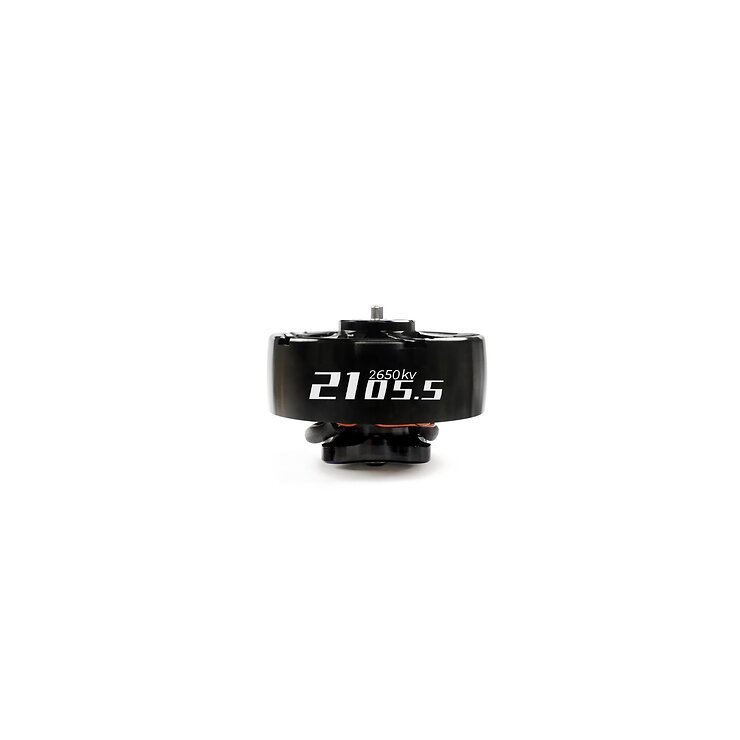

GEPRC SPEEDX2 2105.5 FPV Motor 2650KV Black

GEPRC's new generation SPEEDX2 2105.5 brushless motor is an extremely innovative brushless motor with avant-garde style and unique design.

The lightweight design significantly reduces the weight, only 21.0g. The flat motor shape with the exquisite "hollow out" design in the upper part of the rotor can be used to improve the efficiency of heat dissipation, which has the advantage of maintaining a lower temperature for the running motor.

The SPEEDX2 2105.5 motor is made of high quality materials and features a professional magnetic circuit design that ensures good handling and stable, aggressive performance. It provides the pilot with a super easy flying experience.

The SPEEDX2 2105.5 is an ideal motor for any pilot building their own 3-4 inch FPV quad or 4-5 inch long range FPV quad.

We have developed a lighter, more responsive, more efficient and more powerful brushless motor.

Features

1. Lightweight design, only 21.0g.

2. High quality arc magnetic steel, professional magnetic field design, strong magnetic force, stable motor performance.

3. The flat design motor is very prominent in freestyle & racing. Large motor torque, strong explosion power and extremely fast reaction speed.

4. Good handling and stable power output bring super smooth flying experience.

5. the Exquisite "Hollow out" design in the top of the rotor can be used in improving the efficiency of heat dissipation.

6. High strength motor structure, good durability and crash resistance.

7. the 1.5mm shaft is very suitable for most of the conventional 3-5 inch FPV quad propellers on the market.

8. suitable for 3-4 inch FPV Quads and 4-5 inch long range FPV Quads.

Specifications

• KV: 2650KV
• Configuration: 12N14P
• Magnet: N52H ARC
• Stator diameter: 21mm
• Stator height: 5.5mm
• Shaft diameter: Φ3.0mm(inner)Φ1.5(outer)
• Size: Φ25.65mm*15.7mm
• Lead wires: 22#AWG 150mm
• Number of cells(LiPo) : 3-4S
• Max. continuous power (W) (5S): 559
• Max. Current (5S) : 34.9A
• Mounting holes:12mm x 12mm(M2 screw)
• Color: Titanium, Black
• Weight:21.0g
• Suitable Quadcopter:3-4 "whoop FPV, 4-5″Toothpick & Long Range FPV

Contents

• 1 x SPEEDX2 2105.5 Motor
• 5 x M2*6mm Screw
• 5 x M2*7mm Screw
