Product description

GEPRC SPAN F722 BT HD V2 Stack FPV FC Flight Controller ESC

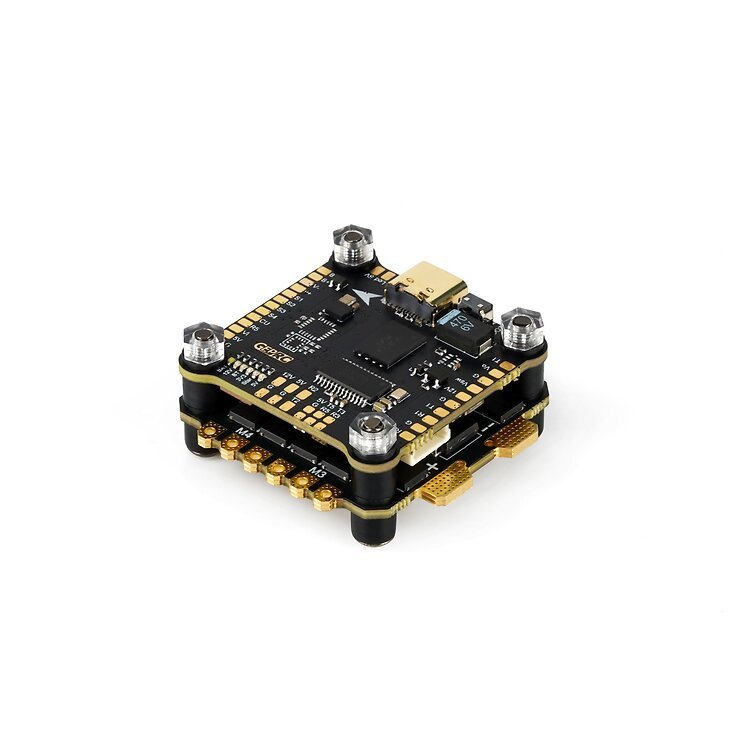

The SPAN F722-BT-HD v2 stack is equipped with a F722 chip flight controller and BLheli_32 50A 96K 4 in 1 32-bit ESC and 42688 -P gyroscope, with integrated 512MB on-board SD card and on-board Bluetooth parameter tuning. For a sensitive flight experience.

The SPAN F722-BT-HD v2 flight controller supports direct plug-in of DJI Air Unit, which can save the trouble of soldering. The upgrade of Type-C USB connector greatly improves the life of the jack and reduces the risk of bad contact.

The F722-BT-HD v2 flight controller can be well combined with the BLheli_32 50A 96K 4-in-1 32-bit ESC.

It can be used together to achieve a perfect flying effect.

The flight controller supports various receivers, including Sbus, PPM, CRSF, DSMX, iBus, DUMD and other protocols, so you don't have to worry about not being able to use the remote controller in your hand.

Tips: The stack is mainly used on MARK5, drone frames with 30.5*30.5 FC mounting holes can also be mounted with this stack.

features

• Using STM32F722RET6 main controller
• Equipped with the latest 42688-P gyroscope
• Supports Bluetooth parameter tuning
• Integrated 512MB SD card
• Integrated LC filtering
• Improved Type-C USB port
• Directly plugs into the DJI Air Unit
• Combines with BLHeli_32 50A 96K 4IN1 ESC for a silky smooth flight experience
• Simple and reasonable installation method, shock absorbing ring can make the gyroscope work stably
• Support the major receivers: Sbus, PPM, CRSF, DSMX, iBus

Specifications SPAN F722-BT-HD v2 flight controller

• MCU: STM32F722RET6
• IMU: 42688-P(SPI)
• Black box: 512MB onboard SD card
• USB port: Type-C
• OSD: BetaFlight OSD with AT7456E chip
• BEC output: 5V 3A / 12V 3A
• Integrated LC filtering
• Firmware: GEPRCF722-BT-HD
• Size: 36x36mm, φ4mm hole becomes φ3mm after using silicon feedthroughs
• Input voltage: LiPo 3-6S
• UARTS: 5

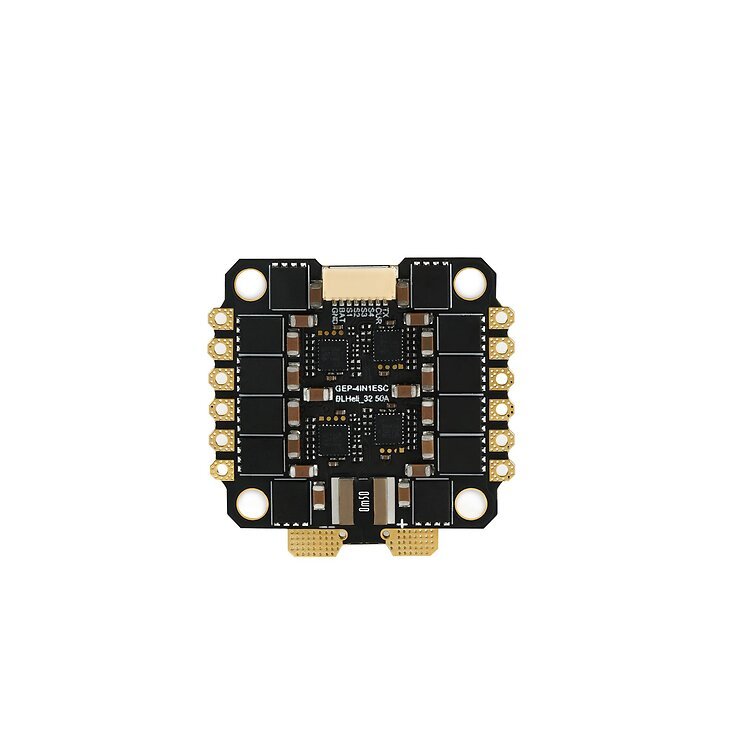

Specifications BL32 50A 96K 4IN1 ESC

• MCU: SMT32G071 (32bit 96K Hz)
• Continuous current: 50A
• Peak current: 55A (5 seconds)
• Galvanometer: Support
• Telemetry: Support
• Supported protocols: DSHOT600, PWM, Multishot, OneShot
• Firmware: GEPRC_G071_4IN1_96K
• Input voltage: 3-6S Lipo

Contents:

• 1 x flight controller

• 1 x ESC
• 1 x Capacitor
• 1 x DJI Air unit adapter cable
• 1 x flight controller adapter cable
• 1 x XT60 power cable
• 4 x M3*30 screws
• 4 x M3*24 screws
• 8 x nylon nuts
• 4 x silicone gaskets
