GEPRC RAD Whoop FPV 5.8G VTX

GEPRC RAD Whoop FPV 5.8G VTX

Product description

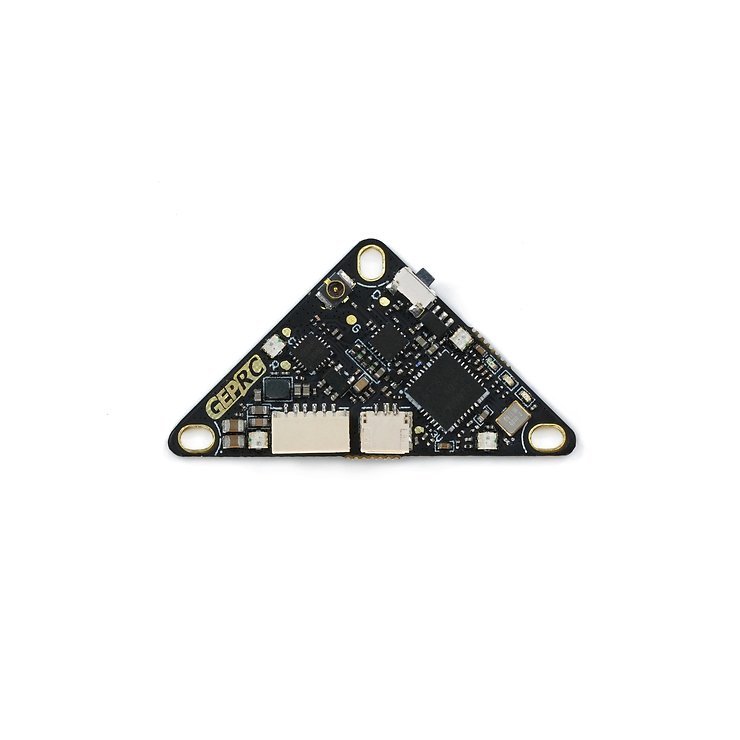

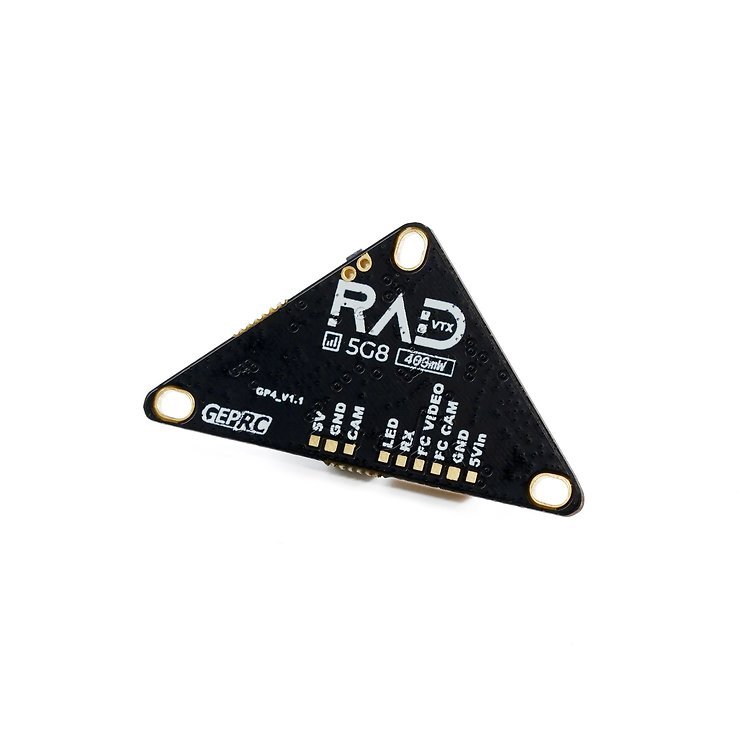

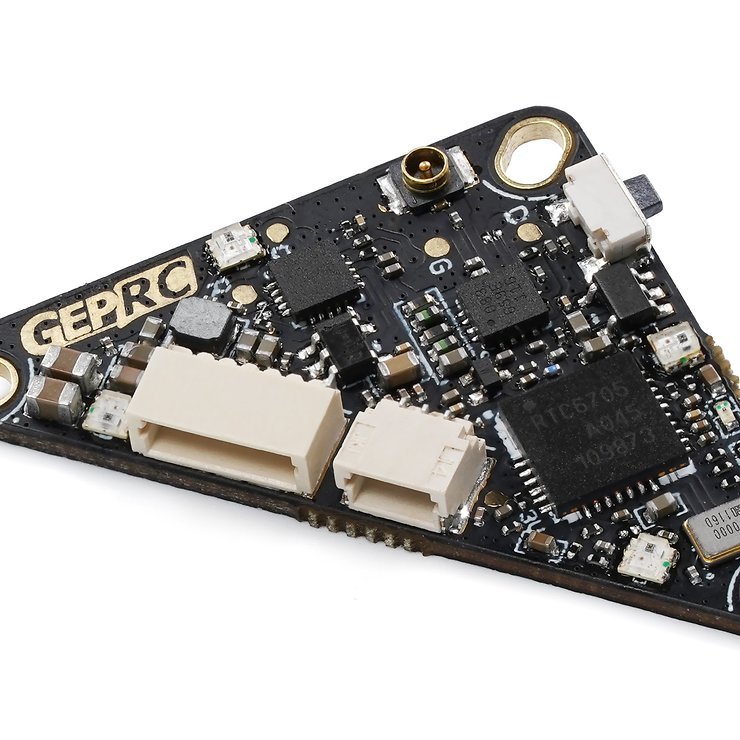

GEPRC RAD Whoop FPV 5.8G VTX

It has 4 adjustable power levels, the maximum power up to 400mW. The transmission signal is stable, good heat dissipation, IRC tramp protocol, OSD fast parameter tuning with temperature control protection function to prevent overheating and burning.

Specification

• Model: RAD Whoop 5.8G VTX
• Brand: GEPRC
• Input voltage: DC 5V
• Output voltage: 5V@500mA (power supply 5V for camera)
• Input impedance: 75Ω
• Protocol: IRC Tramp
• Antenna connector: UFL
• Cable connection: SH1.0
• Output power: PitMode/25mW/200mW/400mW
• Frequency: 40CH
• Video format: PAL/NTSC
• Microphone: none
• Mounting hole: 25.5mm-26.5mm dual compatible (M2)
• Weight: 2g (without cable)

Product Features

1. 400mW power, low heat generation, stable operation, suitable for short and medium distance flights

2. 3 power channels adjustable PitMode/25mW/200mW/400mW

3. With temperature control protection function to prevent burnout at high temperature

4. DC5V input, power consumption is only 400ma, can be operated directly from flight controller 5V

5. VTX control protocol IRC tramp, support OSD parameter tuning

6. One setting button, three indicator lights, easy to operate

7. The mounting holes are compatible with 25.5mm-26.5mm

Contents

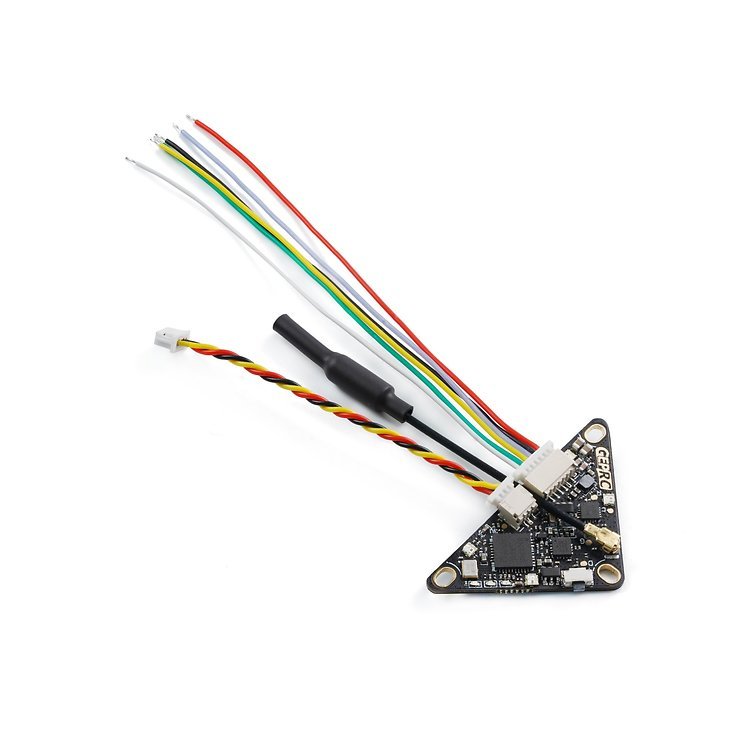

• 1 x RAD Whoop 5.8G VTX
• 1 x UFL 72mm copper tube antenna
• 1 x SH1.0 6P 100mm cable
• 1 x SH1.0 to SH1.25 3P cable
