GEPRC RAD Mini FPV 5.8G 1W VTX

GEPRC RAD Mini FPV 5.8G 1W VTX

Product description

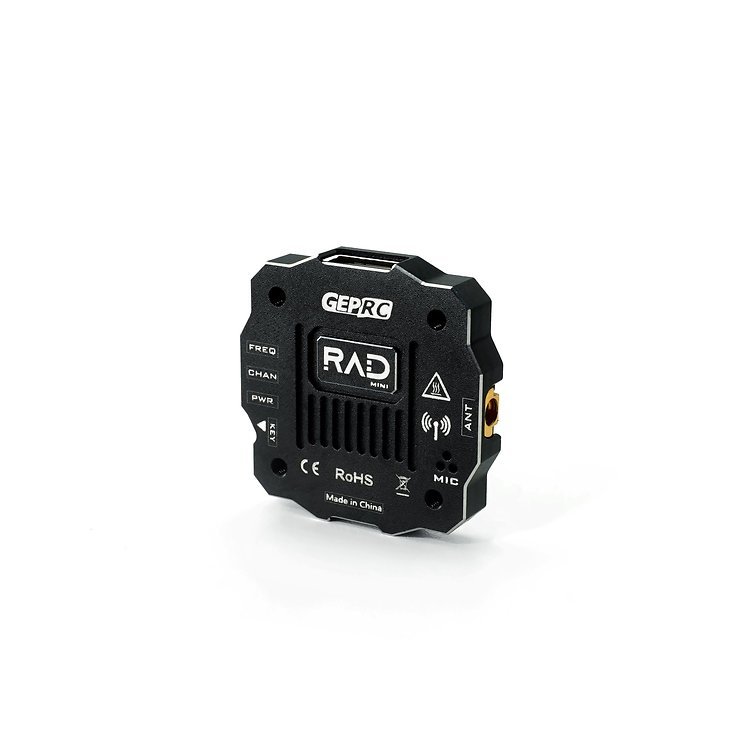

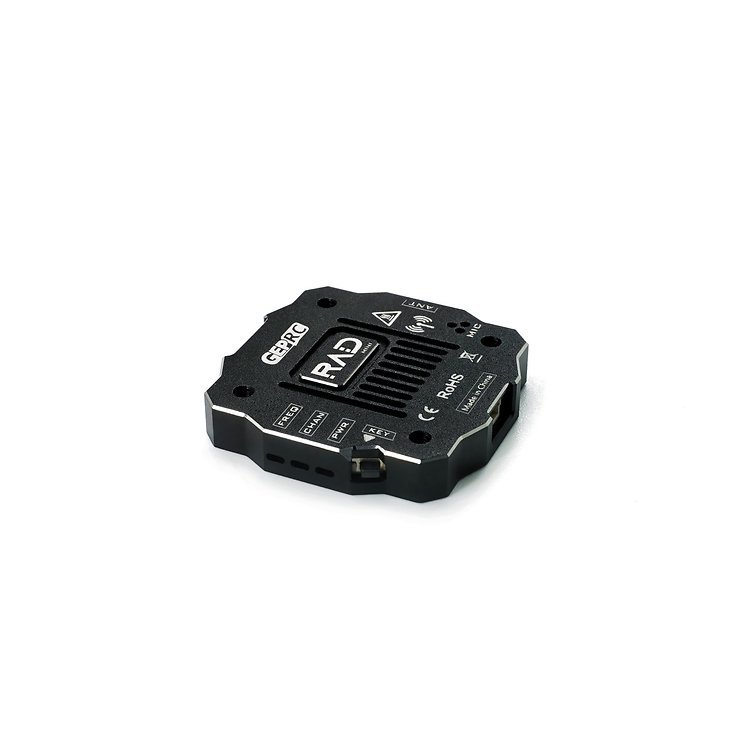

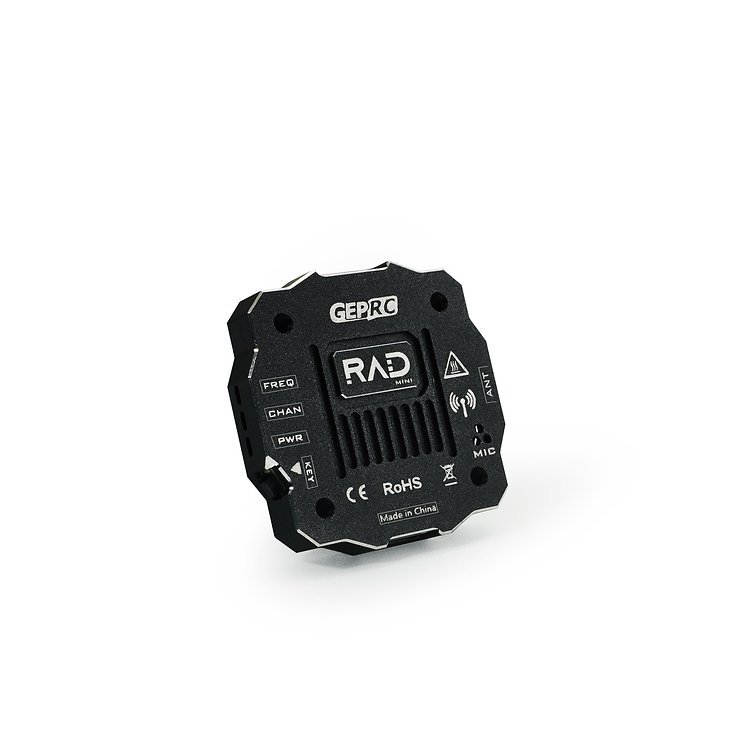

GEPRC RAD Mini FPV 5.8G 1W VTX

RAD MINI VTX is the latest 1W high power VTX developed by GEPRC. It has 4 adjustable power levels and a maximum power of 1000mW, with a stable transmission signal, suitable for short and medium range flights to ensure the quality of image transmission.

The housing of RAD MINI is made of high strength 6061 aluminum alloy to support heat dissipation, which has higher shock resistance and better heat dissipation.

IRC tramp protocol, OSD setting adjustment, built-in microphone can provide real-time sound transmission.

7-28V wide voltage input, with temperature control protection function to prevent overheating and burnout.

With 20x20mm PCB mounting hole. The diameter of single hole is 3.05mm. Aluminum alloy case can be removed and installed as a stack.

Cover the housing with a 20x20 mounting hole and a single M2 threaded hole. It is recommended that the enclosure be installed on the back of the frame where 20X20 holes are located. When installing, be sure to insulate, PCB side down, and pad the installation with four nylon spacers.

Specification

• Model：GEPRC RAD MINI 5.8G 1W VTX

• Input voltage：DC7-28V（2-6S battery）
• Output voltage: 5V@600mA (power supply 5V to camera)
• Input impedance: 75Ω
• Protocol: IRC Tramp
• Antenna connector: MMCX
• Cable connector：SH1.0 5pin+SH1.0 3pin
• Output power：25mW/200mW/500mW/1000mW/PIT MODE
• Frequency band: universal frequency band (40CH), American FCC frequency band (37CH), European EU frequency band (26CH)
• Video format: PAL/NTSC
• Microphone: Built-in microphone
• Mounting hole: 20x20mm
• Size: 30.83×30.83mm
• Net weight: 4.7g
• With metal case: 8.4g

Product Features

• Light weight, high power, with a maximum power of 1000mW. Suitable for short and medium flight distances to ensure the quality of image transmission.
• 4 power levels: PitMode/25mW/200mW/500mW/1000mW.
• High strength 6061 aluminum alloy housing to support heat dissipation, which has higher impact resistance and better heat dissipation.
• With temperature control protection function to prevent high temperature burnout.
• Wide voltage input, support 7V-28V voltage input.
• 3 adjustable regional frequency bands to meet the requirements of different regions.
• IRC tramp protocol, OSD settings adjustable.
• Built-in microphone can provide real-time sound transmission.
• One setting button, three indicator lights, easy to operate.

Contents

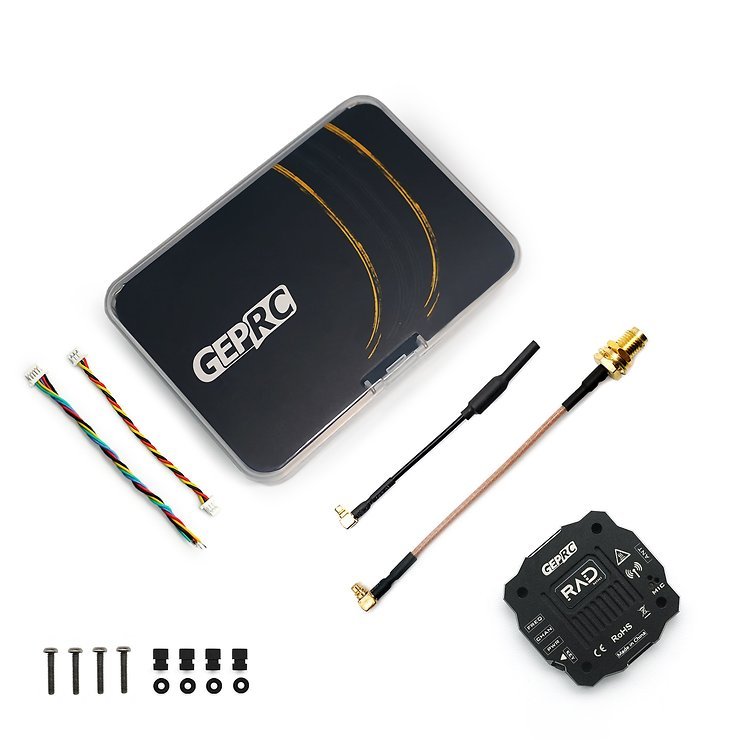

• 1 x GEPRC RAD MINI 5.8G 1W VTX

• 1 x MMCX 80mm copper tube antenna
• 1 x MMCX to SMA（Internal Foramen） connector
• 1 x SH.0 5pin VTX cable (100MM)
• 1 x SH1.0 to SH1.25 camera cable (65MM)
• 1 x Set of screws
