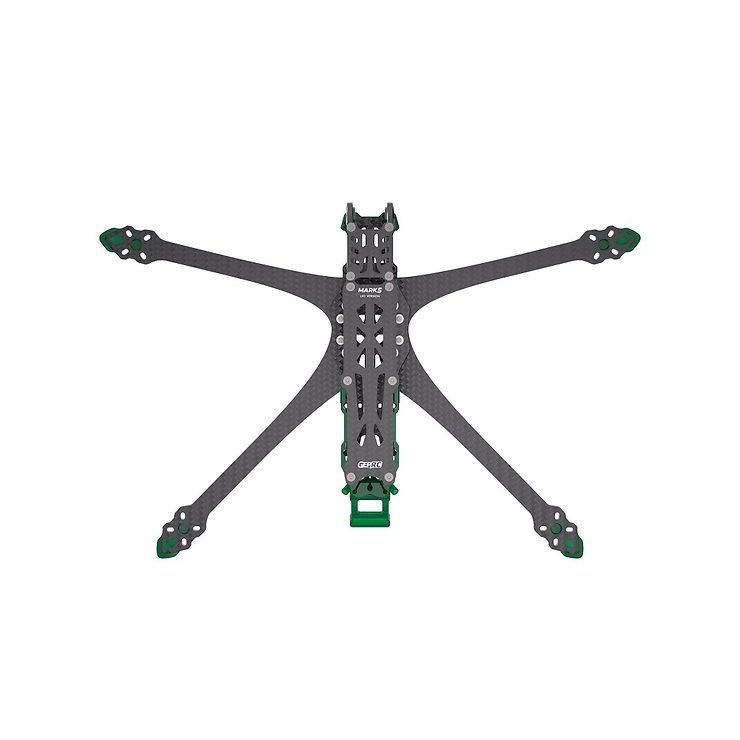

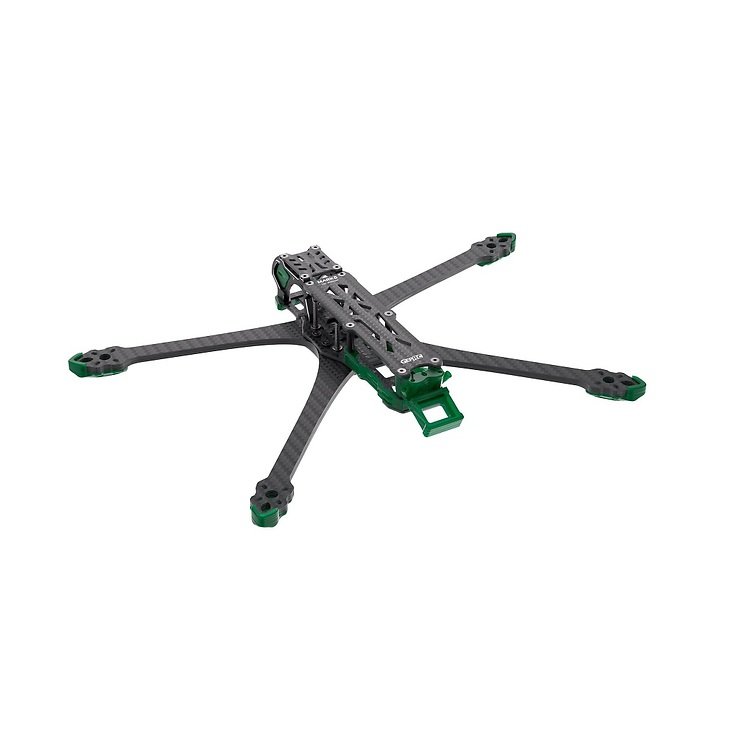

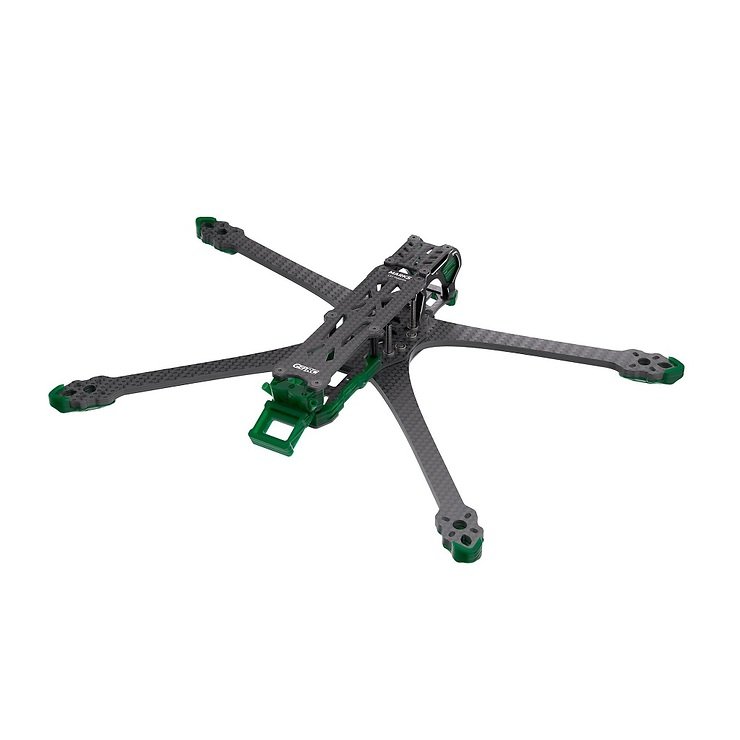

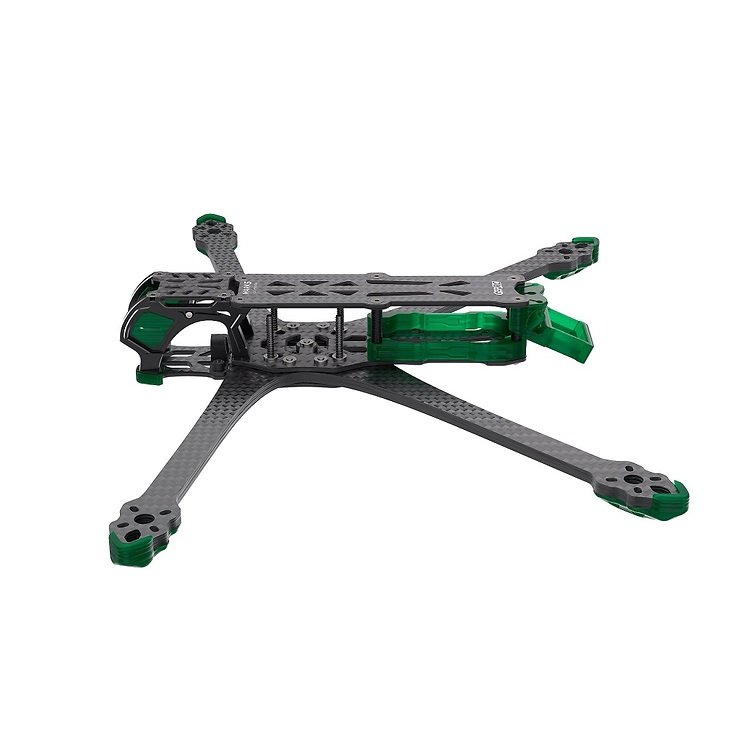

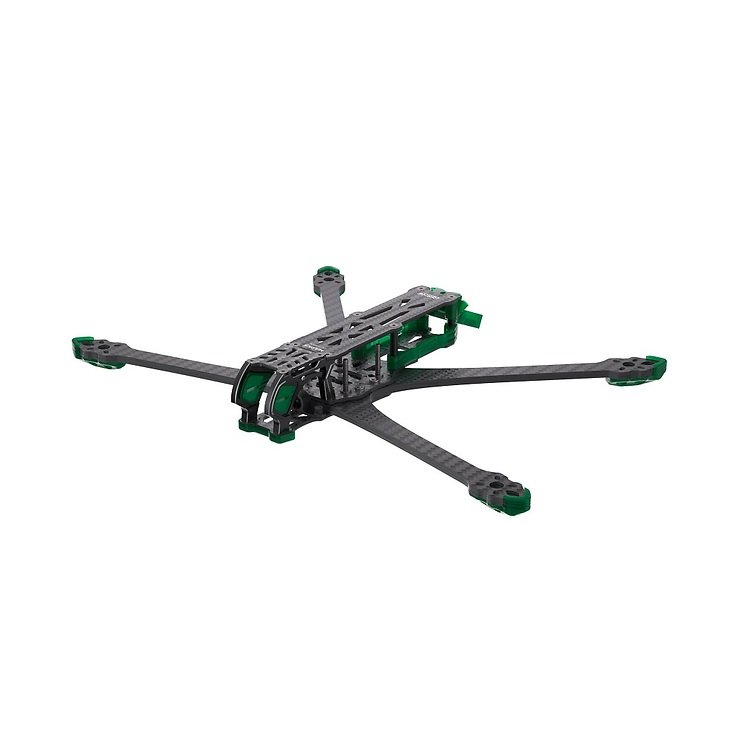

GEPRC MK5D-LR7 FPV Frame 7 inch Green

GEPRC MK5D-LR7 FPV Frame 7 inch Green

Product description

GEPRC MK5D-LR7 FPV Frame 7 inch Green

The MK5D-LR7 is a 7-inch model that has been further developed on the basis of the MARK5. It optimizes the strength of the arm structure without losing the original design, while increasing the strength and improving the error tolerance rate when flying.

With its DC structure, the MK5D-LR7 offers a wide and unobstructed viewing angle, ideal for O3 onboard shooting. Specially designed TPU mounting parts for O3 video transmission as well as air intake and heat exhaust vents promote efficient heat dissipation from the air terminal. The MK5D-LR7 comes with two different camera mounting bases that are compatible with a wide range of GoPro action cameras as well as Naked GoPro 8 10, Insta 360 GO2 and Caddx Peanut to capture beautiful moments of your flight.

Specifications:

• Frame: GEP-MK5D-LR7
• Dimensions: 230mm×350mm×43mm
• Wheelbase: 335mm
• Top plate: 2.5mm
• Lower plate: 2.5mm
• Arm plate: 6.0mm
• FC mounting hole: 30.5mm x 30.5mm/25.5mm x 25.5mm
• VTX-Montageloch: 30,5mm×30,5mm/25,5mm×25,5mm/20,5mm×20,5mm
• Camera mounting hole: 19mm-20mm
• Propeller: 7 inch
• Weight: 230.0g

Features:

• Durable aluminum alloy for lens side plate, visually appealing.
• Improved arm strength without losing the original design.
• DC structure fuselage, ideal for long distance flights.
• Unique frame damping design for less vibration and a safe, stable operating environment for electronic systems.
• Independent condenser and buzzer cabin for an extremely stable operating environment.
• Two types of 3D pressure bases for installing a wide range of GoPro cameras as well as Naked Camera 8, Insta 360 GO2 and Caddx Peanut cameras.
• Supports the installation of motors with 16x16mm and 19x19mm mounting holes.
