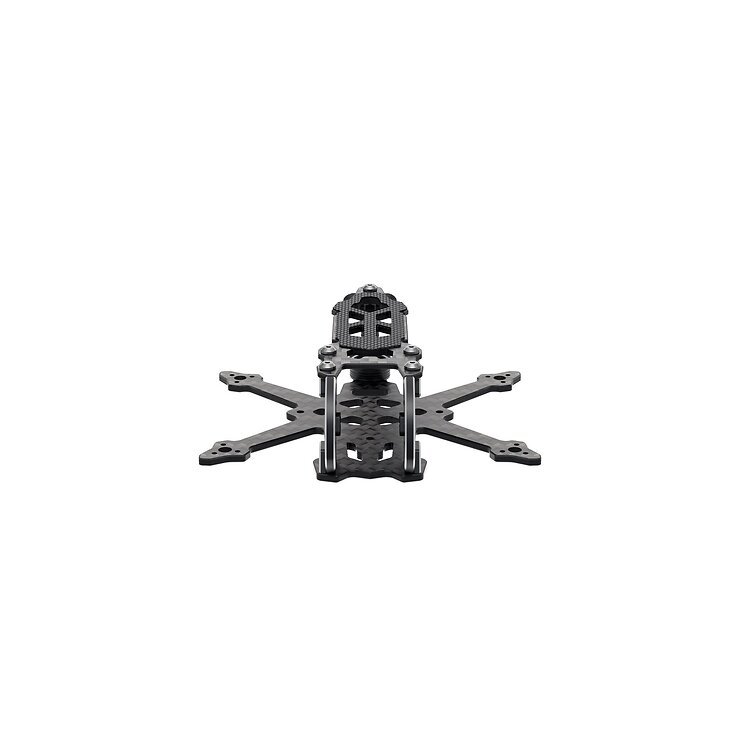

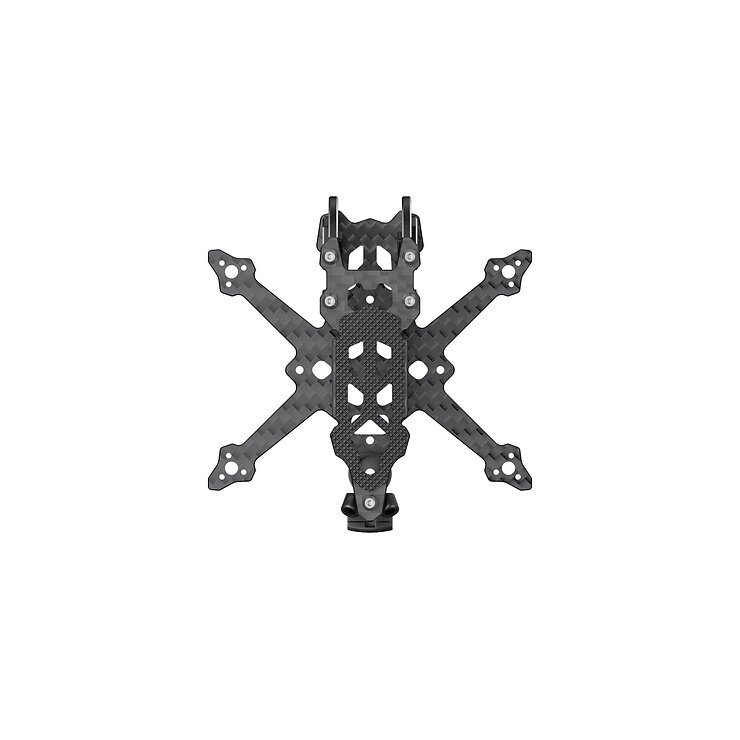

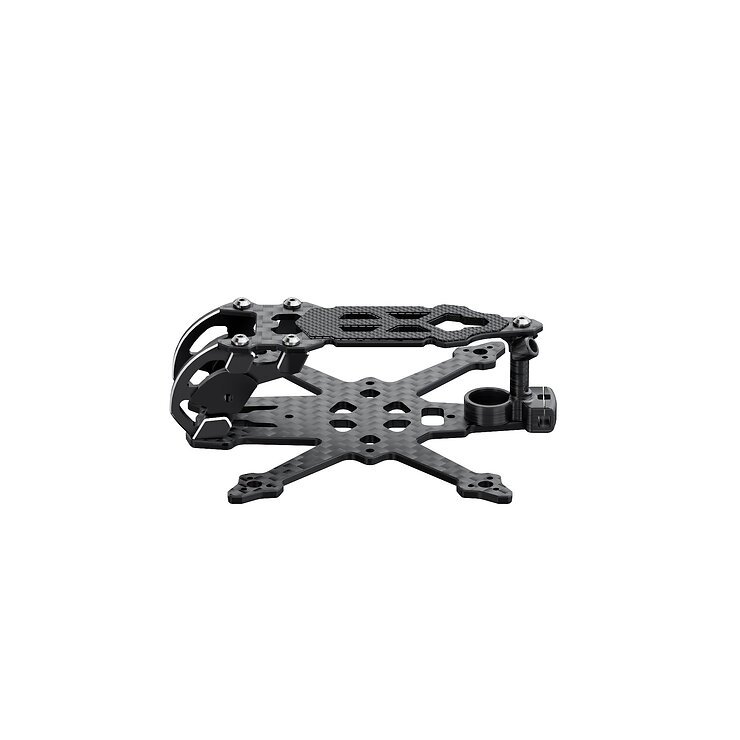

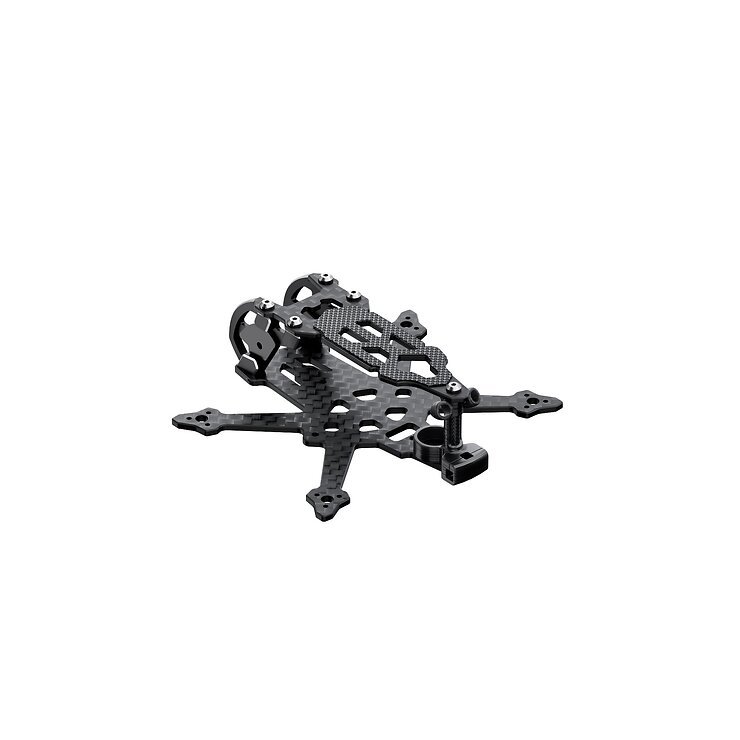

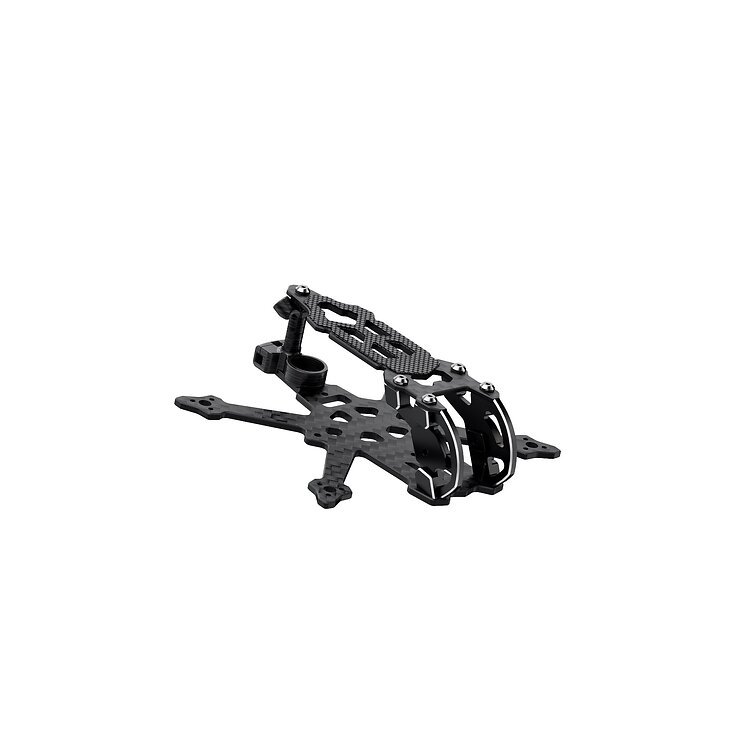

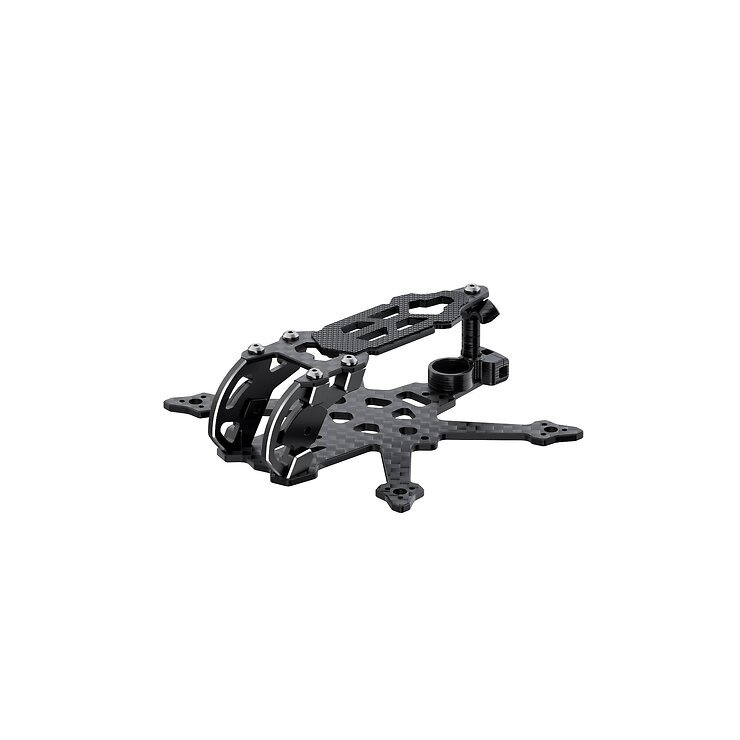

GEPRC GEP-TC18 O4 Frame black

GEPRC GEP-TC18 O4 Frame black

Product description

The GEP-TC 18 O4 frame is the ideal choice for drone enthusiasts looking for a stable, durable and high-performance frame. With a well thought-out design and high-quality materials, this frame not only guarantees you excellent flight stability, but also optimal integration with the DJI O4 Air Unit. Whether for use in aerial reconnaissance or for impressive FPV flights, the GEP-TC 18 O4 frame will exceed your expectations!

Key features:

• Dampening silicone: Ensures smooth, wobble-free footage, especially with the DJI O4 system.
• 7075 Aluminum Camera Mount: Guarantees exceptional durability and robustness, ideal for demanding applications.
• Integrated design with space for buzzer and antennas: Optimized placement for a clean and well-organized installation.
• 2mm thick arms: Increase stability and durability, reducing the risk of damage from bumps or hard landings.

Specifications:

• Wheelbase: 87 mm
• Dimensions: 100 mm x 90 mm
• Frame type: Wide X
• Top plate thickness: 1.5 mm
• Lower plate thickness: 2 mm
• FC mounting holes: 25.5 x 25.5 mm (M2)
• VTX mounting holes: 25.5 x 25.5 mm (M2)
• Motor mounting holes: 6.6 x 6.6 mm (M1.4)
• Camera side panel gap: 14 x 14 mm
• Stack mount height: 12 mm
• Weight: 15 g

Recommended accessories:

• Motors: 0802-1002
• Flight Controller (FC): TAKER F411-12A-E 1~2S AIO FC
• VTX: DJI O4 Air Unit Digital VTX
• Propeller: HQprop 45mm
