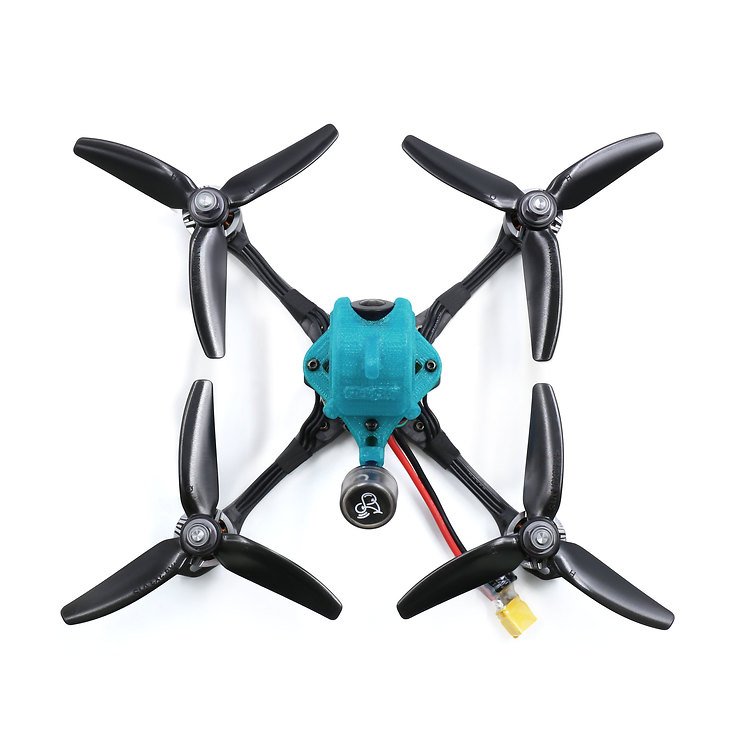

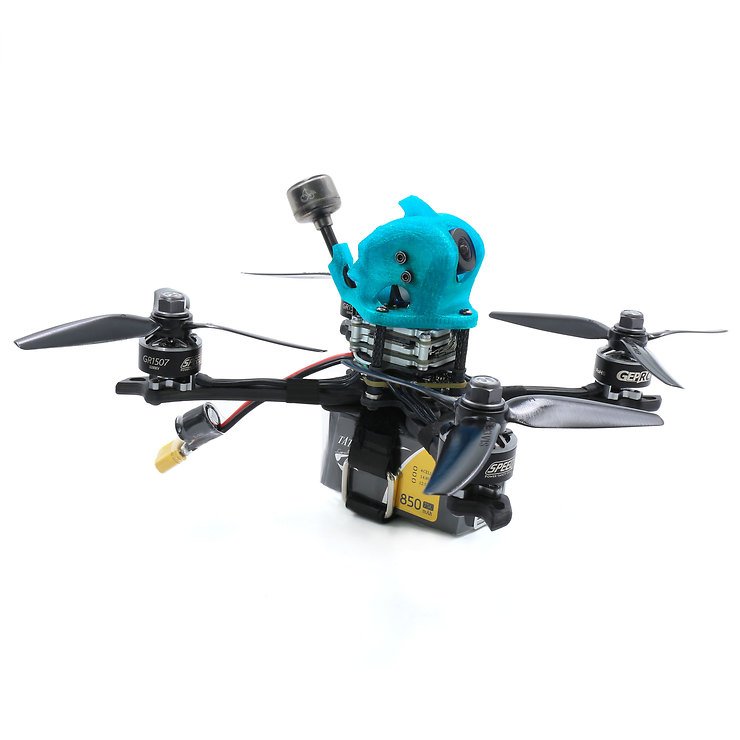

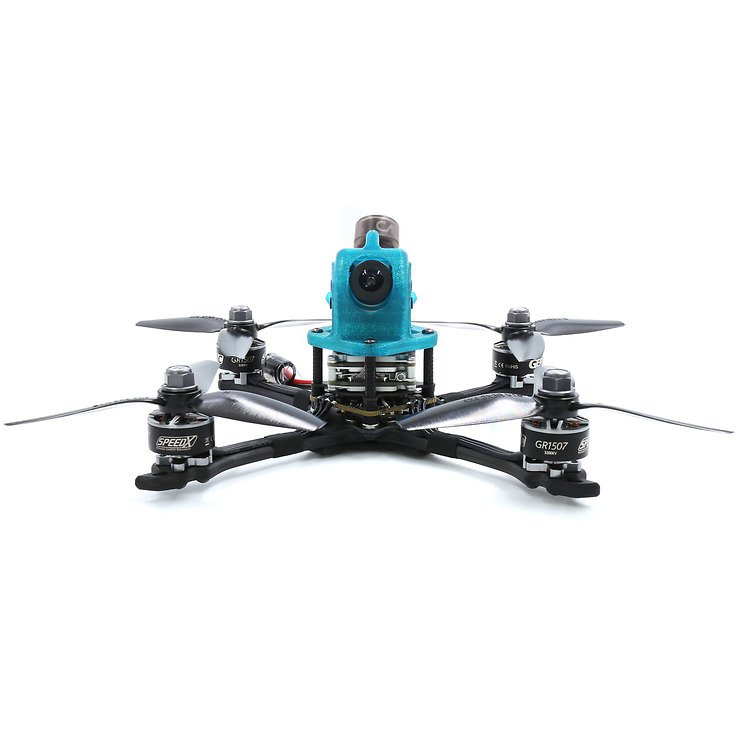

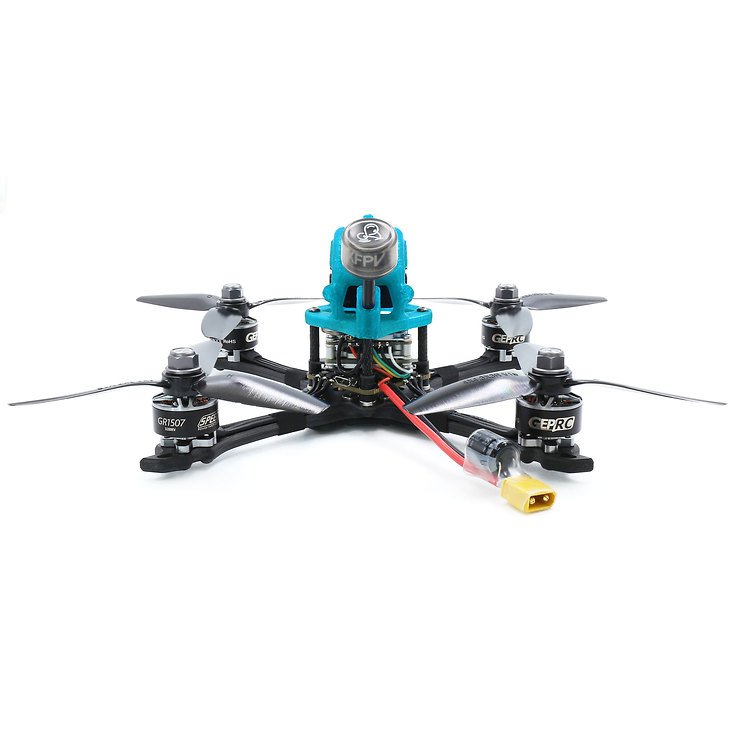

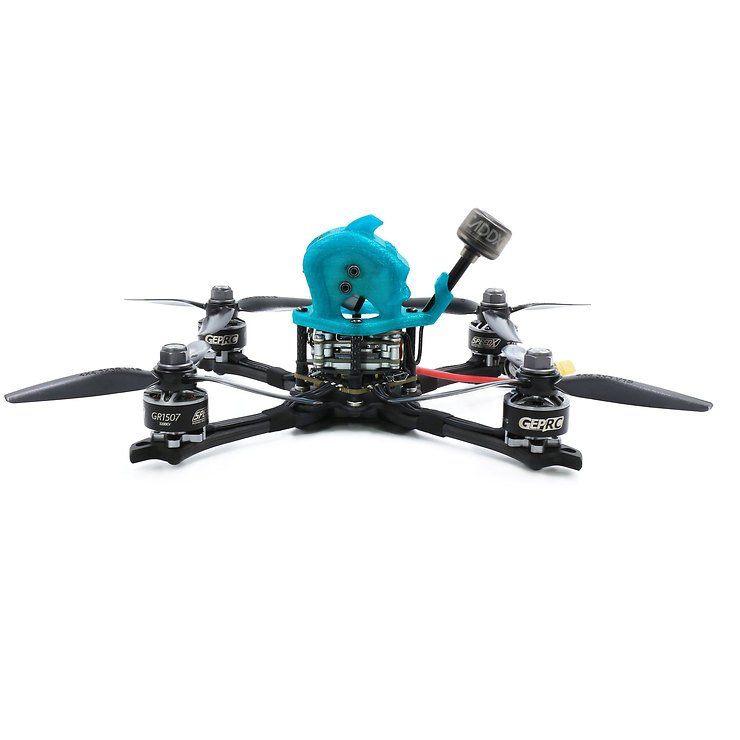

GEPRC Dolphin HD DJI FPV 4 inch Toothpick Crossfire

GEPRC Dolphin HD DJI FPV 4 inch Toothpick Crossfire

Product description

GEPRC Dolphin HD DJI FPV 4 inch Toothpick Crossfire

Dolphin HD is an updated version of the Dolphin 4 inch Toothpick, equipped with the latest Caddx Vista DJI FPV Digital system for even better picture transmission and even more fun.

As usual, the quadcopter comes to you already preset and PID tuned by the GEPRC team!

Technical data

• FC: GEP-20A-F4 AIO
• Camera: Caddx Vista HD Digital System
• Motor to motor: 153mm
• Propeller: 4 inch
• Engine: GEPRC 1507 3200KV

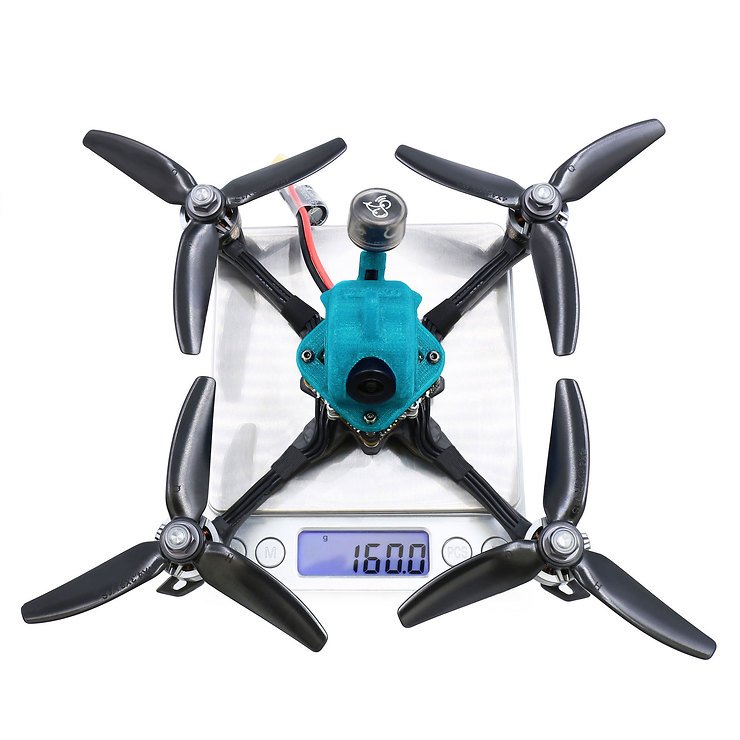

• Weight: 160g without LiPo
• Receiver: TBS Crossfire
• Arm thickness: 4mm

Technical data FC

• MCU: STM32F411
• Gyro: MPU6000
• OSD: BetaFlight OSD with AT7456E chip
• Firmware target: GEPRCF411
• ESC: 20A x 4 BLHeli_S (Dshot/Multishot/OneShot)
• Recommended LiPo: 3-4S (650 - 850mAh)

Content

• Dolphin HD FPV Drone (TBS Crossfire)
• 4x HQ 4×4.3×3 V1S
• LiPo Pad
• 2x LiPo Strap 15x120mm
• M8 wrench
• 1.5mm L Screwdriver
• 2x antenna tubes
