GEPRC Cinebot25 HD 4S DJI O3 FPV Quadcopter TBS Crossfire

GEPRC Cinebot25 HD 4S DJI O3 FPV Quadcopter TBS Crossfire

Product description

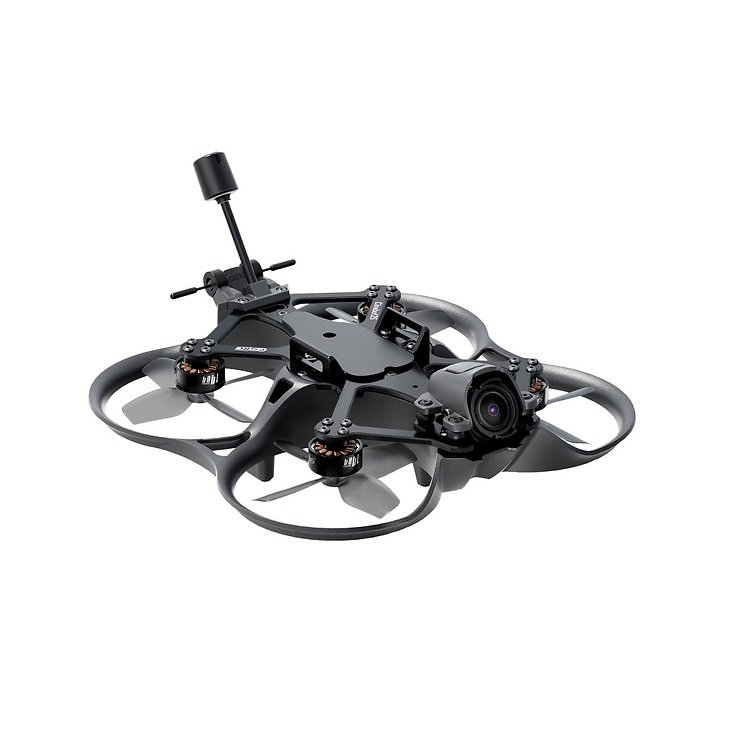

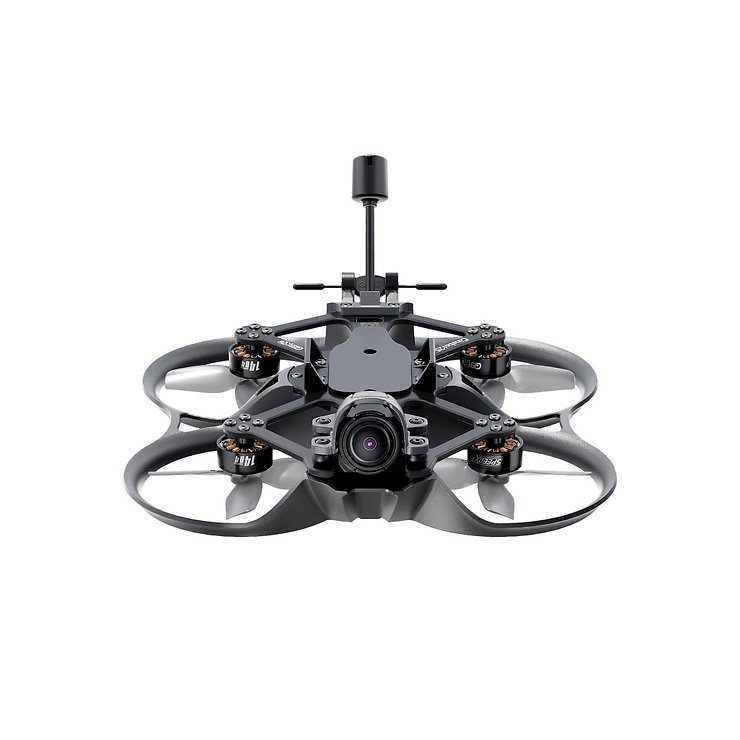

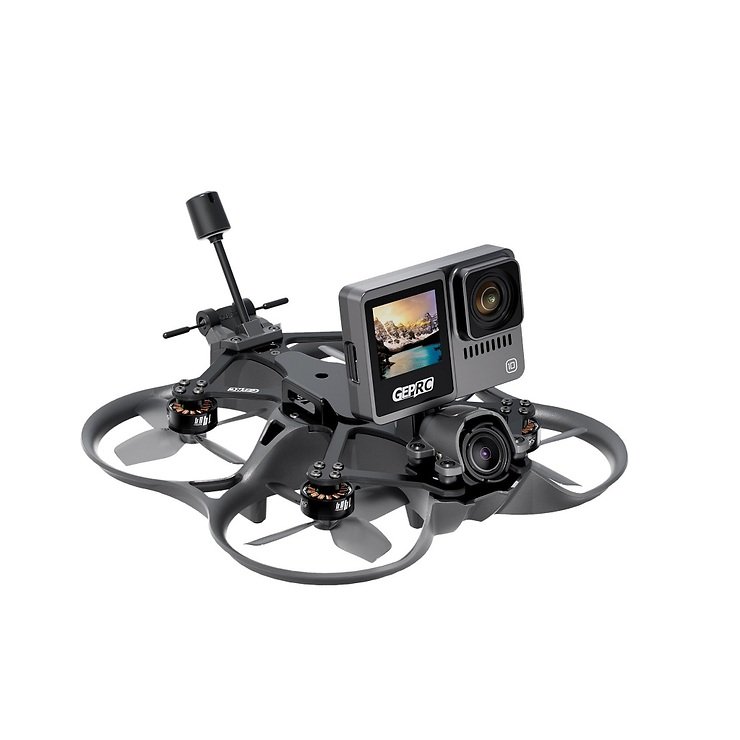

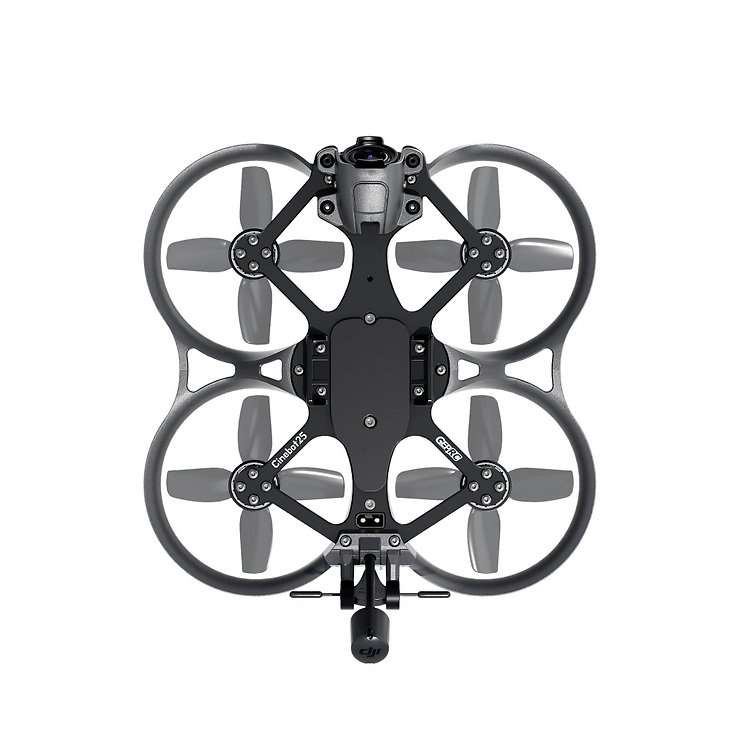

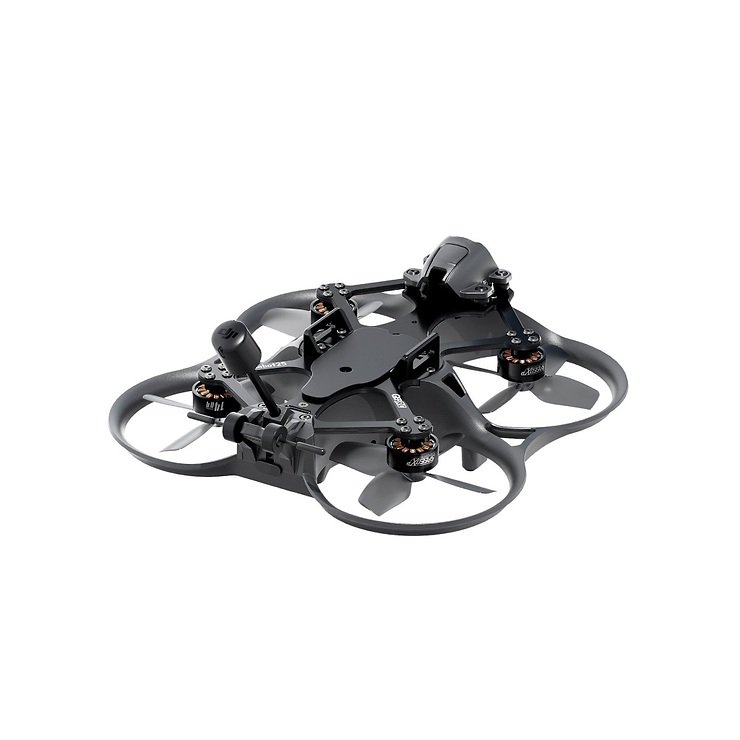

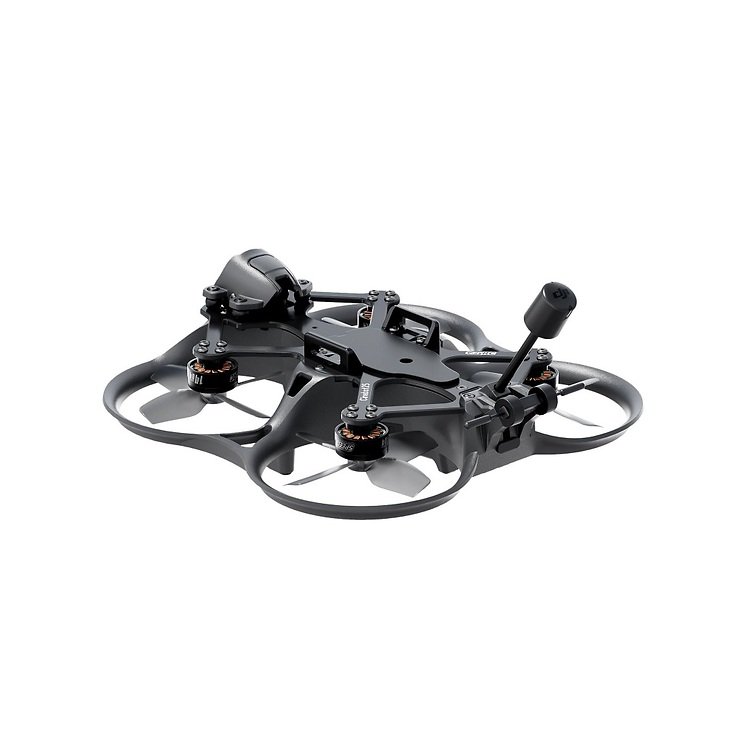

GEPRC Cinebot25 HD 4S DJI O3 FPV Quadcopter TBS Crossfire

The Cinebot25 is a quadcopter model characterized by unparalleled controllability and the ability to take stable aerial shots. It is characterized by a revolutionary exterior design and incredible performance and is offered in two different power versions: the regular version with the SPEEDX2 1404 motor and the sport version (S version) with the SPEEDX2 1505 motor.

The O3 anti-shake design uses four silicone damping balls to reduce vibrations and filter jello effects, resulting in high quality video. The integrated structure uses revolutionary modified materials to provide both rigidity and flexibility, minimizing susceptibility to damage. The hull space is highly compatible with various video systems such as the O3 Air Unit and has a convenient output for quick and effective use of the SD card slot and USB.

After extensive testing, the Cinebot25 has been equipped with a TAKER G4 45A AIO FC that will revitalize the movie experience.

Key features:

• Integrated external design with reinforced carbon plate and modified material for the one-piece injection molded bottom.
• Shock absorbing protective camera cover for better stability when shooting.
• Two performance versions: regular with SPEEDX2 1404 motor and sport with SPEEDX2 1505 motor.
• TYPE-C and BOOT button at the back for convenient parameter adjustment.
• Optimized silicone T-antenna mounting element.
• Cinebot25 Lite quadcopter with a LiHV 4S 720mAh battery that weighs less than 250g.
• Equipped with the new TAKER G4 45A AIO, the G4 FC provides stable flight calculation capabilities and an integrated 45A BL32 ESC supports an update rate of up to 128K PWM.
• Compatibility between O3 VTX and housing makes it easy to install memory cards and load recordings.
• Customized mounting stand for the receiver simplifies the interior.
• Diversified battery selection through comprehensive mounting method of aluminum components and straps.

Specifications:

• Model: Cinebot25 O3 Quadcopter
• Frame: GEP-CT25 Gray
• Wheelbase: 115mm
• FC: TAKER G4 45A AIO
• MCU: STM32G473CEU6
• Gyro: ICM 42688-P
• FC firmware: TAKERG4AIO
• ESC: BLHeli 32Bit 45A
• Motor: SPEEDX2 1404 4600KV
• Propeller: HQprop DT63mm x4
• Connector: XT30
• VTX: O3 AIR Unit
• Camera: O3 camera
• Antenna: O3 original antenna
• Receiver: TBS NanoRX
• Weight: Cinebot25 O3 PNP version 182g±1g
• Recommended battery: LiHV 4S 660mAh-720mAh
• Flight time: 5′-8′ (The reference time is based on slow flights. Actual time depends on individual flight method)
