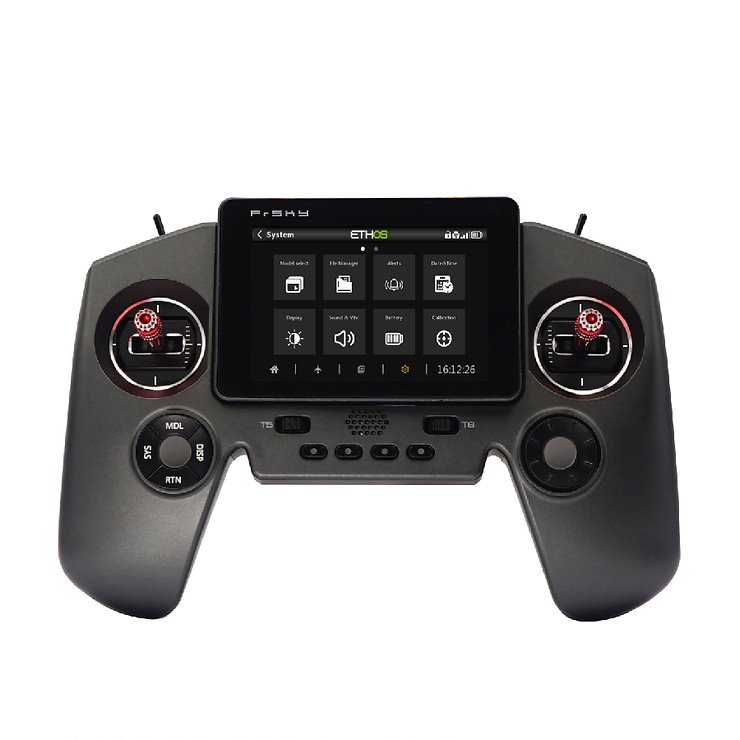

FrSky Twin X Lite FPV Radio Remote Control 2.4Ghz Charcoal Grey

FrSky Twin X Lite FPV Radio Remote Control 2.4Ghz Charcoal Grey

Product description

FrSky Twin X Lite FPV Radio Remote Control 2.4Ghz Charcoal Grey

DUAL 2.4G RADIO SYSTEM
The TWIN X Lite is a high-performance radio system that offers two 2.4-G frequencies simultaneously on the same receiver in TW mode. The TW active-active protocol is different from general active-standby redundancy solutions. With this protocol, two 2.4-G frequency bands are active simultaneously on the TWIN series RF module and receiver, and it has two internal 2.4-G RF antennas mounted to provide multidirectional and wider coverage for transmitting signals compared to a single antenna design.by taking advantage of these features, the Twin system can confidently provide lower latency and higher reliability at a faster data rate.

In addition to TW mode, TWIN X Lite also supports ACCST D16, ACCESS and ELRS 2.4G (compatible) modes. This means users can benefit from a wide range of compatible receiver options to choose from and commit to when building the RC model.

Features

• Ergonomic and compact lightweight design
• Slide-screen design
• 3.5-inch color touchscreen displays
• 6 trims and 4 custom quick mode buttons
• 2 Momentary Buttons & 2 Sliders & 4 Switches on top panel
• Lite type external module bay
• Fordable strap for attaching radio harness
• CNC metal gimbals with integrated high precision Hall sensor
• Lower latency with longer range and higher reliability at a faster data rate
• Built-in internal dual 2.4G band RF module
  • Supports 4 RF protocols: ACCST D16 / ACCESS / ELRS (compatible) / TW mode
    • TW mode
      • Heavy-duty RF module that provides two 2.4-G signals operating simultaneously
      • Remote control (tens of kilometers, range varies depending on RF power settings.)
      • Low latency (＜4 ms) with support for full telemetry
• Built-in 128 MB flash memory
• External TF card slot for memory expansion
• Haptic vibration alarms and voice outputs
• Supports recharging system for 2S Li batteries
• High speed wireless PARA training system
• ETHOS operating system

Specifications

• Dimensions: 197 x 131 x 68 mm (L x W x H).
• Weight: 392 g (without battery) / 459 g (with battery)
• Operating system: ETHOS
• Internal RF module: TW-ISRM
• Number of channels: 24 channels
• Operating voltage range: 6.5 ~ 8.4 V (2S Li-battery)
• Operating current: 330 mA at 7.4 V (typ.)
• Operating temperature: -10°C~60°C (14°F~140°F)
• Battery compartment size: 68 x 44.5 x 13 mm (L x W x H).
• Data transfer and charging interface: USB Type-C
• USB adapter voltage and current: 5 V + 0.2 V, >2.0 A
• Built-in flash memory: 128 MB (1 Gbit)
• LCD touch screen display resolution: 480 × 320
• Compatibility: ACCST D16 / ACCESS / ELRS (compatible) / TW modes

Contents

• TWIN Lite with battery (Mode 2)
• Soft Case
• Manual
