Product description

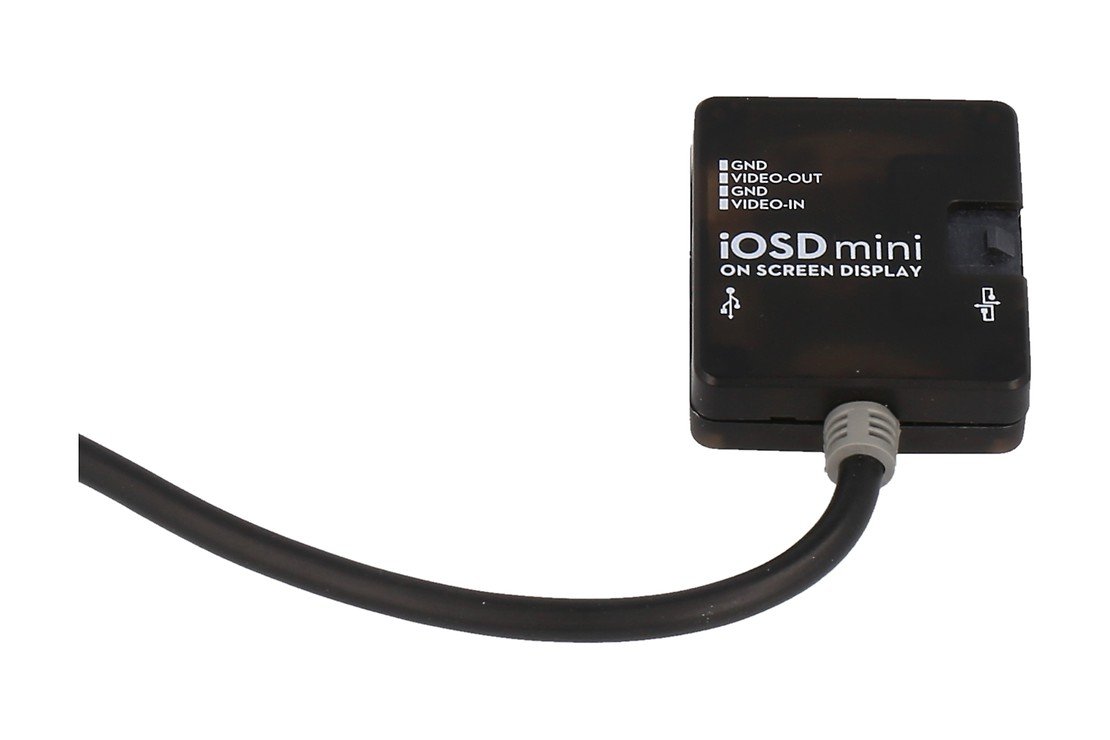

DJI iOSD Mini - real-time flight information on your monitor, the perfect FPV flight experience.

The DJI iOSD Mini is the logical extension of the DJI Naza-M flight location system in conjunction with video transmission. It is powered via the CAN bus from the flight controller with information and displays on the video image to the following information:

• Battery voltage (with undervoltage alarms)
• height
• Distance from the starting point
• Ground speed
• Orientation the copter (compass)
• Descent and climb rate (vario)
• Number of GPS satellites
• Tilt for aileron and elevator
• mode display
• Failsafeanzeige

Supports DJI professional autopilot systems

For improved flight performance the iOSD Mini should be used in conjunction with one of DJI autopilot systems as WooKong-M, -M or Naza Naza-M V2.

Accurate real-time flight data and video signal superimposing

The iOSD Mini can collect real-time video and flight data and informs you of the status information of the aircraft during flight.

Double video source inputs are switchable in flight

The iOSD Mini supports both NTSC and PAL video input sources. It automatically detects which source you use. Additionally, you can also change the input source with the R / C transmitter remotely. In this way the pilot can reach double video exchange during the flight, and set the various video input source for the aerial camera and FPV. This ensures that the direction of the aircraft is under control and that your plane will safely after the video footage back.

Technical specifications:

• Video input mode: PAL or NTSC
• Video Output: NTSC or PAL
• Temperature range: -20 ~ 60 ° C
• Dimensions: 35 x 35 x 9 mm
• Weight: 14g
• Current consumption: 180mA at 6V

Note:

The iOSD Mini is not compatible with the Phantom Connection Kit extension, it is necessary to have an PMUv2 needed.
