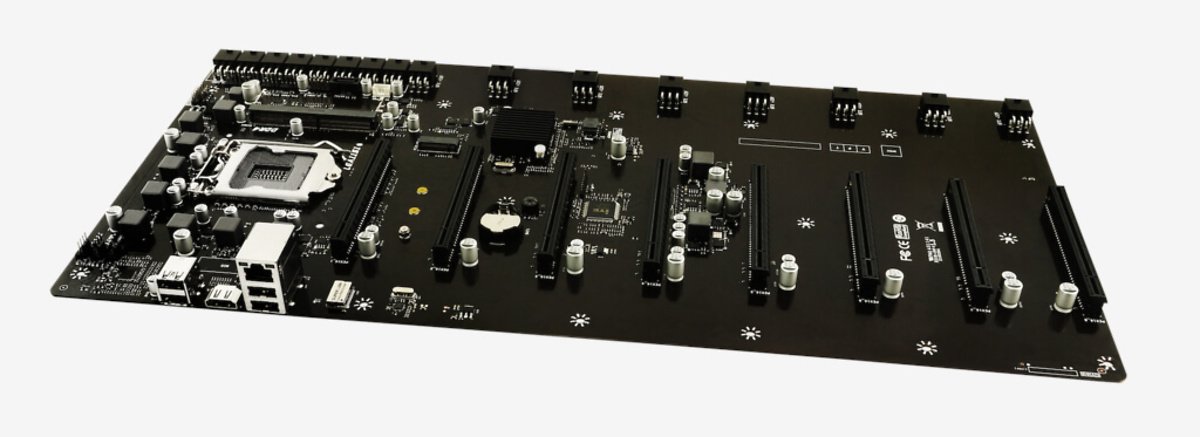

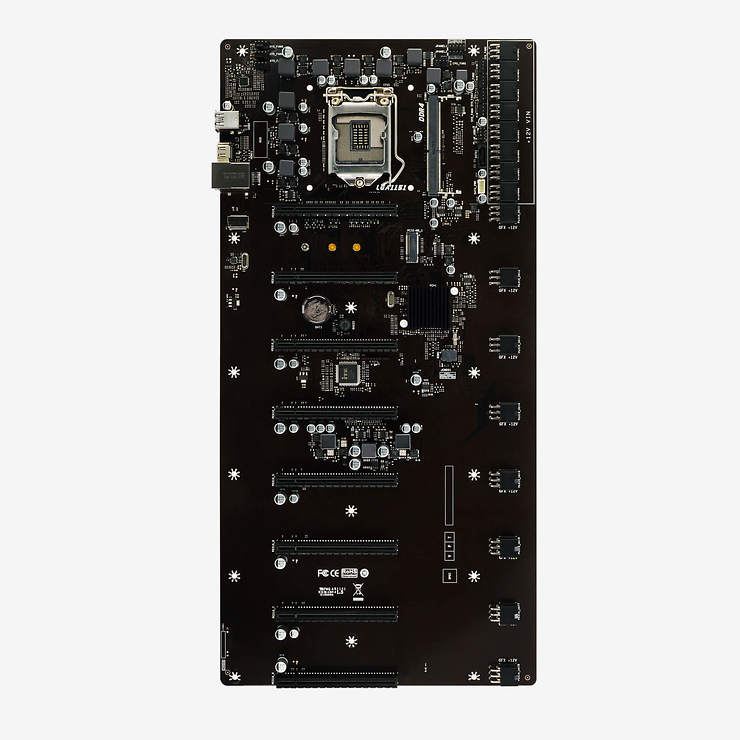

Biostar TB360-BTC D+ Mining Motherboard
Socket : 1151
| Chipset | Intel B360 |
| CPU SUPPORT | 8th and9th Gen Intel Core i7 LGA 1151 Processor 8th and9th Gen Intel Core i5 LGA 1151 Processor 8th and9th Gen Intel Core i3 LGA 1151 Processor 8th and9th Gen Intel Pentium LGA 1151 Processor 8th and9th Gen Intel Celeron LGA 1151 Processor |
| MEMORY | 1 x DDR4 SO-DIMM Memory Slot (Max Supports up to SO-DIMM DDR4-2133/2400/2666 up to 16GB Memory) |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 1 x SATA III Connector (6Gb/s) 1 x M.2 (M Key) 16Gb/s Connector:Support PCI-E & SATA SSD |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller |
| USB | 6 x USB 2.0 Port (4 on rear I/Os and 2 via internal header) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot(x16) 7 x PCI-E 2.0 x16 Slot(x1) |

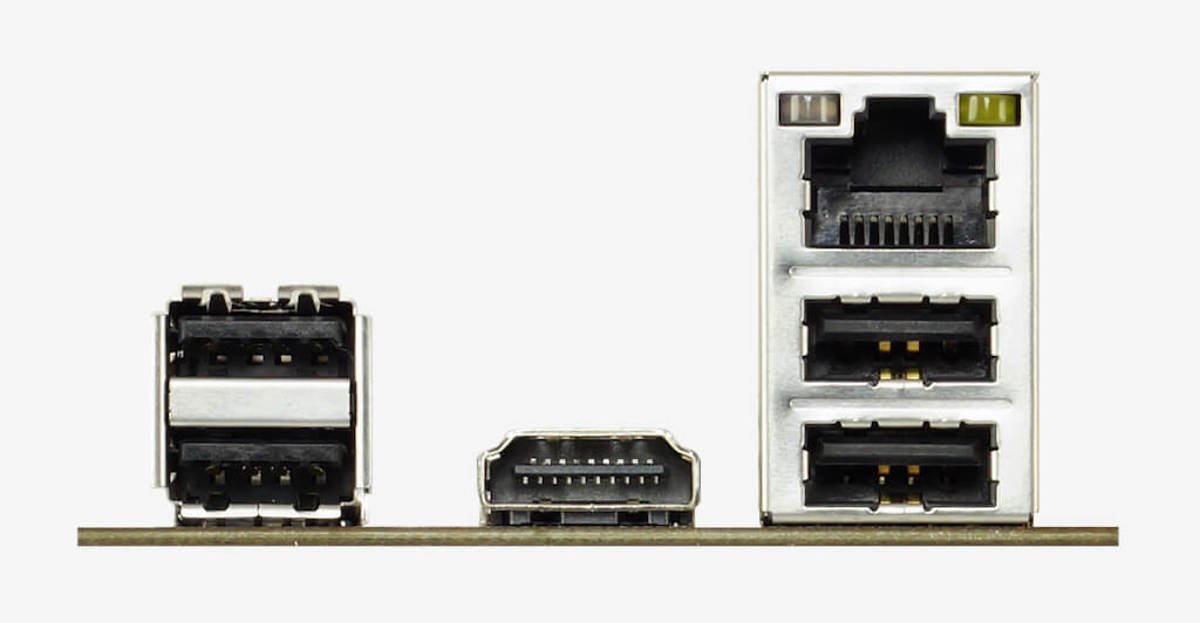

| REAR I/O | 4 x USB 2.0 Port 1 x HDMI Connector 1 x LAN Port |
| INTERNAL I/O | 1 x USB 2.0 Header(each header supports 2 USB 2.0 ports) 1 x SATA III Connector (6Gb/s) 1 x SATA Power Connector(for rear USB power enhancement) 1 x Front Panel Header 1 x CPU Fan Connector 7 x System Fan Connector 1 x Clear CMOS Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Special Form Factor Dimension: 48.5cm x 23.5cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(x64) |
| BUNDLE SOFTWARE | BullGuard Smart Speed LAN(Windows 7/ 8.1 only) |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| Order number | BIO-TB360-BTC-D |
|---|---|
| EAN | 4712960684904 |
| Manufacturer | Biostar |
