BetaFPV Pavo35 Whoop Racing FPV Quadcopter PNP

BetaFPV Pavo35 Whoop Racing FPV Quadcopter PNP

Product description

The BetaFPV Pavo35 represents a ground-breaking development in cinewhoops, designed by our product team after intensive study of aerodynamics. The specially designed whoop duct provides an impressive 400g of additional thrust, while a CNC machined 7075 aluminum Y-shaped standoff effectively eliminates in-flight distortion and flexing. This innovation allows the Pavo35 to accommodate both HD VTX and standard action cams, making it an extremely versatile product.

Features

• With a 9:4:1 thrust to weight ratio, this is a quad comparable to the performance of a 5" quad.
• 12 minutes of flight time allows the pilot to get maximum shots in one go.
• The innovative Y-shaped CNC metal support structure improves the structural strength, torsional resistance and vibration characteristics of the entire machine compared to aluminum columns, making it more responsive and smooth.
• The nozzle design, inspired by rocket engines, improves lateral stability and increases thrust by 400 g compared to models without propeller guards.

VTX system and action camera: The Pavo35 is compatible with a wide range of FPV cameras and HD VTX systems for versatile use. The integrated camera mount supports DJI O3, Walksnail and HD VTX installations as well as standard action cameras such as the GoPro 12, DJI Action 4 and Insta One R. The new shock-absorbing gimbal design effectively addresses the problem of video jelly and improves the stability of FPV cameras.

Pavo35 Frame Kit: The whoop duct of the Pavo35 can provide an additional 400g of thrust and uses a CNC machined 7075 aluminum Y-shaped standoff to eliminate distortion and bending during flight. The modular frame construction ensures a sleek appearance with no protruding wires, and the fixed power connector design allows for effortless one-handed connection.

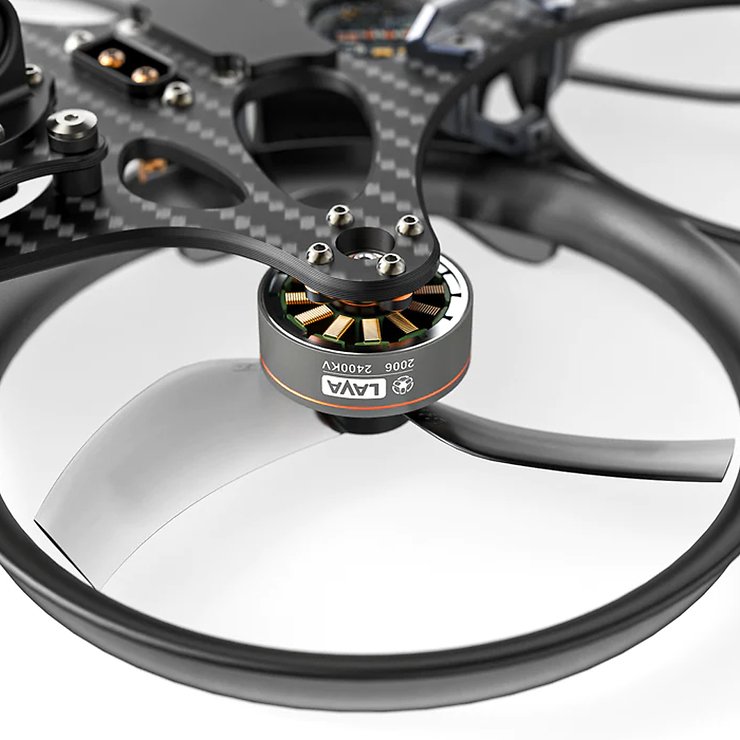

Power system: The LAVA Series 2006 brushless motors are designed for 6S 3.5'' quads and offer high agility and acceleration. Combined with the GemFan D90S 3-blade propellers and the F722 35A AIO V2 FC, the Pavo35 offers flexible control for competitive drone racing and professional filming.

Flight controller: The F722 35A AIO brushless flight controller features an F722 chip and offers excellent performance and high processing speed of up to 128k PWM frequency. With a 6-pin plug-and-play interface, it can be connected directly to HD Digital VTX without soldering.

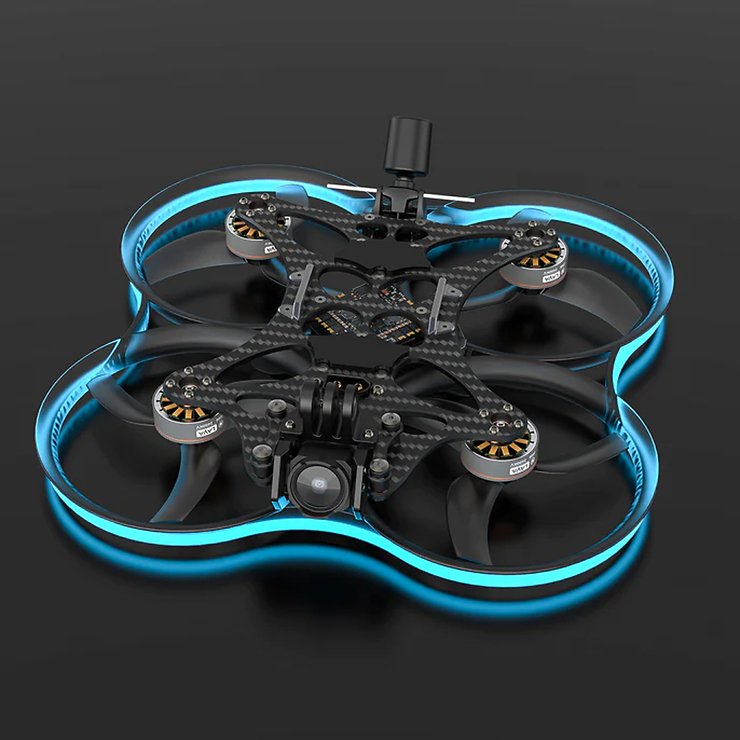

Shine in Night Cruise: The Pavo Series COB LED Strip is a 5V-powered LED strip that allows the COB light strip to be controlled via a wireless transmitter. This function enables flexible control of brightness and on/off status. The LED strip can be seamlessly switched on and off for different scenes such as entertainment, sports or movie making.

Technical specifications

• Wheelbase: 148 mm
• FC: F722 35A AIO V2
• Motor: 2006 - 2400KV
• Connection: XT60
• Frame: Pavo35 brushless whoop frame
• Flight time: 10-12 minutes
• Propeller: Gemfan D90-S
• Receiver: TBS Crossfire
• Recommended battery (not included): 6S 1050-1400mAh
