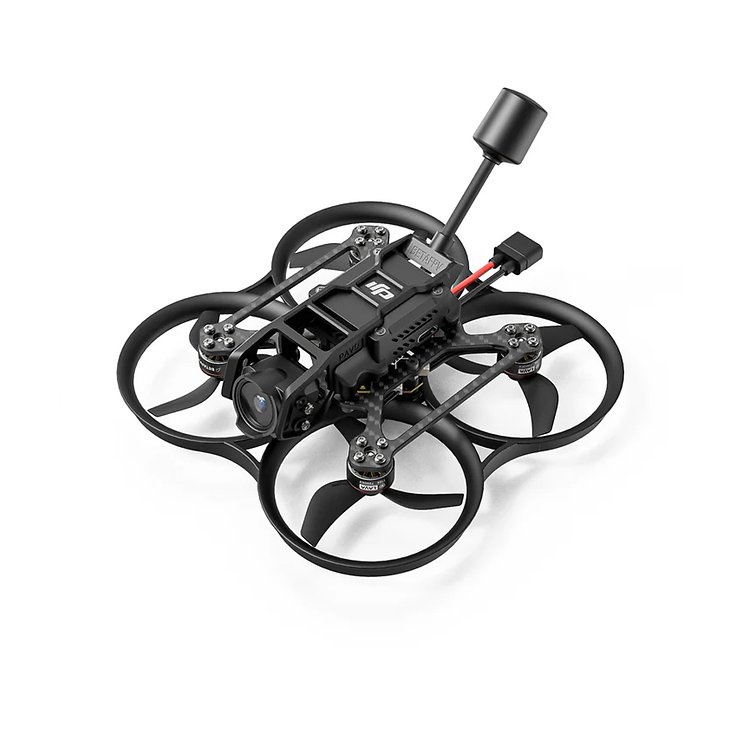

BetaFPV Pavo20 Pro HD DJI O3 FPV Brushless Cinewhoop ELRS

BetaFPV Pavo20 Pro HD DJI O3 FPV Brushless Cinewhoop ELRS

Product description

The Pavo20 Pro Brushless Whoop Quadcopter is the ideal choice for DJI pilots who want to enter the world of FPV flying. With a weight of less than 150g and a special design for freestyle shooting, this cinewhoop offers exceptional flight performance and image quality. Powered by the powerful LAVA Series 1104 | 7200KV brushless motors and Gemfan 2218 3-blade propellers designed specifically for this quadcopter, the Pavo20 Pro delivers impressive thrust and agility.

Features

• Freestyle optimization: The Pavo20 Pro is specifically designed for freestyle shooting and offers excellent performance and control.
• Powerful motors: The LAVA Series 1104 | 7200KV brushless motors together with the Gemfan 2218 3-blade propellers ensure maximum thrust and stable flight performance.
• Extended flight time: The combination with a LAVA 3S 550mAh 75C battery enables a flight time of up to 6 minutes and 40 seconds.
• Optimized design: The aerodynamic frame design increases thrust by 8-11% and enables even more precise control.
• HD VTX support: Compatible with various HD VTX systems, including DJI O3 Air Unit and Caddx Vista, for superior image quality.
• Easy installation: The frame requires only 8 screws to install the O3 Air Unit, making installation quick and easy.
• Classic Damper Design: The quadcopter features the proven Pavo Series Classic Rubber Damper Design, which ensures stable and vibration-free shots.

Technical data:

• Model: Pavo20 Pro Brushless Whoop Quadcopter
• Wheelbase: 93.7mm
• Weight (without battery, air unit): 66.3g
• Supported VTX: DJI O3 Air Unit, Caddx Vista Kit, RunCam Link (not included)
• Supported cameras: DJI O3 Cam, Caddx series, RunCam series 19mm/20mm (not included)
• Camera filter installation: Vertical
• Battery connection: XT30
• Battery slot: 20mm*unlimited height
• Recommended batteries: LAVA 3S 450mAh 75C, LAVA 3S 550mAh 75C, 3S 650mAh
• Flight control: F4 2-3S 20A AIO FC V1
• Motors: LAVA Series 1104 | 7200KV Brushless Motors
• Propeller: Gemfan 2218 3-blade propeller (1.5mm shaft)
• Flight time: 6'40'' (with LAVA 3S 550mAh battery)
• RX version: ELRS

HD Digital VTX System

The Pavo20 Pro supports various HD VTX systems, including the DJI O3 Air Unit, which offers up to 1080P resolution with dual-band transmission technology to ensure better signal stability. For DIY pilots, the customized HD VTX mounting bracket offers easy installation and opens up new possibilities for creative aerial photography.

Propulsion System:

Optimized specifically for freestyle, the propulsion system includes 2.2'' 3-blade propellers developed in collaboration with Gemfan and LAVA Series 1104 | 7200KV brushless motors that provide high RPM, maximum thrust and fast response time. The Pavo20 Pro achieves a thrust-to-weight ratio of over 5:1, resulting in a faster and more agile flying experience.

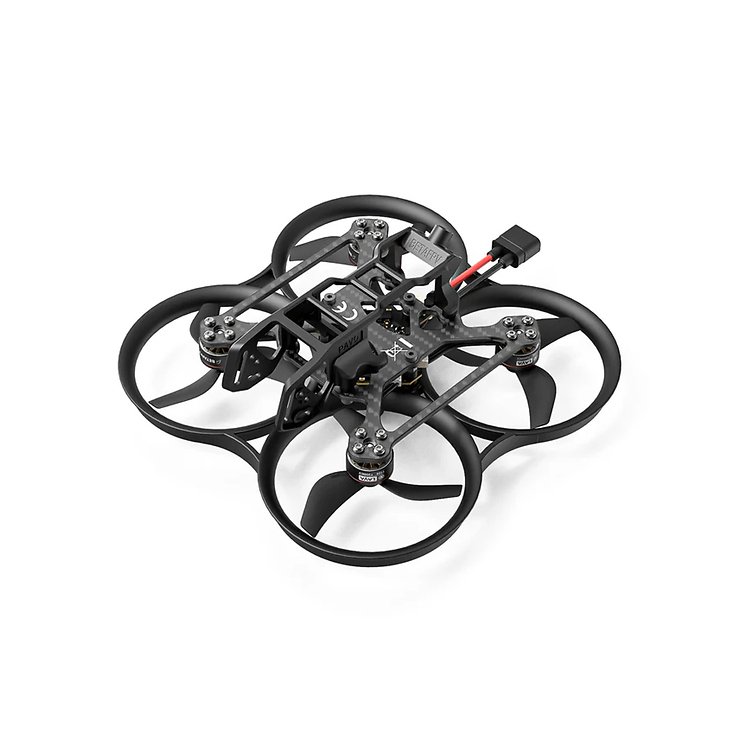

Pavo20 Pro Frame Kit:

The Pavo20 Pro Frame Kit is equipped with a crash-proof PA12 duct for added durability and thrust. The aerodynamic design improves thrust by up to 11% and works seamlessly with the powerful propulsion system to deliver unparalleled flight performance.

Exclusive to HD-VTX:

The Pavo20 Pro features 6 camera mounting holes, including 2 new holes for wide-angle shots that minimize camera shadows and allow for easy vertical installation of ND filters. The Pavo Series Classic Rubber Damper design guarantees smooth, shake-free HD images, even during demanding flights.
