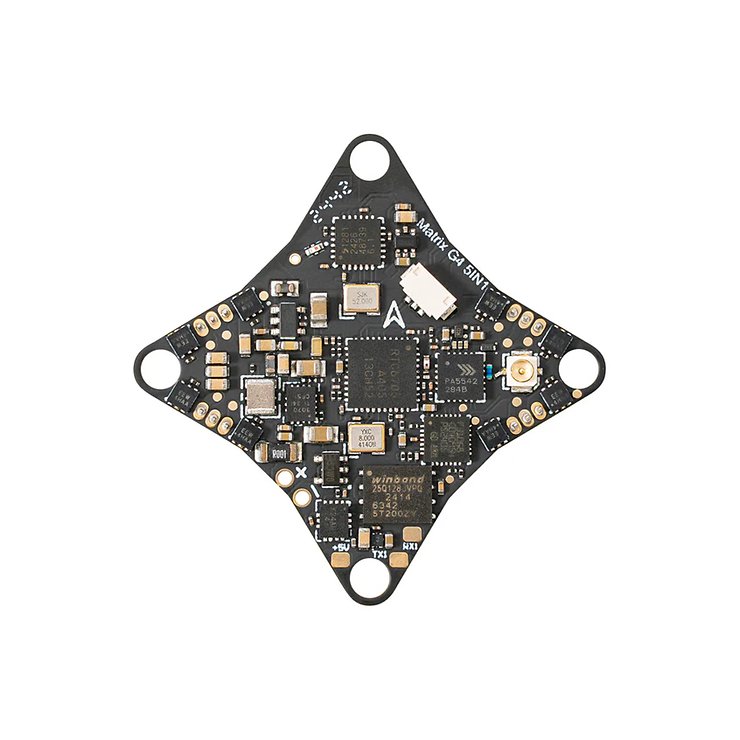

BetaFPV Matrix 1S Brushless Flight Controller 5in1 ELRS

BetaFPV Matrix 1S Brushless Flight Controller 5in1 ELRS

Product description

Experience a highly integrated solution for FPV drones with the Matrix 1S Brushless Flight Controller, ideal for beginners and experienced pilots. The robust 1mm board offers exceptional durability, while the integrated motor connectors make installation easy - no soldering required. With a powerful G473 processor, this flight controller offers an impressive 55% increase in performance compared to the F411 version, providing precise control for racing and freestyle flights. The high-quality 5.8GHz 400mW VTX technology also delivers stable, high-resolution video transmissions for the ultimate flying experience.

Special features

• Robust and durable: 1mm thick board for intensive training and improved stability, perfect for beginners and occasional users.
• Easy installation: No soldering required - ideal for beginners. Integrates FC+VTX+OSD+ESC+RX and standardized motor connections.
• Advanced performance: The G473 processor enables 55% faster processing power than the F411 for precise maneuvering.
• High quality video transmission: Supports up to 400mW for clear, stable and interference-free FPV footage.
• Beginner-friendly: Designed for new pilots, but also tested by experienced FPV professionals and optimized for competition standards.

Technical specifications

Flight Controller (FC):

• MCU: STM32G473CEU6
• Gyro: ICM42688P
• Black box memory: 16 MB
• Sensors: Voltage & current
• BEC: 5V, Max. 3A
• UART ports: UART1, UART2 (VTX), UART3 (RX), UART4
• OSD: AT7456E (BetaFlight OSD)
• ESC: 5A continuous
• RX: Serial ELRS 2.4GHz (V3.4.3)
• VTX: 5.8GHz, 48 channels, max. 400mW
• Firmware: Betaflight_4.5.0_BETAFPVG473
• Connections: USB (SH1.0-4pin), JST1.25 for motors, BT2.0 for battery
• Mounting size: 26 mm x 26 mm
• Weight: 3.92 ± 0.1 g

ESC:

• Power supply: 1S only
• Current: 5A continuous, 8A peak
• Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
• Protocol: DShot300, DShot600

VTX:

• Output power: 25/100/200/400 mW
• Frequency range: 5.8GHz, 48 channels, incl. raceband: 5658~5917MHz
• Modulation: FM
• Antenna: 50 Ω (connection required before switching on the control unit)
• Operating temperature: -10°C to +80°C
