BetaFPV F4 2-6S AIO Flight Controller ESC Toothpick 35A

BetaFPV F4 2-6S AIO Flight Controller ESC Toothpick 35A

Product description

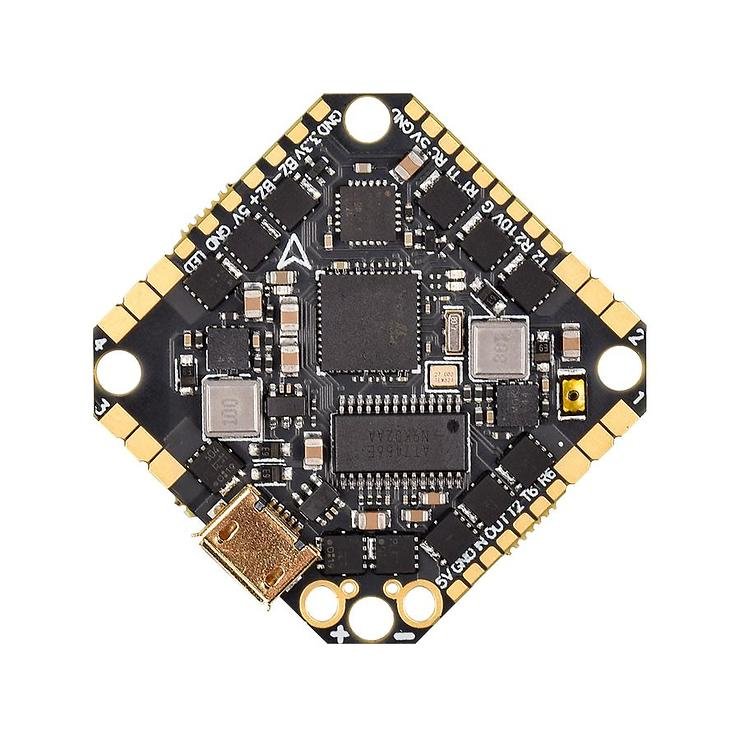

BetaFPV F4 2-6S AIO Flight Controller ESC Toothpick 35A

It's been a long time since we released the BETA test F4 35A AIO FC, thank you for all your love and waiting, after 4 months of continuous testing and improvement, the Toothpick F4 2-6S 35A AIO Brushless FC is finally officially released! It is the first BLHeli_32 ESC 35A all-in-one toothpick FC on the current market. With a continuous current of 35A (40A burst), this board offers tremendous performance and is ultra-lightweight lasting only 7g.

Technical Data

• Weight: 7g
• CPU: STM32F411CEU6
• Six-Axis: MPU6000 (SPI connection)
• Mounting holes: 26mm x 26mm
• Firmware version: BETAFPVF411 (BEFH)
• OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
• Built-in current sensor
• ESC Signal Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Receiver Support: Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver
• Input voltage: 2S-6S Lipo
• Continuous current: 35A
• Burst current: 40A
• ESC firmware: BLHELI_S 32
• Kondensator: CS|5*10*17mm|680μF|35V
• Power connector: XT60U 14AWG
• Recommended motors: 140X, 150X, 160X, 180X

Contents

• Toothpick F4 35A AIO 2-6S brushless flight controller
• Cable Pigtail (XT60U)
• Capacitor
• 4 x M2x10mm screws
• 8 x M2 nuts
• 4 x Anti-vibration Rubber Dampers
