BetaFPV F4 1S 5A AIO Brushless FC Flight Controller

BetaFPV F4 1S 5A AIO Brushless FC Flight Controller

Product description

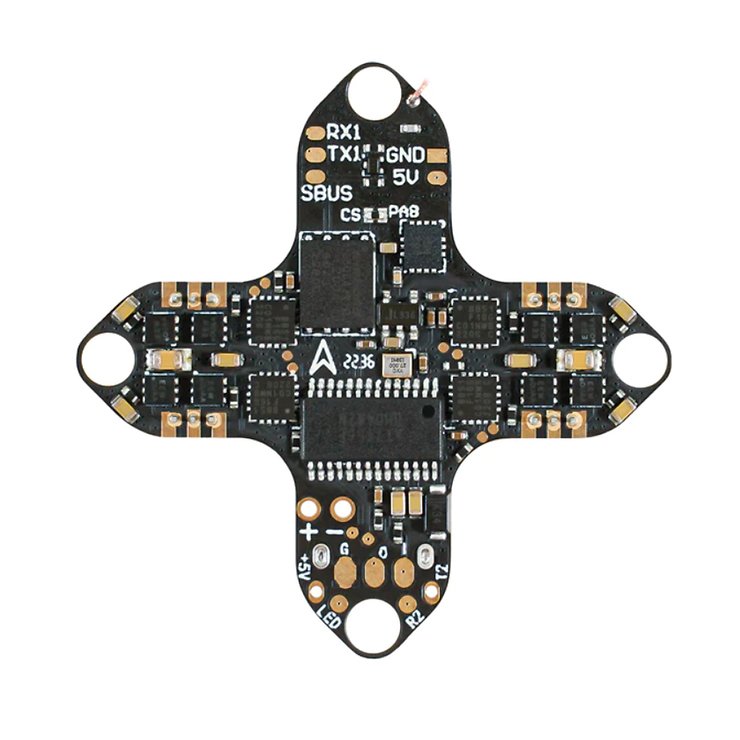

BetaFPV F4 1S 5A AIO Brushless FC Flight Controller

Are you looking for a powerful and easy-to-use flight controller (FC) for your FPV drone? Then the latest BETAFPV F4 1S FC is just what you need! With an STM32F411 processor and BMI270 six-axis accelerometer, this FC ensures excellent flight performance and precision. In addition, the SPI Frsky board has an SBUS port and a UART port available for the SBUS protocol receiver or other external receivers. With a weight of 3.64g as well as a 26 * 26mm mounting hole pitch, this FC is fully compatible with whoop frames on the market.

Moreover, this FC is equipped with 8MB flash memory chip specially designed for black box logging. It is an extremely powerful tool for tuning and troubleshooting your FPV drone.

Specifications FC

• CPU: STM32F411CEU6 (100MHZ)
• Six-axis: BMI270
• Built-in receiver: SPI CC2500 (Frsky)
• Receiver antenna: Line antenna
• FC size: 30*30mm
• Mounting hole spacing: 26*26mm
• Firmware version: Betaflight_4.2.11_BETAFPVF411RX (Frsky)
• OSD: Built-in Betaflight OSD
• Blackbox: 8MB
• Recommended VTX: >=200mW, like BETAFPV M03 350mW VTX or TBS Unify VTX
• Power cable: 55mm, with BT2.0 connector
• Weight: 3.64g (with motor connectors)

Specifications FC

• Power supply: 1S
• Current: 5A continuous load and peak load of 6A (3 seconds)
• ESC firmware: A_X_5_.HEX for Bluejay BB51 hardware
• Signal support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
