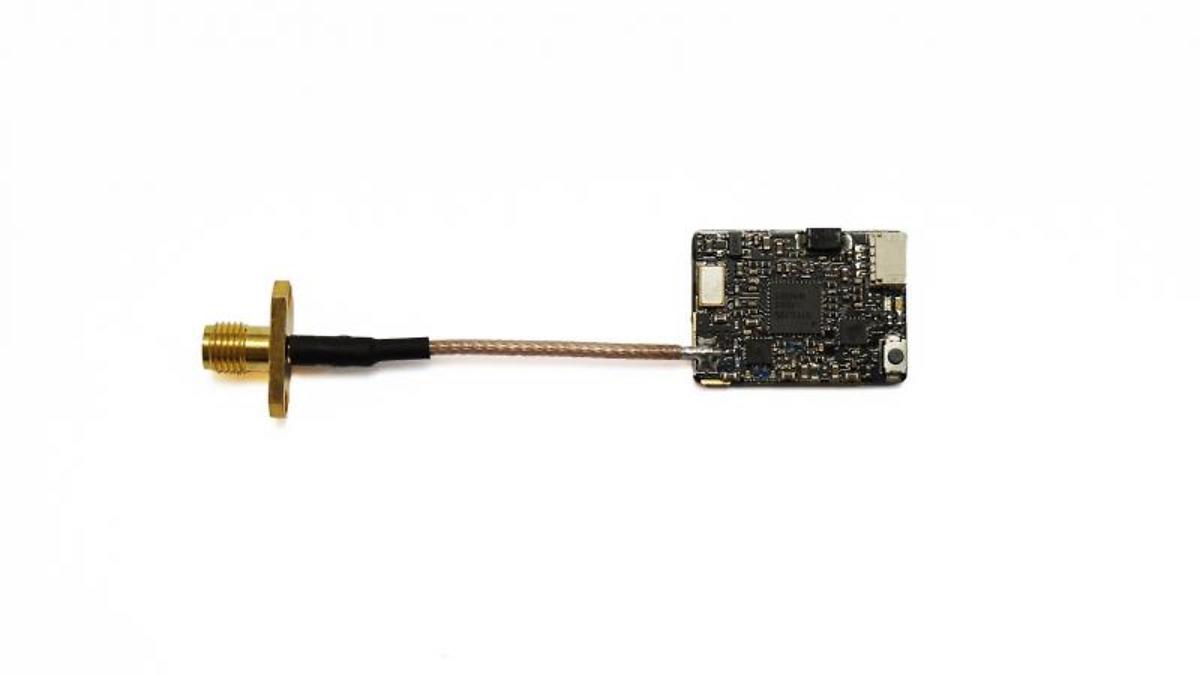

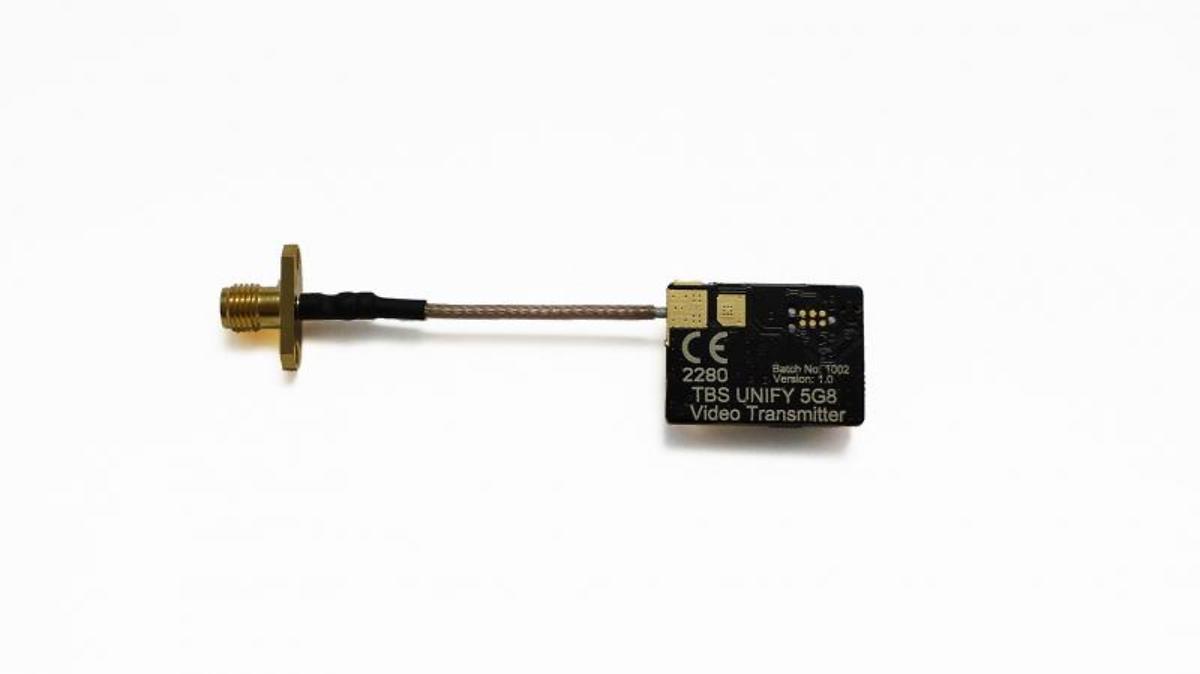

TBS Unify PRO 25mW 5.8 GHz A/V Sender

TBS Unify PRO 25mW 5.8 GHz A/V Sender

Produktbeschreibung

The smallest and lightest video transmitter on the market. Coincidence? Not at TBS!

With only 5g and a 17x25x4mm form factor, your quad will barely notice it's there.

PowerCube & CORE PRO ready

A recent hardware revision on the CORE PRO enables direct communication between OSD and video transmitter. Take advantage of changing bands and channels right through your remote control. Other cool stuff such as custom LED colors on your quad depending on the frequency you selected makes it easy to detect possible interference between two quads just by judging the LED color similarity. Together, the setup becomes better than the sum of its parts.

Say NO! to Dipswitches

Even though learning binary was a fun mind-game, in practice a single-push-button or OSD-controlled video transmitter is just much easier to operate. Gone are the days of video transmitter cards, stepping on people's channels by mistake, or a mismatch between your goggle and video transmitter frequencies.

Specifications

    Operating Voltage: 4.5 - 5.5V
    Supply current: 600mA
    Operating Temperature: watch for normal airflow
    Audio carrier Frequency: 6.5 MHz
    Video Input Impedance: 75 Ohm
    Weight: 5g (with SMA, without antenna)
    Antenna Connector: RP-SMA Female Socket with screw mounting holes
    Video Format: NTSC/PAL
    Output Power: 13dBm (25mW)

Included

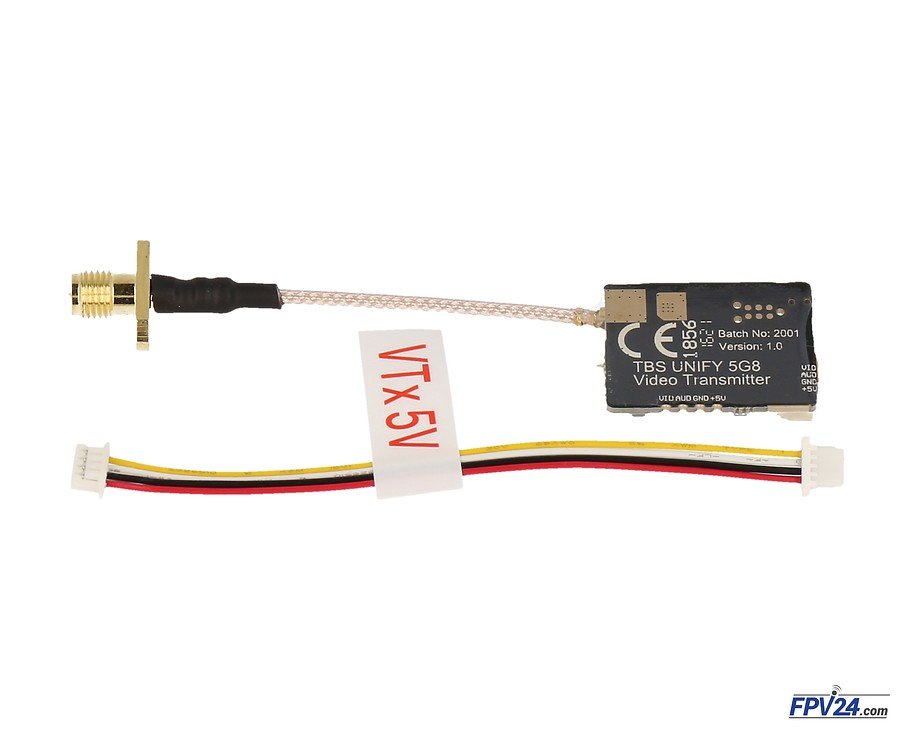

    TBS UNIFY 5G8 Video transmitter
    5V Video Transmitter pigtail cable
    TBS UNIFY Pro Manual
