Matek Systems PDB für Wings FCHUB-W

Matek Systems PDB für Wings FCHUB-W

Produktbeschreibung

Matek Systems PDB für Wings FCHUB-W

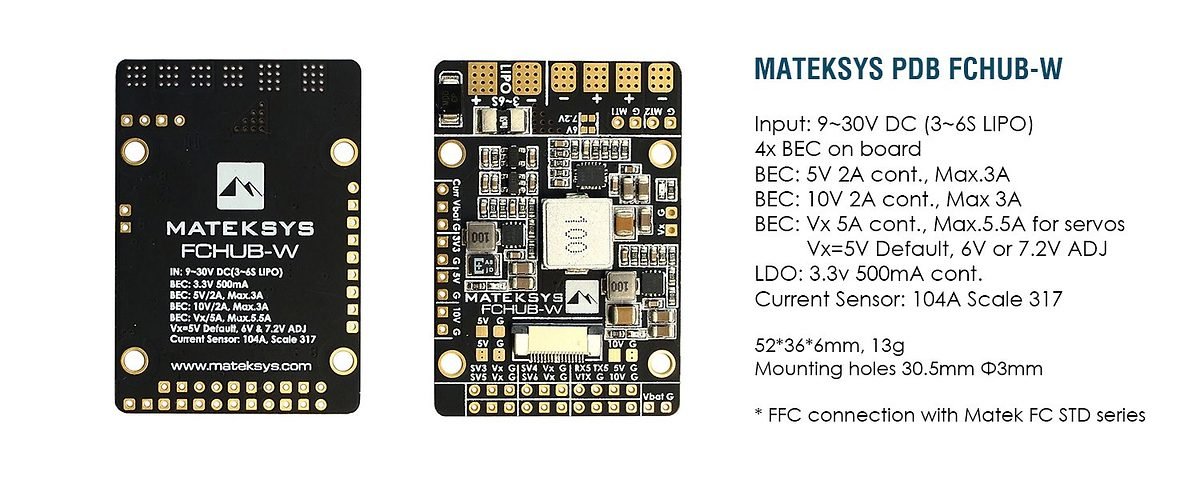

Spezifikationen

• Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
• 2x ESC power pads
• Current Senor: 104A, 3.3V ADC, Scale 317
• 4x BEC on board
• 3x LED indicators for 5V, 10V & Vx

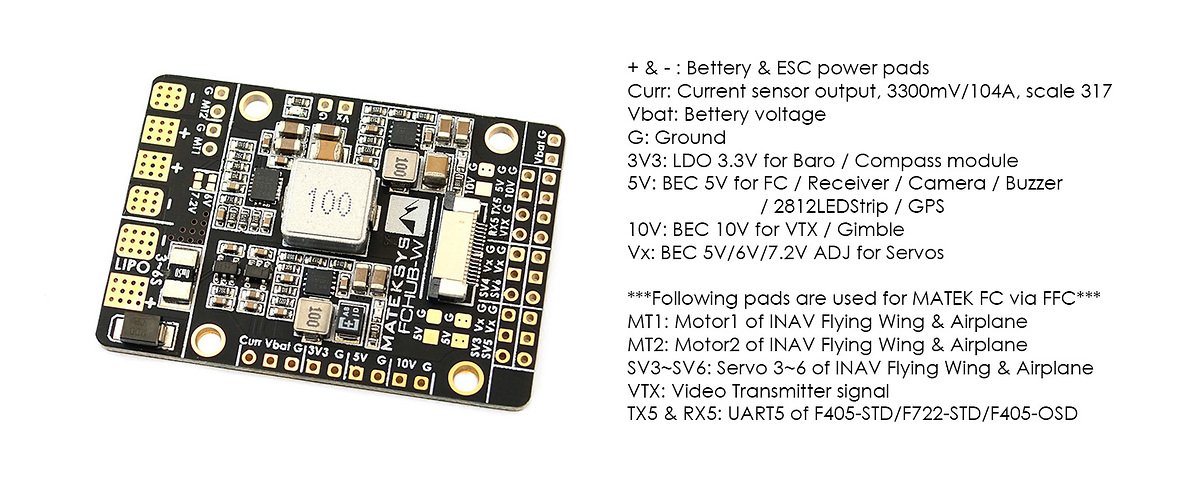

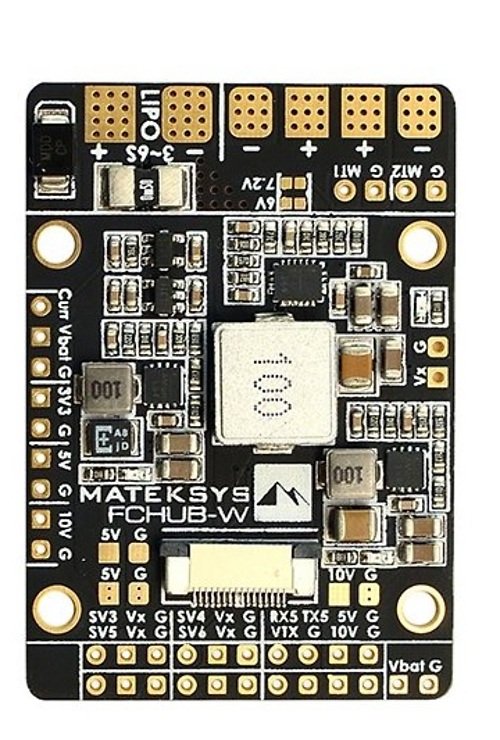

• Soldering Holes & Pads
• + & – : Bettery & ESC power pads
• Curr: Current sensor output
• Vbat: Bettery voltage
• G: Ground
• 3V3: LDO 3.3V
• 5V: BEC 5V
• 10V: BEC 10V
• Vx: BEC 5V/6V/7.2V ADJ

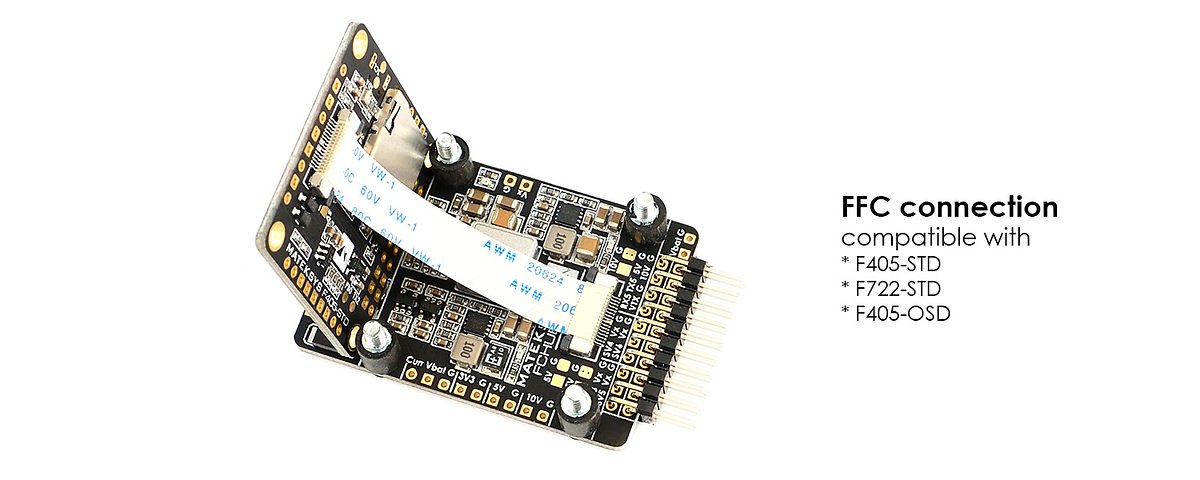

• FFC connection

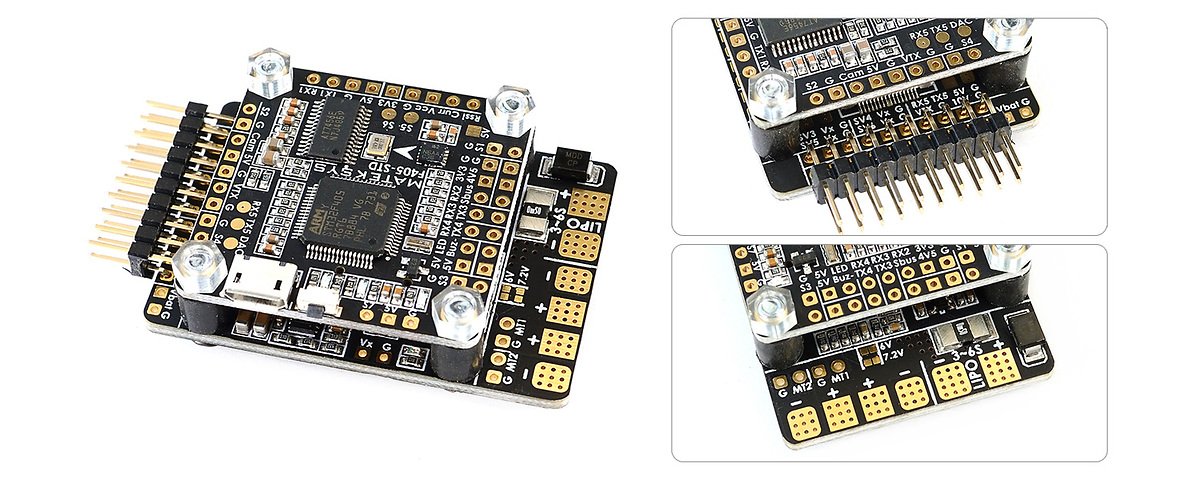

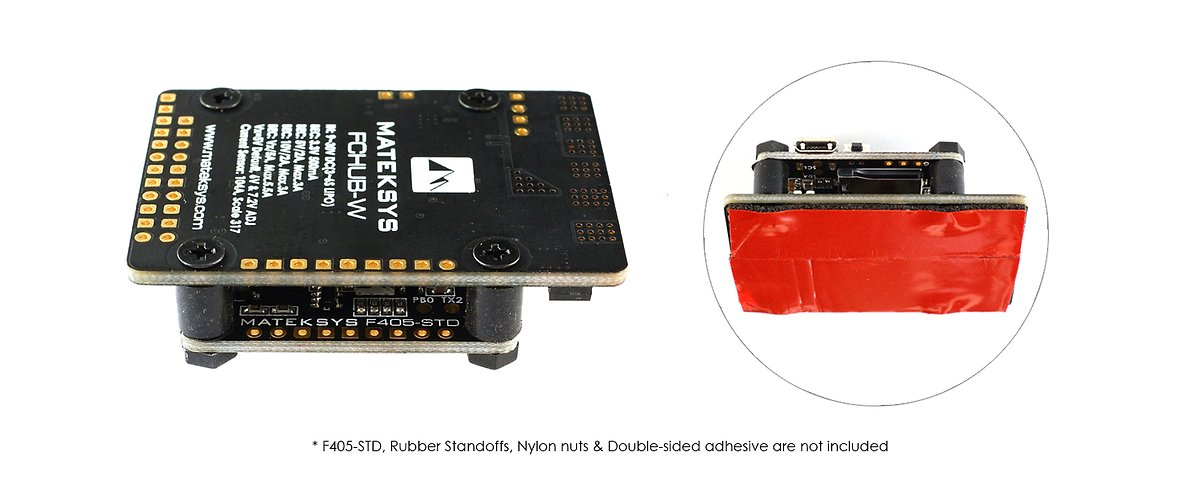

Compatible with MATEKSYS FC F405-STD, F722-STD, F405-OSD

• MT1: Motor1 of INAV Flying Wing & Airplane
• MT2: Motor2 of INAV Flying Wing & Airplane
• SV3~SV6: Servo 3~6 of INAV Flying Wing & Airplane
• VTX: Video Transmitter signal
• TX5 & RX5: UART5 of F405-STD/F722-STD/F405-OSD
• BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, GPS module

• DC/DC synchronous buck regulator
• Voltage: 5.0 +/- 0.1VDC
• Continuous current: 2 Amps, Max.3A
• Output Ripple: 20mV (VIn=24V, VOut=5V@2A load)
• Short-circuit tolerant (2 seconds)
• BEC 10V output

Designed for Video Transmitter, Gimble

• DC/DC synchronous buck regulator
• Voltage: 10.0 +/- 0.2VDC (Input voltage >11V)
• Continuous current: 2 Amps, Max.3A
• Output Ripple: 20mV (VIn=24V, VOut=10V@2A load)
• Short-circuit tolerant (2 seconds)

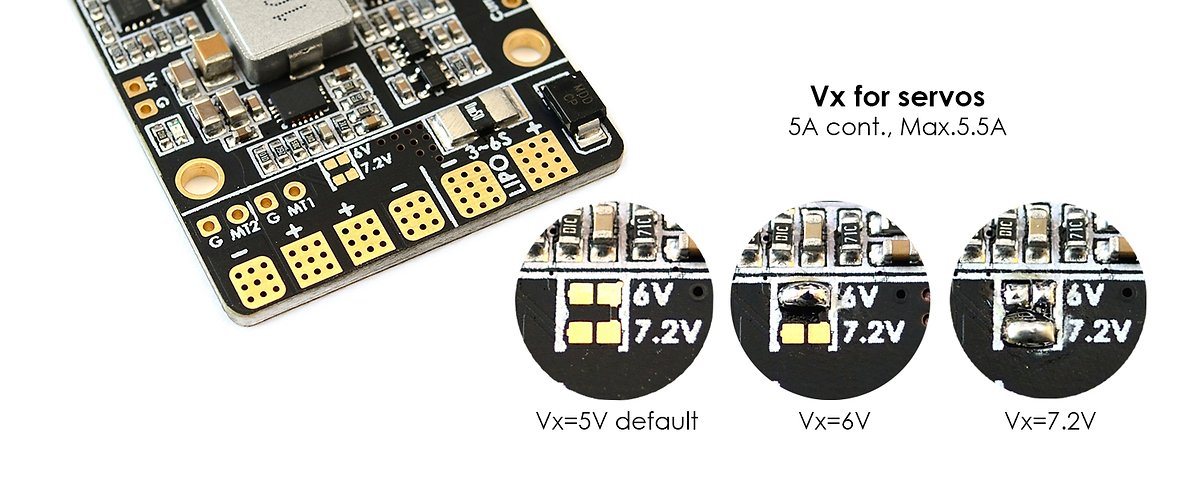

• BEC Vx output

Designed for Servos

• DC/DC synchronous buck regulator
• Voltage adjustable, 5V Default, 6V or 7.2V via jumper
• Continuous current: 5 Amps, Max.5.5A
• Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
• Short-circuit tolerant (2 seconds)
• BEC 3.3V output

Designed for Baro / Compass module and Spektrum RX

• Linear Regulator
• Continuous current: 500mA
• Physical

Size

• Mounting: 30.5 x 30.5mm, Φ3mm
• Dimensions: 52 x 36 x 6 mm
• Weight: 13g
