Matek RGB LED CIRCLE X8 16V

Matek RGB LED CIRCLE X8 16V

Produktbeschreibung

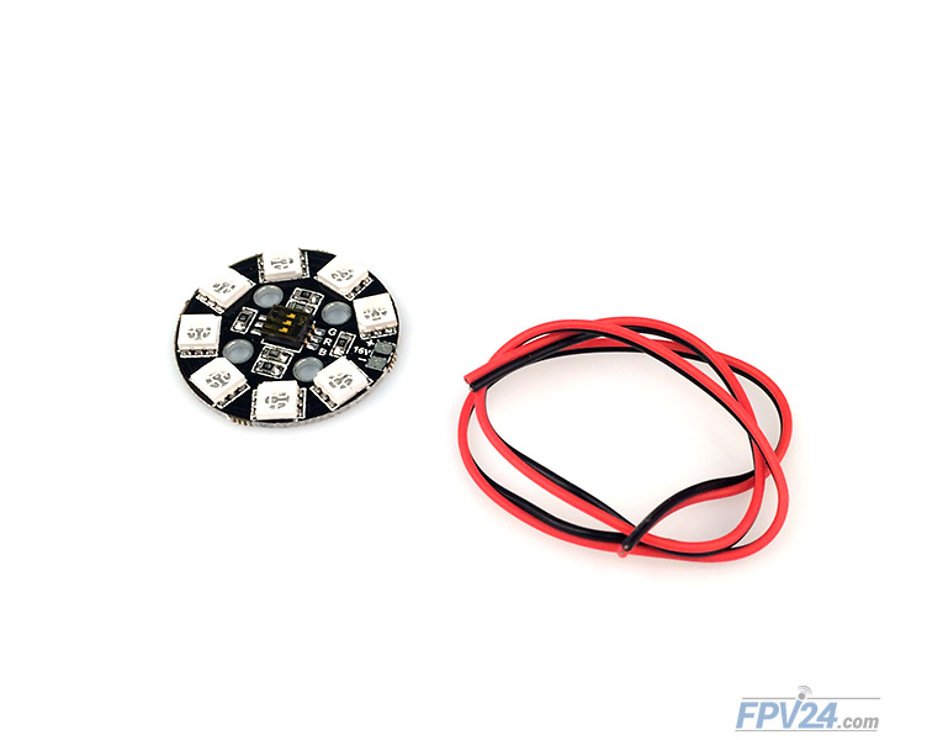

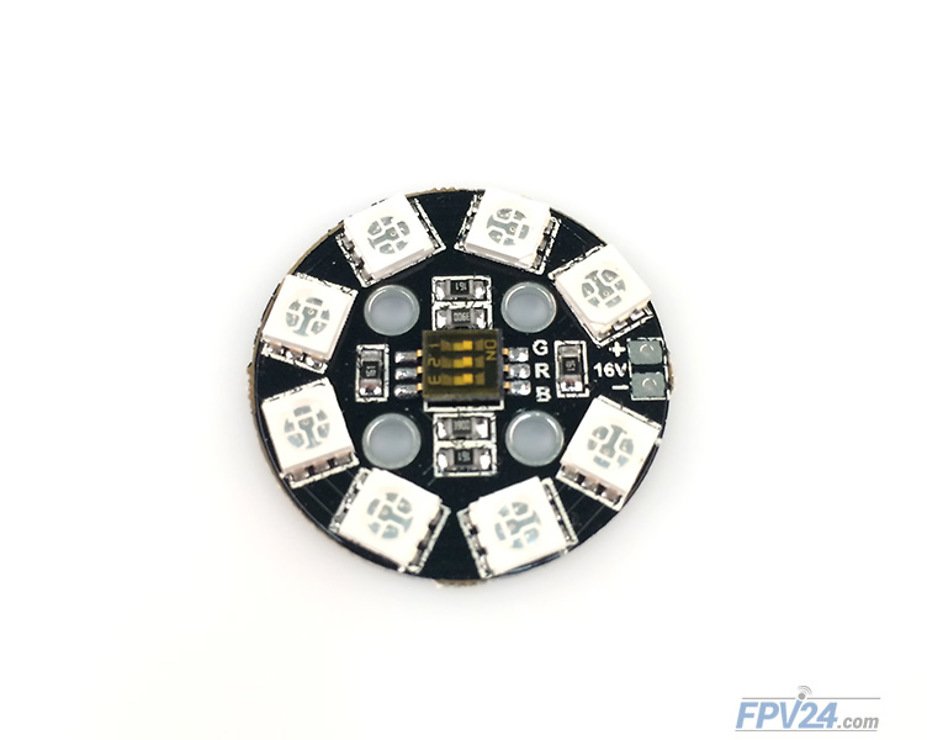

Matek RGB LED CIRCLE X8/16V comes with eight RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.

Specifications:

    INPUT: 14~16V DC, 4S LiPo
    Size: Circle  F30mm (10mm /F3mm Mounting)
    Select the colors with 3pin 1.25mm Code switch
    Weight: 2.5g
    Packing:  LED CIRCLE X8/16V, 1pc,   Cable 0.3m

Notes:

    Comes with a 0.3m long cable, users can cut it to a suitable length;
    Be ware of the positive and negative poles, as well as the insulation;
    Switch the related codes to ON, seven colors are selectable;
    The input is in a range of 14~16V DC, can be powered by 4S Lipo.

Selectable Colors & Power @12v:

    B ON =Blue, 0.64W, 0.04A
    R ON =Red, 0.64W, 0.04A
    G ON =Green, 0.64W, 0.04A
    B+R =Megenta, 1.28W, 0.08A
    B+G =Cyan, 1.28W, 0.08A
    R+G =Yellow, 1.28W, 0.08A
    B+R+G =White, 1.92W, 0.12A
