Matek RGB LED CIRCLE X6 12V

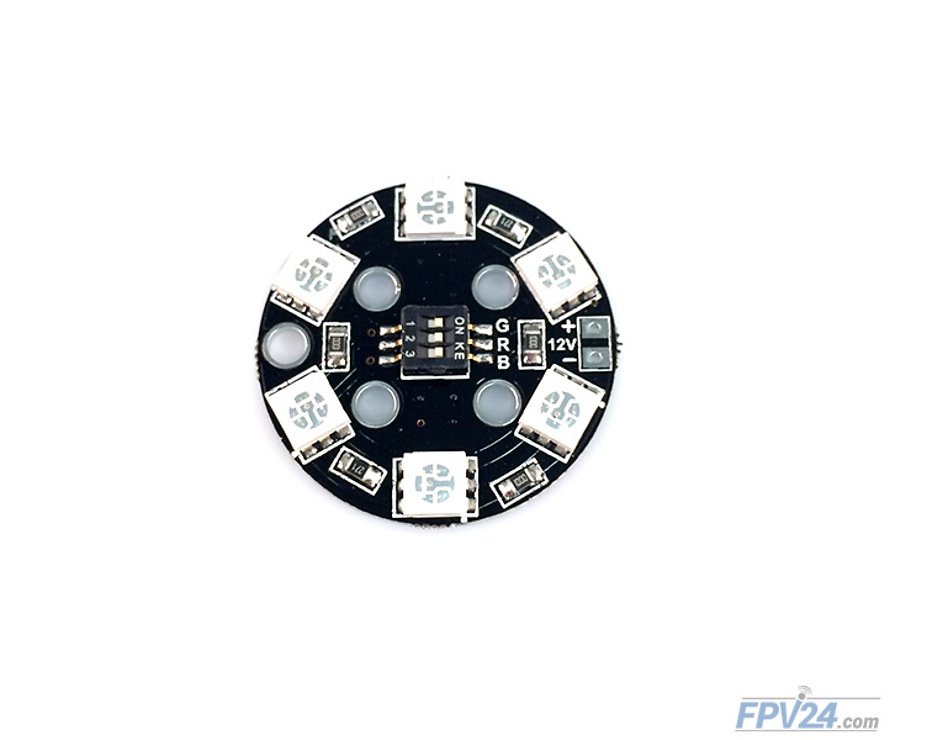

Matek RGB LED CIRCLE X6/12V comes with six RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.
Specifications:
INPUT: 10~13V DC, 3S LiPo,12VBEC
Size: Circle F30mm (10mm /F3mm Mounting)
Select the colors with 3pin 1.25mm Code switch
Weight: 2.5g

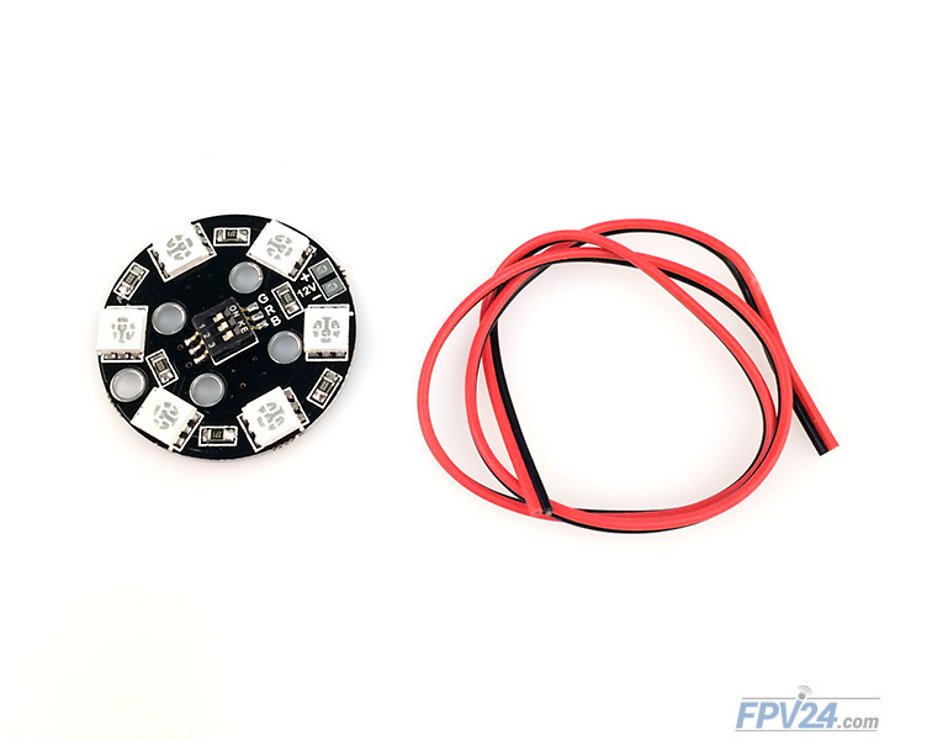

Packing: LED CIRCLE X6/12V, 1pc, Cable 0.3m
Notes:
Comes with a 0.3m long cable, users can cut it to a suitable length;
Be ware of the positive and negative poles, as well as the insulation;
Switch the related codes to ON, seven colors are selectable;
The input is in a range of 10~13V DC, can be powered by 3S Lipo or 12V BEC.
Selectable Colors & Power @12v:
B ON =Blue, 0.6W, 0.05A
R ON =Red, 0.6W, 0.05A
G ON =Green, 0.6W, 0.05A
B+R =Megenta, 1.20W, 0.10A
B+G =Cyan, 1.20W, 0.10A
R+G =Yellow, 1.20W, 0.10A
B+R+G =White, 1.80W, 0.15A
| Bestellnummer | MAT-003 |
|---|---|
| EAN | 4260449970890 |
| Hersteller | Matek Systems |
| Produktsicherheit | Hersteller: Kunming Jingwei Technology Co., Ltd No.18, Sijiaying, Panlong, Kunming, Yunnan, 650000 China E-Mail: service@mateksys.com Verantwortliche Person: meilon GmbH Konrad Zuse Ring 31 53424 Remagen Deutschland E-Mail: support@meilon.de Tel.: +49 (0)2642 / 40 52 88 0 |
